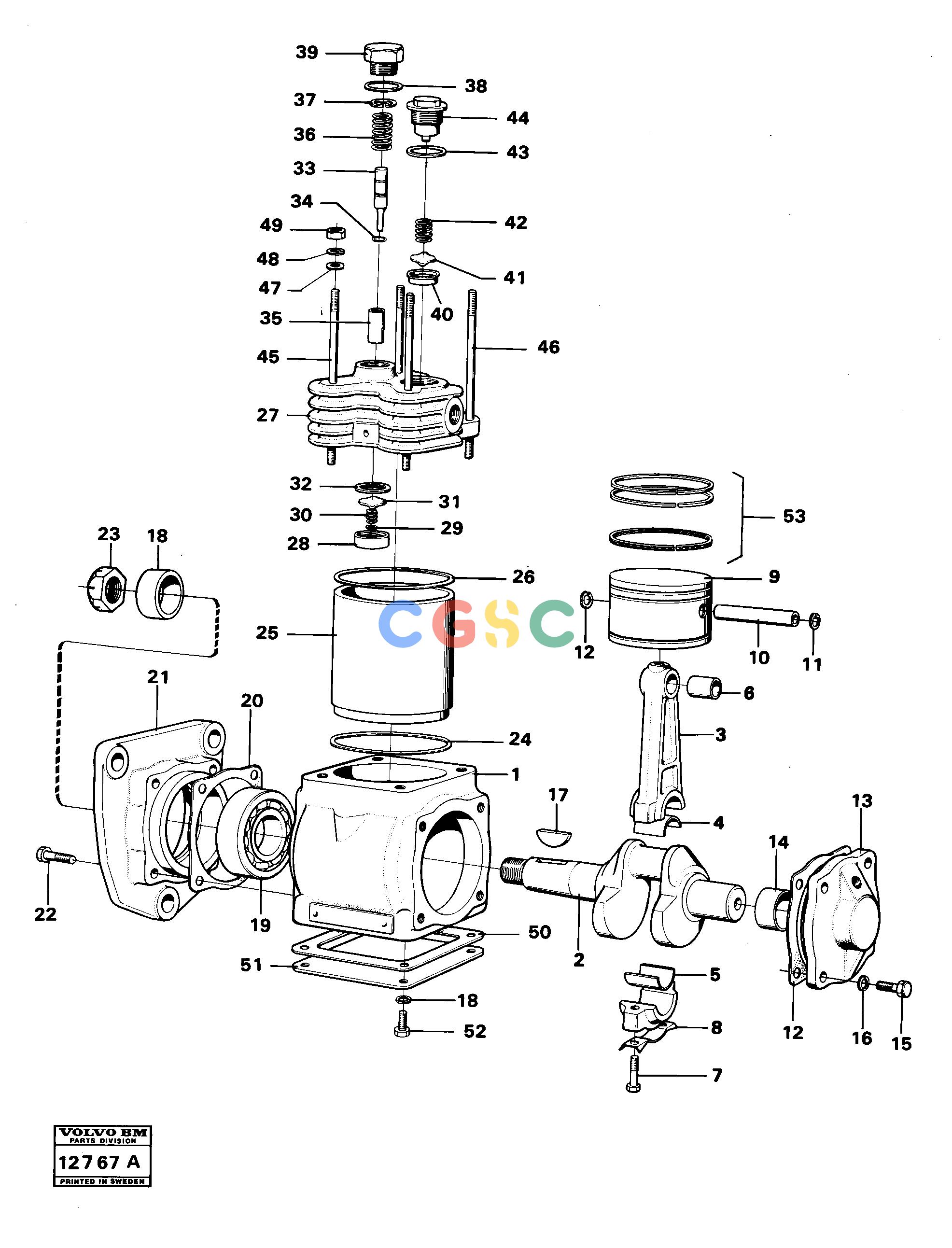

沃尔沃零件查询4300 Air compressor4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE787759
|
[0001] |
Compressor
|
|
| 1. |
|
[0001] |
Crankcase
|
|
| 2. |
VOE6648822
|
[0001] |
Crankshaft
|
|
| 3. |
VOE11992392
|
[0001] |
Connecting rod
|
|
| |
VOE6210507
|
[0001] |
Bearing shell
|
|
| 4. |
|
[0001] |
Bearing
|
|
| 5. |
|
[1] |
Bearing
|
|
| 6. |
|
[1] |
Bushing
|
|
| 7. |
|
[2] |
Bolt
|
|
| 8. |
VOE6638061
|
[1] |
Lock washer
|
|
| 9. |
VOE11994536
|
[1] |
Piston
|
|
| 10. |
|
[1] |
Piston pin
|
|
| 11. |
VOE6638048
|
[2] |
Lock ring
|
|
| 12. |
VOE11993185
|
[0001] |
Seal
|
|
| 13. |
VOE6648819
|
[0001] |
Cover
|
|
| 14. |
VOE6648819
|
[0001] |
Cover
|
|
| 15. |
VOE955525
|
[0004] |
Hexagon screw
|
|
| 16. |
VOE13941907
|
[0008] |
Washer
|
|
| 17. |
VOE910121
|
[0001] |
Woodruff key
|
|
| 18. |
VOE6648821
|
[0001] |
Spacer ring
|
|
| 19. |
VOE6638019
|
[0001] |
Bearing
|
|
| 20. |
VOE11993186
|
[0001] |
Seal
|
|
| 21. |
VOE6648832
|
[0001] |
Cap
|
|
| 22. |
VOE6648833
|
[0004] |
Screw
|
|
| 23. |
VOE6648824
|
[0001] |
Nut
|
|
| 24. |
VOE11993187
|
[0001] |
Seal
|
|
| 25. |
VOE6637992
|
[1] |
Cylinder
|
|
| 26. |
VOE11993188
|
[1] |
Gasket
|
|
| 27. |
VOE6648388
|
[1] |
Cylinder block
|
|
| 28. |
VOE6638034
|
[1] |
Spring retainer
|
|
| 29. |
VOE11999431
|
[1] |
Spacer
|
|
| 30. |
VOE6638031
|
[1] |
Spring
|
|
| 31. |
VOE6638032
|
[1] |
Valve
|
|
| 32. |
VOE6638033
|
[1] |
Valve seat
|
|
| 33. |
VOE6638035
|
[1] |
Valve
|
|
| 34. |
VOE6648829
|
[1] |
O-ring
|
|
| 35. |
VOE6638025
|
[1] |
Bushing
|
|
| 36. |
VOE6644031
|
[1] |
Spring
|
|
| 37. |
VOE6638038
|
[1] |
Lock ring
|
|
| 38. |
VOE13947628
|
[1] |
Plane gasket
|
|
| 39. |
VOE6638040
|
[1] |
Cover
|
|
| 40. |
VOE6648825
|
[1] |
Valve seat
|
|
| 41. |
VOE6638026
|
[1] |
Valve
|
|
| 42. |
VOE6638031
|
[1] |
Spring
|
|
| 43. |
VOE6648827
|
[1] |
O-ring
|
|
| 44. |
VOE6648826
|
[1] |
Plug
|
|
| 45. |
VOE6637994
|
[3] |
Stud
|
|
| 46. |
VOE6637993
|
[0001] |
Stud
|
|
| 47. |
VOE13940097
|
[0004] |
Washer
|
|
| 48. |
VOE13942336
|
[0004] |
Spring washer
|
|
| 49. |
VOE13955848
|
[0004] |
Nut
|
|
| 50. |
VOE11993184
|
[0001] |
Seal
|
|
| 51. |
VOE6638004
|
[0001] |
Cap
|
|
| 52. |
VOE103755
|
[0004] |
Screw
|
|
| 53. |
VOE1696349
|
[0001] |
Piston ring
|
|
| |
VOE6648831
|
[1] |
Repair kit
|
|
