沃尔沃零件查询4300 Regulator4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
310 次

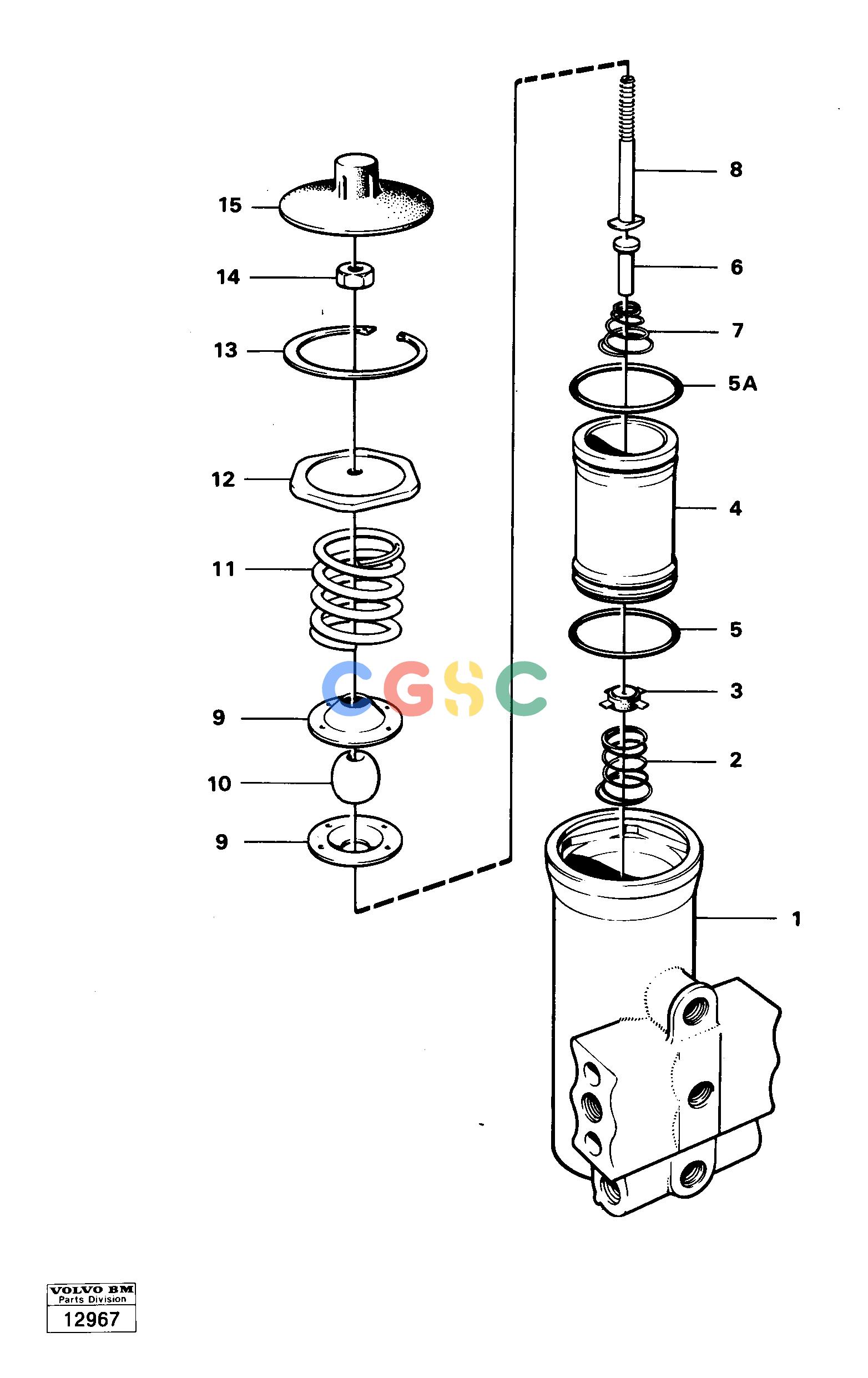

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE339793
|
[0001] |
Piston
|
|
| 5. |
VOE6648940
|
[0002] |
O-ring
|
|
| 5A. |
VOE6645225
|
[0002] |
Repair kit
|
|
| 6. |
VOE339797
|
[0001] |
Valve
|
|
| 7. |
VOE6645225
|
[0001] |
Repair kit
|
|
| 8. |
VOE7339799
|
[0001] |
Adjusting screw
|
|
| |
VOE1503492
|
[0001] |
Regulator
|
|
| 9. |
VOE339800
|
[0002] |
Spring seat
|
|
| 10. |
VOE339801
|
[0001] |
Spacer sleeve
|
|
| 11. |
VOE339802
|
[0001] |
Spring
|
|
| 12. |
VOE7339803
|
[0001] |
Seat
|
|
| 13. |
VOE7339804
|
[0001] |
Snap ring
|
|
| 14. |
VOE955833
|
[0001] |
Hexagon nut
|
|
| 15. |
VOE7339805
|
[0001] |
Cover
|
|
| |
VOE6645225
|
[0001] |
Repair kit
|
|
| 1. |
|
[0001] |
Housing
|
|
| 2. |
VOE7339796
|
[0001] |
Spring
|
|
| 3. |
VOE7339795
|
[0001] |
Valve washer
|
|
