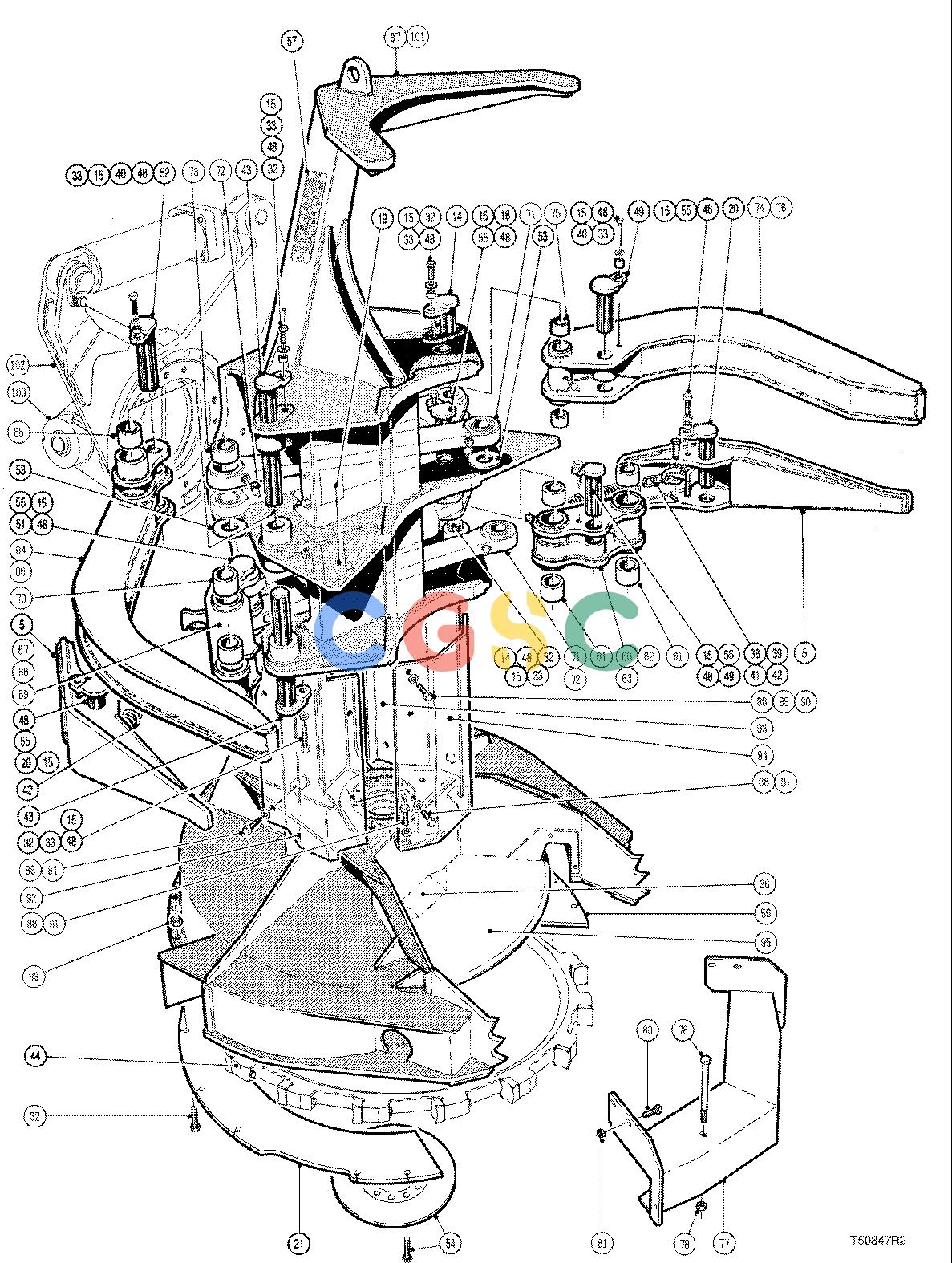

约翰迪尔零件查询20``STD - ATTACHMENTS FELLING HEAD 20`` ( 960227 - ) 4534-010/13 [4534-010/13]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
369 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
701149500
|
[1] |
FELLING HEAD - USED WITH WRIST
|
|
| 5. |
700432200
|
[2] |
ARM -
|
|
| 9. |
810084300
|
[10] |
BOLT 3/4-10UNCX1-3/4 -
|
|
| 14. |
700408300
|
[2] |
PIN -
|
|
| 15. |
700041400
|
[12] |
SPACER -
|
|
| 18. |
700055000
|
[2] |
PIN -
|
|
| 19. |
---------
|
[2] |
CYLINDER-CLAMP - SECT. 2800
|
|
| 20. |
700651700
|
[2] |
PIN -
|
|
| 21. |
F285580
|
[1] |
PLATE -
|
|
| 32. |
810084500
|
[23] |
BOLT 3/4-10UNCX2-1/4 -
|
|
| 33. |
810044600
|
[23] |
LOCKNUT 3/4-10UNC -
|
|
| 38. |
700576600
|
[2] |
PIN -
|
|
| 39. |
700588800
|
[2] |
SHACKLE -
|
|
| 40. |
810084600
|
[2] |
BOLT 3/4-10UNCX2-1/2 -
|
|
| 41. |
700422000
|
[2] |
CHAIN -
|
|
| 42. |
700061100
|
[2] |
SPRING -
|
|
| 43. |
700408400
|
[2] |
PIN -
|
|
| 44. |
---------
|
[1] |
DISC BLADE - SECT. 4500
|
|
| 48. |
810002100
|
[6] |
WASHER 3/4 -
|
|
| 49. |
700676500
|
[2] |
PIN -
|
|
| 51. |
700676800
|
[1] |
PIN -
|
|
| 52. |
700677100
|
[1] |
PIN -
|
|
| 53. |
700482700
|
[2] |
SPACER -
|
|
| 54. |
---------
|
[1] |
DISC SAW DRIVE - SECT. 4500
|
|
| 55. |
810084200
|
[6] |
BOLT 3/4-10UNCX1-1/2 -
|
|
| 56. |
700431100
|
[1] |
PLATE -
|
|
| 57. |
---------
|
[1] |
DECALS - SECT. 7500
|
|
| 60. |
700566200
|
[1] |
ARM -
|
|
| 61. |
700052300
|
[4] |
BUSHING -
|
|
| 62. |
810044000
|
[1] |
GREASE FIT 1/8-27PTF -
|
|
| 63. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
| 64. |
700270900
|
[1] |
ARM -
|
|
| 65. |
700052300
|
[2] |
BUSHING -
|
|
| 66. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
| 67. |
700566100
|
[1] |
ARM -
|
|
| 68. |
810044000
|
[1] |
GREASE FIT 1/8-27PTF -
|
|
| 69. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
| 70. |
700052300
|
[4] |
BUSHING -
|
|
| 71. |
700425200
|
[2] |
LINK -
|
|
| 72. |
810000100
|
[2] |
GREASE FITTING.N610 -
|
|
| 73. |
810106700
|
[2] |
BUSHING -
|
|
| 74. |
700275200
|
[1] |
ARM -
|
|
| 75. |
700052300
|
[2] |
BUSHING -
|
|
| 76. |
810000100
|
[1] |
GREASE FITTING.N610 -
|
|
| 77. |
700377200
|
[1] |
GUARD - SAW
|
|
| 78. |
810885300
|
[1] |
BOLT 3/4-10UNC 7 -
|
|
| 79. |
810133800
|
[1] |
NUT 3/4-10UNC -
|
|
| 80. |
810082300
|
[4] |
BOLT 1/2-13UNCX1-1/2 -
|
|
| 81. |
810087700
|
[4] |
NUT 1/2-13UNC -
|
|
| 87. |
700254500
|
[1] |
FELLING HEAD -
|
|
| 88. |
810011600
|
[14] |
WASHER 1/2 -
|
|
| 89. |
810087700
|
[2] |
NUT 1/2-13UNC -
|
|
| 90. |
810082300
|
[2] |
BOLT 1/2-13UNCX1-1/2 -
|
|
| 91. |
810082100
|
[10] |
BOLT 1/2-13UNCX1 -
|
|
| 92. |
700430100
|
[1] |
GUARD, RH - R.H
|
|
| 93. |
700430200
|
[1] |
GUARD, LH - L.H
|
|
| 94. |
701437300
|
[1] |
GUARD -
|
|
| 95. |
F276640
|
[1] |
PLATE -
|
|
| 96. |
F276645
|
[1] |
PLATE -
|
|
| |
700767000
|
[1] |
FELLING HEAD - WITHOUT WRIST INCL. ITEMS 3-96
|
|
| 101. |
700767100
|
[1] |
FELLING HEAD -
|
|
| 102. |
---------
|
[1] |
WRIST
|
|
| 103. |
---------
|
[1] |
BOOM ADAPTOR
|
|
