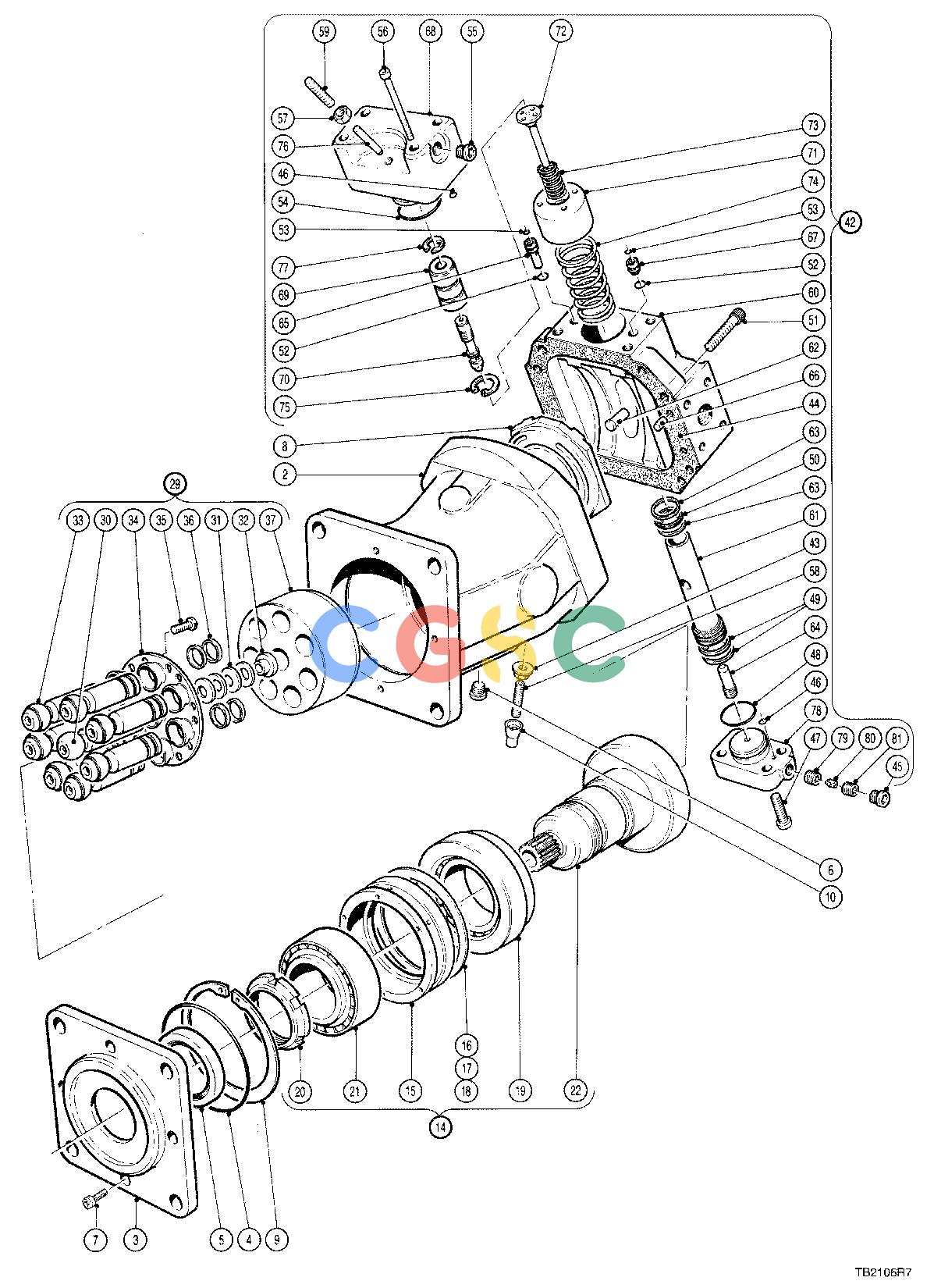

约翰迪尔零件查询20``STD - ATTACHMENTS MOTOR DISC SAW 20`` HEAD ( 62001 - ) 2250-016/10 [2250-016/10]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
573 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
700594500
|
[1] |
MOTOR -
|
|
| 2. |
790077400
|
[1] |
HOUSING -
|
|
| 3. |
790077500
|
[1] |
COVER -
|
|
| 4. |
810167800
|
[1] |
O-RING -
|
|
| 5. |
842539200
|
[1] |
SEAL -
|
|
| 6. |
700613400
|
[1] |
PLUG -
|
|
| 7. |
811048800
|
[4] |
BOLT M8X1.25-20MM -
|
|
| 8. |
842687300
|
[1] |
PLATE -
|
|
| 9. |
790022100
|
[1] |
RETAINING RING -
|
|
| 10. |
---------
|
[1] |
Cap
|
|
| 14. |
842685500
|
[1] |
DRIVE SHAFT -
|
|
| 15. |
790077600
|
[1] |
RETAINER -
|
|
| 16. |
790077700
|
|
SHIM,0.1MM -
|
|
| 17. |
790077800
|
|
SHIM,0.3MM -
|
|
| 18. |
790077900
|
|
SHIM,0.5MM -
|
|
| 19. |
790078000
|
[1] |
BEARING-ROLLER -
|
|
| 20. |
842601300
|
[1] |
NUT -
|
|
| 21. |
790078100
|
[1] |
BEARING-ROLLER -
|
|
| 22. |
790078200
|
[1] |
DRIVE SHAFT -
|
|
| 29. |
700613800
|
[1] |
ROTARY -
|
|
| 30. |
790078300
|
[1] |
PIN -
|
|
| 31. |
790078400
|
[4] |
WASHER -
|
|
| 32. |
790078500
|
[1] |
COLLAR -
|
|
| 33. |
790078600
|
[7] |
PISTON -
|
|
| 34. |
790078800
|
[1] |
PLATE -
|
|
| 35. |
790078900
|
[14] |
SCREW -
|
|
| 36. |
790018400
|
[14] |
RING -
|
|
| 37. |
790079000
|
[1] |
CYLINDER -
|
|
| 42. |
790020500
|
[1] |
REGULATOR -
|
|
| 43. |
842736300
|
[1] |
NUT -
|
|
| 44. |
790079100
|
[1] |
GASKET -
|
|
| 45. |
700613600
|
[1] |
PLUG -
|
|
| 46. |
840087600
|
[3] |
O-RING -
|
|
| 47. |
810988900
|
[4] |
BOLT M12X35 -
|
|
| 48. |
790079200
|
[1] |
O-RING -
|
|
| 49. |
842601500
|
[2] |
RETAINING RING -
|
|
| 50. |
842601600
|
[1] |
SEAL -
|
|
| 51. |
811360500
|
[8] |
CPSCREW-M16X2.0-45mm -
|
|
| 52. |
810059800
|
[2] |
O-RING -
|
|
| 53. |
842543800
|
[2] |
O-RING -
|
|
| 54. |
790079300
|
[2] |
O-RING -
|
|
| 55. |
810605700
|
[1] |
PLUG -
|
|
| 56. |
811351600
|
[4] |
BOLT M8-1.25X40 -
|
|
| 57. |
842736400
|
[1] |
NUT -
|
|
| 58. |
842688600
|
[1] |
SCREW, ADJUSTING - M12X100MM
|
|
| 59. |
842541700
|
[1] |
SCREW, ADJUSTING - M6X30MM
|
|
| 60. |
790079400
|
[1] |
PLATE -
|
|
| 61. |
790074100
|
[1] |
PISTON -
|
|
| 62. |
790079500
|
[1] |
TRUNNION -
|
|
| 63. |
790079600
|
[2] |
BACK-UP RING -
|
|
| 64. |
790079700
|
[1] |
PIN -
|
|
| 65. |
842544000
|
[1] |
GUIDE -
|
|
| 66. |
790079800
|
[2] |
PIN -
|
|
| 67. |
790034900
|
[1] |
PLUG -
|
|
| 68. |
790079900
|
[1] |
COVER -
|
|
| 69. |
842542100
|
[1] |
BUSHING -
|
|
| 70. |
790074200
|
[1] |
PISTON -
|
|
| 71. |
790018200
|
[1] |
BUSHING -
|
|
| 72. |
842542400
|
[1] |
BOLT -
|
|
| 73. |
842542500
|
[1] |
SPRING -
|
|
| 74. |
790080000
|
[1] |
SPRING -
|
|
| 75. |
842542300
|
[1] |
RETAINING RING -
|
|
| 76. |
842541500
|
[1] |
DOWEL PIN -
|
|
| 77. |
842542000
|
[1] |
RETAINING RING -
|
|
| 78. |
790080100
|
[1] |
COVER -
|
|
| 79. |
790080200
|
[1] |
SCREW -
|
|
| 80. |
790080300
|
[1] |
PIN -
|
|
| 81. |
790080400
|
[1] |
SCREW -
|
|
