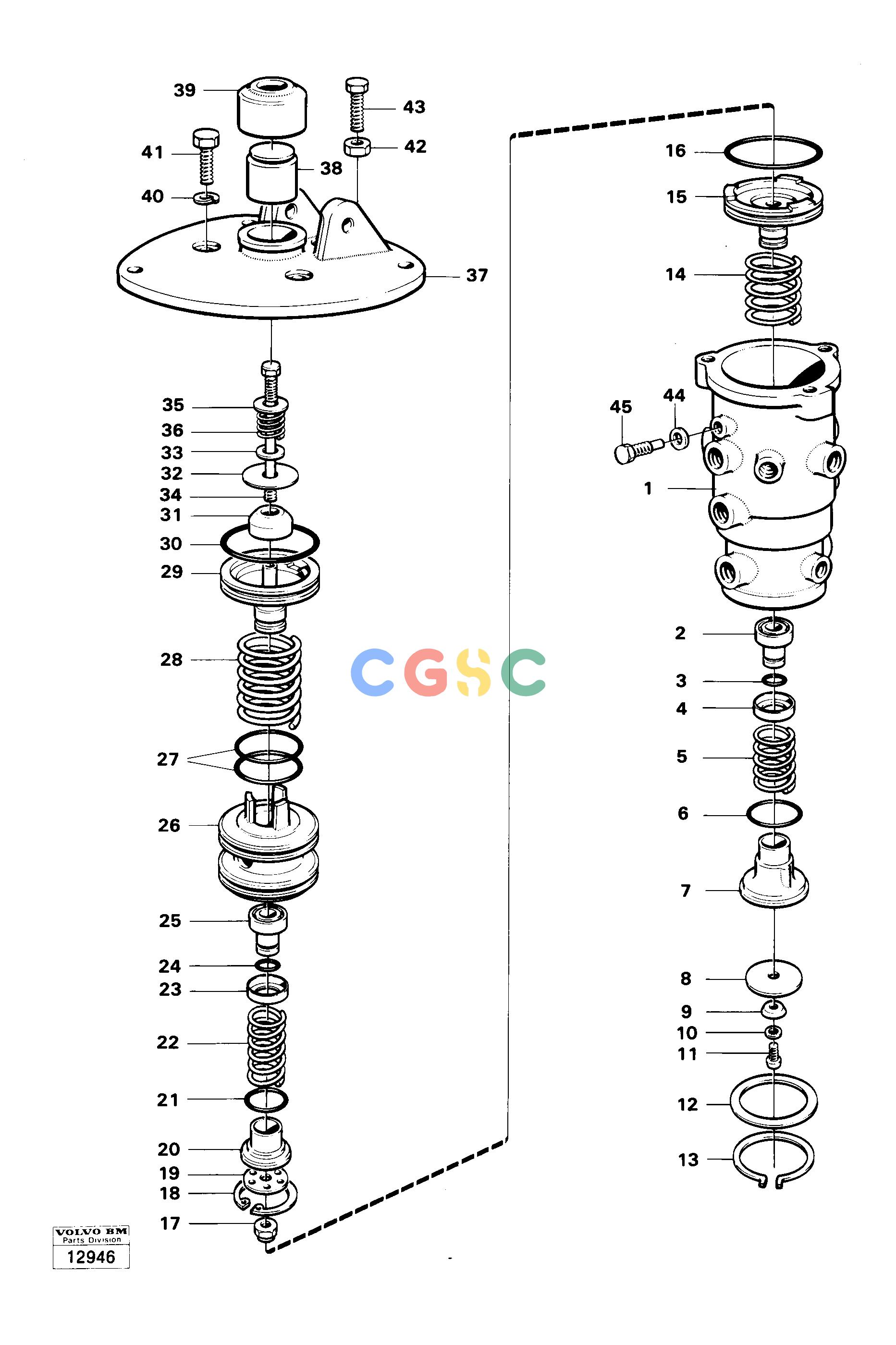

沃尔沃零件查询4300 Brake valve4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
738 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE7341559
|
[0001] |
O-ring
|
|
| |
VOE272521
|
[0001] |
Repair kit
|
|
| 4. |
VOE7341561
|
[0001] |
Washer
|
|
| 5. |
VOE7341560
|
[0001] |
Spring
|
|
| 6. |
VOE7341557
|
[0001] |
O-ring
|
|
| 7. |
VOE7341556
|
[0001] |
Valve seat
|
|
| |
VOE11000246
|
[0001] |
Valve
|
|
| 8. |
VOE7341563
|
[0001] |
Diaphragm
|
|
| 9. |
VOE7341564
|
[0001] |
Washer
|
|
| 10. |
VOE955946
|
[0001] |
Toothed washer
|
|
| 11. |
VOE950009
|
[0001] |
Cross recessed screw
|
|
| 12. |
VOE7341565
|
[0001] |
Washer
|
|
| 13. |
VOE914524
|
[0001] |
Retaining ring
|
|
| 14. |
VOE7326754
|
[0001] |
Spring
|
|
| 15. |
VOE1500123
|
[0001] |
Piston
|
|
| 16. |
VOE7341568
|
[0001] |
O-ring
|
|
| |
VOE1698648
|
[0001] |
Valve
|
|
| 1. |
VOE7341555
|
[0001] |
Valve Housing
|
|
| 17. |
VOE7349780
|
[0001] |
Nut
|
|
| 18. |
VOE914524
|
[0001] |
Retaining ring
|
|
| 19. |
VOE7349779
|
[0001] |
Washer
|
|
| 20. |
VOE7341570
|
[0001] |
Valve guide
|
|
| 21. |
VOE7341557
|
[0001] |
O-ring
|
|
| 22. |
VOE7341560
|
[0001] |
Spring
|
|
| 23. |
VOE7341561
|
[0001] |
Washer
|
|
| 24. |
VOE7341559
|
[0001] |
O-ring
|
|
| 25. |
VOE7341558
|
[0001] |
Valve
|
|
| 26. |
VOE7341569
|
[0001] |
Valve seat
|
|
| |
|
[0001] |
Valve
|
|
| 27. |
VOE7341568
|
[0002] |
O-ring
|
|
| 28. |
VOE7326754
|
[0001] |
Spring
|
|
| 29. |
VOE1517653
|
[0001] |
Piston
|
|
| 30. |
VOE7341568
|
[0001] |
O-ring
|
|
| 31. |
VOE7341573
|
[0001] |
Gasket
|
|
| 32. |
VOE1517652
|
[0001] |
Washer
|
|
| 33. |
VOE955893
|
[0001] |
Plain washer
|
|
| 34. |
VOE1517649
|
[0001] |
Bolt
|
|
| 35. |
VOE1517650
|
[0001] |
Guide
|
|
| 36. |
VOE1517651
|
[0001] |
Spring
|
|
| 2. |
VOE7341558
|
[0001] |
Valve
|
|
| 37. |
VOE7341577
|
[0001] |
Cover
|
|
| 38. |
VOE1517655
|
[0001] |
Peg
|
|
| 39. |
VOE341579
|
[0001] |
Bellows
|
|
| 40. |
VOE13941907
|
[0003] |
Washer
|
|
| 41. |
VOE103755
|
[0003] |
Screw
|
|
| 42. |
VOE955826
|
[0003] |
Hexagon nut
|
|
| 43. |
VOE7341580
|
[0001] |
Adjusting screw
|
|
| 44. |
VOE7011991
|
[0001] |
Gasket
|
|
| 45. |
VOE7341571
|
[0001] |
Screw
|
|
