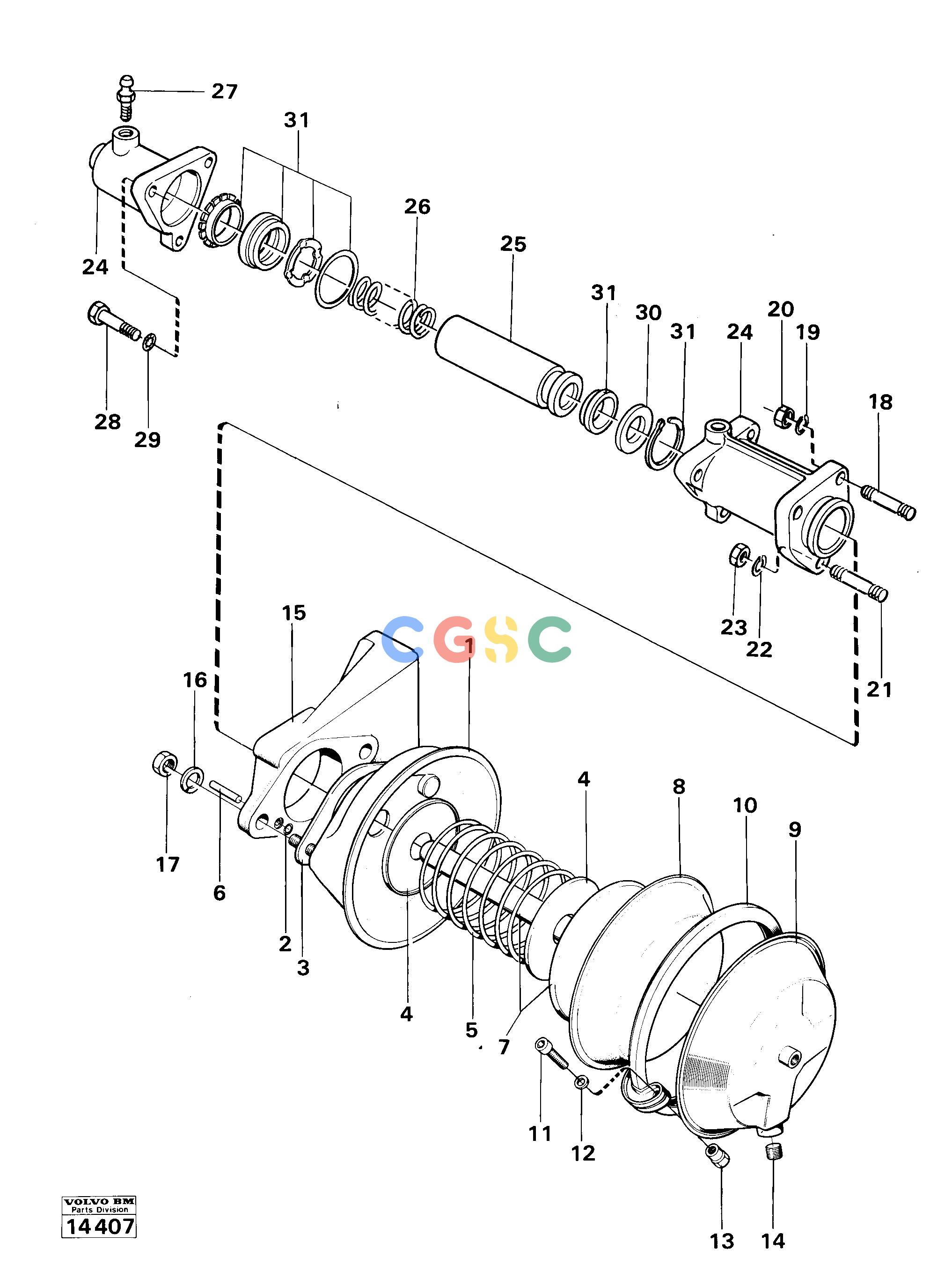

沃尔沃零件查询4300 Brake unit4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE6637669
|
[2] |
Spring Retainer
|
|
| 5. |
VOE6637668
|
[1] |
Spring
|
|
| 6. |
VOE6210927
|
[1] |
Bar
|
|
| 7. |
VOE6637670
|
[0001] |
Piston rod
|
|
| 8. |
VOE952109
|
[0001] |
Diaphragm
|
|
| |
|
[1] |
Brake Unit
|
|
| 9. |
VOE6637665
|
[0001] |
Plate
|
|
| 10. |
VOE6642957
|
[0001] |
Tensioning band
|
|
| 11. |
VOE6637637
|
[0002] |
Screw
|
|
| 12. |
VOE6637638
|
[0002] |
Washer
|
|
| 13. |
VOE6637639
|
[0002] |
Nut
|
|
| 14. |
VOE6612950
|
[0001] |
Plug
|
|
| 15. |
|
[1] |
Bracket
|
|
| 16. |
VOE941912
|
[2] |
Spring washer
|
|
| 17. |
VOE955852
|
[2] |
Hexagon nut
|
|
| 18. |
VOE6637661
|
[1] |
Stud
|
|
| 1. |
|
[1] |
Housing
|
|
| 19. |
VOE13941909
|
[1] |
Washer
|
|
| 20. |
VOE13955849
|
[1] |
Nut
|
|
| 21. |
VOE202115
|
[2] |
Stud
|
|
| 22. |
VOE13942336
|
[0002] |
Spring washer
|
|
| 23. |
VOE13955848
|
[0002] |
Nut
|
|
| 24. |
VOE6642310
|
[0001] |
Master cylinder
|
|
| 25. |
|
[0001] |
Piston
|
|
| 26. |
|
[0001] |
Spring
|
|
| 27. |
VOE338983
|
[0001] |
Screw
|
|
| 28. |
VOE955724
|
[0003] |
Hexagon screw
|
|
| 29. |
VOE955952
|
[0003] |
Toothed washer
|
|
| 2. |
VOE6637666
|
[1] |
O-ring
|
|
| 30. |
|
[0001] |
Washer
|
|
| 31. |
VOE6642313
|
[0001] |
Repair kit
|
|
| 3. |
VOE6637671
|
[REQ] |
Shim
|
THICK=0,30
|
