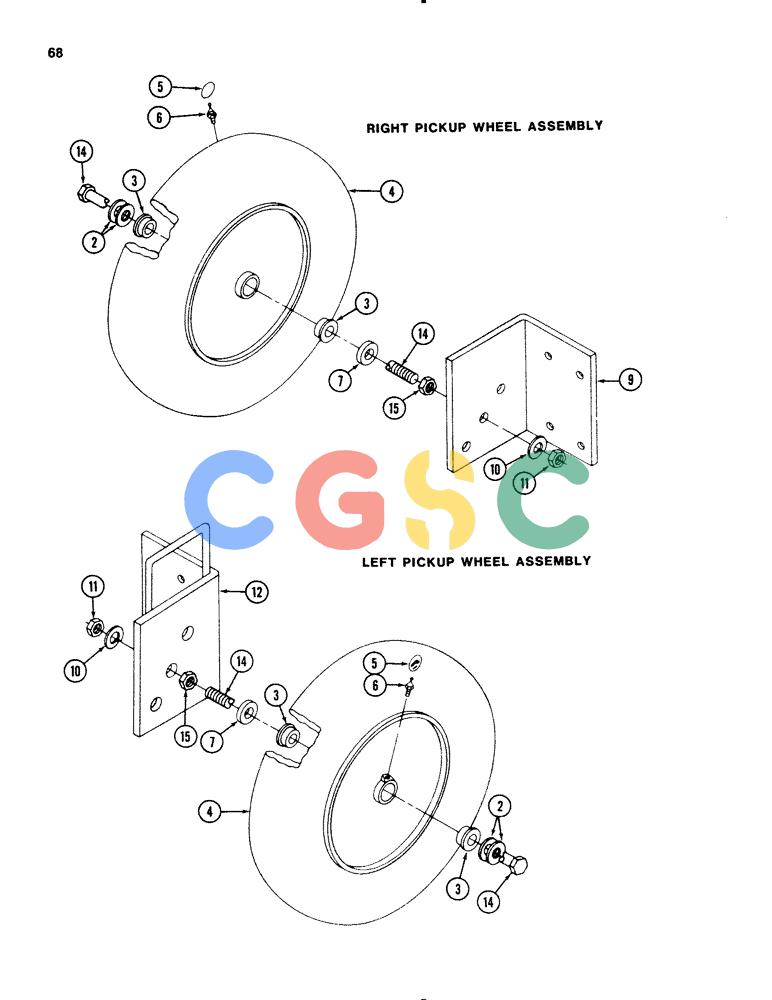

凯斯零件查询(3650) - CASE IH ROUND TIE BALER (1/84-12/88) (68) - LEFT AND RIGHT GAUGE WHEEL, P.I.N. 001531 AND AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
582 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
21753R1
|
[1] |
WASHER
|
IH
- flat, 21/32 x 1-1/2 x 1/16 inch (16 x 38 x 1 mm) Superseded by part number: 86624157
|
| 3. |
ZA104825
|
[2] |
BUSHING
|
IH
|
| 4. |
ZA104582
|
[1] |
WHEEL
|
IH
- for 4.80/4.00 - 8 4 ply tire Superseded by part number: 700709878
|
| 5. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
DECAL - grease (10 hours) (Order kit 1265869C93)
|
| 6. |
219-8
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 7. |
467750R1
|
[1] |
WASHER
|
IH
- flat, 25/32 x 1-5/8 x 1/4 inch (19 x 41 x 6 mm) Superseded by part number: 87034831
|
| 9. |
ZA105414
|
[1] |
BRACKET
|
IH
- wheel right
|
| 10. |
87340
|
[1] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
WASHER, LOCK, 3/4"
|
| 11. |
280954
|
[1] |
NUT,3/4"-10, G5
|
NH
|
| 12. |
ZA105412
|
[1] |
BRACKET
|
IH
- wheel left
|
| 14. |
19873R1
|
[1] |
HARDWARE,Hex, 3/4"-10 x 5 1/2", G5
|
IH
BOLT - hex, 3/4 NC x 5-1/2 inch Superseded by part number: 272554
|
| 15. |
426897
|
[1] |
JAM NUT,Jam, 3/4"-10, G5
|
IH
- hex jam, 3/4 inch NC Superseded by part number: 86632557
|
