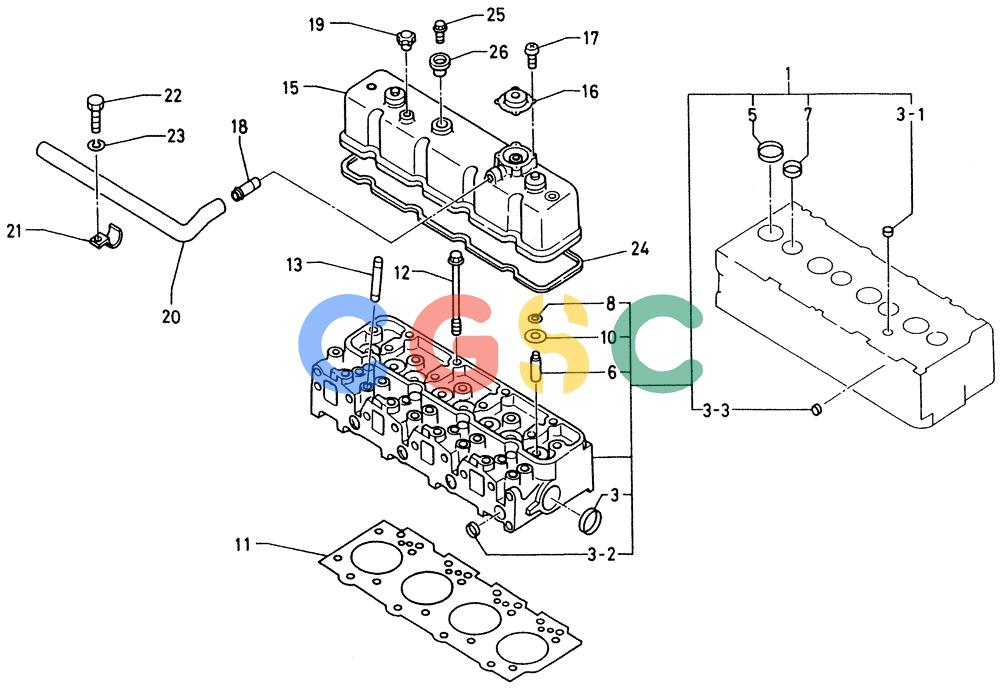

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-001) - CYLINDER HEAD & OTHER PARTS (HEAD COVER) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
927 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941253525 | [1] | HEAD ASM. CYL. | |
| 1-1. | VI8941698810 | [1] | HEAD ASM. CYL. | |
| 1-2. | VI8941752260 | [1] | HEAD ASM. CYL. | |
| 3. | VI1096000051 | [1] | CUP | KOBSEALING CUP Superseded by part number: 87398694 |
| 3-1. | VI5111290060 | [3] | SEAL | KOBSEALING CUP |
| 3-2. | VI1096000112 | [7] | SEAL | KOBING CUP |
| 3-3. | VI5096000130 | [5] | CUP | KOBSEALING CUP Superseded by part number: VI8970363351 |
| 5. | VI8941305580 | [4] | INSERT | KOBVALVE SEAT INSERT, INLET Superseded by part number: VI8972312280 |
| 5-1. | VI8941435140 | [4] | VALVE SEAT INSERT, INLET | |
| 6. | VI5117210160 | [8] | GUIDE | KOBGUIDE INLAND EXH. |
| 7. | VI8941305590 | [4] | INSERT | KOBVALVE SEAT INSERT, EXH. Superseded by part number: VI8972312290 |
| 7-1. | VI8941435150 | [4] | VALVE SEAT INSERT, EXH. | |
| 8. | VI5125690060 | [8] | VALVE | KOBSEAL VALVE, STEM Superseded by part number: VI8971203070 |
| 10. | VI5125630010 | [8] | SEAT | KOBSEAT SPRING, LOWER |
| 11. | VI8941095531 | [1] | GASKET | KOBGASKET CYL, HEAD Superseded by part number: VI8941095532 |
| 11-1. | VI8941458911 | [1] | GASKET CYL, HEAD | |
| 12. | VI8942473550 | [18] | BOLT | |
| 13. | VI1093000400 | [4] | STUD NOZZLE FIX. | |
| 15. | VI8941334851 | [1] | COVER ASM. CYL. HEAD | |
| 16. | VI8942501720 | [1] | VALVE | KOBVENTILATOR VALVE Superseded by part number: VI8971198870 |
| 17. | VI9039104080 | [4] | SCREW | KOBSCREW VENTILATOR FIX. Superseded by part number: VI0362204080 |
| 18. | VI8942506150 | [1] | PIPE BREATHER | |
| 18-1. | VI8944302570 | [1] | PIPE BREATHER | |
| 19. | VI8942391510 | [1] | CAP | KOBCAP OIL FILLER Superseded by part number: VI8941097910 |
| 20. | VI8941293811 | [1] | HOSE RUBBER | |
| 20-1. | VI8941523620 | [1] | HOSE | KOBRUBBER |
| 20-2. | VI8944302520 | [1] | HOSE RUBBER | |
| 20-3. | VI8944340730 | [1] | HOSE RUBBER | |
| 21. | VI8941429410 | [1] | CLIP HOSE FIX. | |
| 21-1. | VI8941211130 | [2] | CLIP | KOBHOSE FIX. Superseded by part number: 86989893 |
| 22. | VI9020508140 | [1] | BOLT CLIP | |
| 23. | VI9091505080 | [1] | WASHER | KOBWASHER SPR. Superseded by part number: VI0915105080 |
| 24. | VI8942479031 | [1] | GASKET | KOBPACKING HEAD COVER Superseded by part number: VI8973494161 |
| 25. | VI8941581080 | [3] | NUT | KOBNUT CAP |
| 26. | VI8941530510 | [3] | GASKET | KOBPACKING COVER FIX. Superseded by part number: VI8942024563 |
