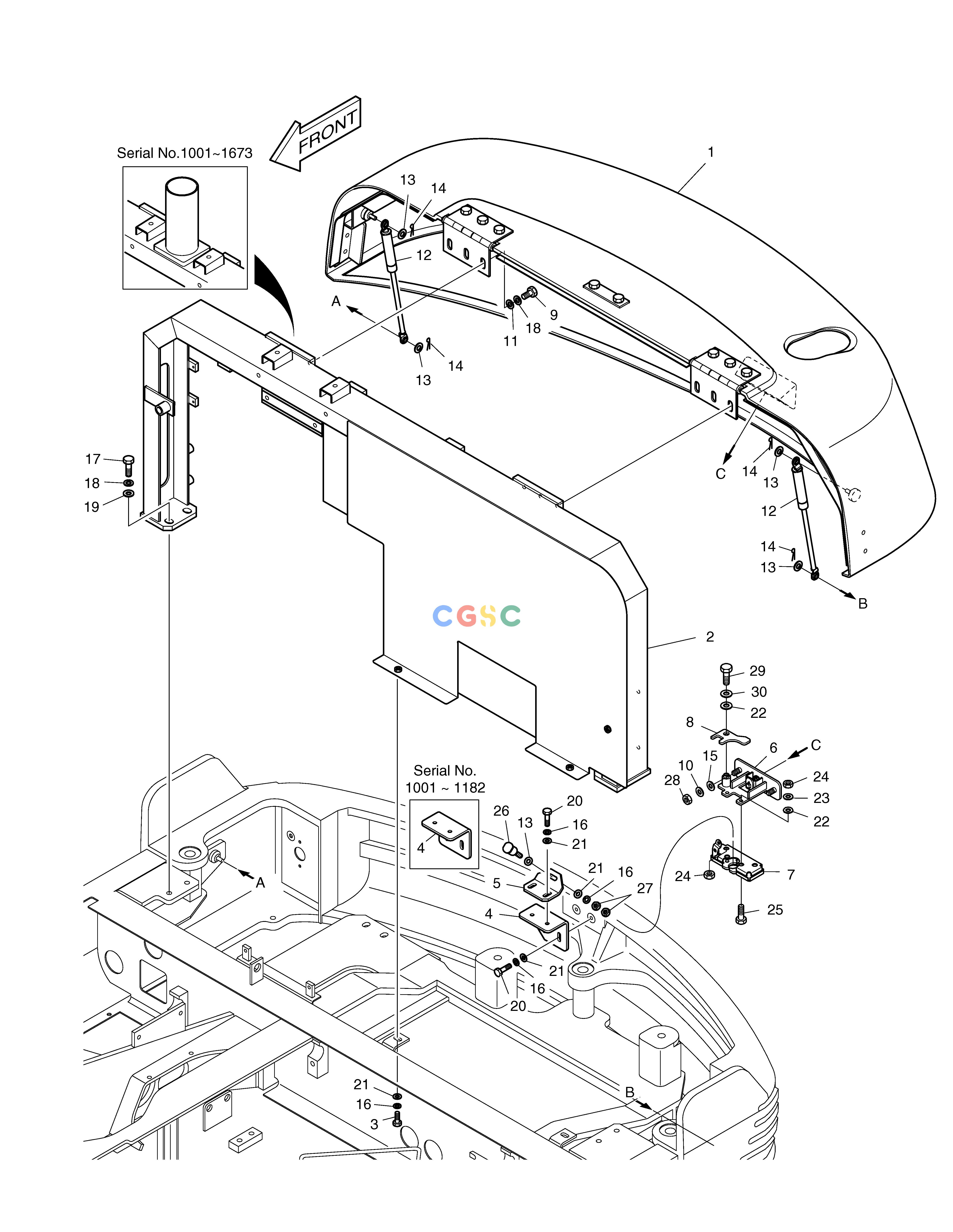

斗山零件查询BONNET ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
1036 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-02549
|
[-] |
BONNET ASS'Y
|
|
| -. |
621-03668
|
[-] |
BONNET ASS'Y
|
|
| -. |
621-03668A
|
[-] |
BONNET ASS'Y
|
|
| 1. |
621Y02259C
|
[1] |
BONNET
|
|
| 1. |
K1013234
|
[1] |
BONNET
|
|
| 10. |
S5102603
|
[2] |
. WASHER
|
|
| 11. |
2114-1058D72
|
[6] |
WASHER
|
|
| 12. |
440-00365B
|
[2] |
CYLINDER;GAS
|
|
| 13. |
S5010513
|
[6] |
WASHER
|
|
| 14. |
2123-1441D4
|
[4] |
PIN
|
|
| 15. |
2114-1058D62
|
[2] |
WASHER
|
|
| 16. |
S5102503
|
[8] |
. WASHER
|
|
| 17. |
S0515453
|
[4] |
BOLT
|
|
| 18. |
S5102703
|
[10] |
WASHER
|
|
| 19. |
2114-1058D72
|
[4] |
WASHER
|
|
| 2. |
195-02446A
|
[1] |
SUPPORT;ARCH
|
195-02446B
|
| 2. |
195-02446B
|
[1] |
SUPPORT;ARCH
|
|
| 2. |
K1013107
|
[1] |
BUCKET;WITH TOOTH-0.95㎥
|
|
| 20. |
S0509253
|
[4] |
BOLT M8X1.25X30
|
|
| 21. |
2114-1058D29
|
[8] |
WASHER
|
|
| 22. |
S5010313
|
[3] |
WASHER
|
|
| 23. |
S5102303
|
[2] |
. WASHER
|
|
| 24. |
S4012333
|
[3] |
NUT
|
|
| 25. |
S0505353
|
[2] |
BOLT M6X1.0X35
|
|
| 26. |
2142-1094
|
[1] |
STRIKER
|
|
| 27. |
S4012533
|
[4] |
NUT
|
|
| 28. |
S4012633
|
[2] |
NUT
|
|
| 29. |
S0553853
|
[1] |
BOLT M6X1.0X60
|
|
| 3. |
S0508953
|
[2] |
BOLT M8X1.25X22
|
|
| 30. |
2114-1058D69
|
[1] |
WASHER
|
|
| 4. |
195-01182
|
[1] |
BRACKET
|
195-02837
|
| 4. |
195-02837
|
[1] |
BRACKET
|
|
| 5. |
195-01183
|
[1] |
BRACKET
|
|
| 6. |
195-01411A
|
[1] |
BRACKET
|
|
| 7. |
2143-1003
|
[1] |
LATCH
|
|
| 8. |
195-00280
|
[1] |
BRACKET
|
|
| 9. |
S0515053
|
[6] |
BOLT M12X1.75X25
|
|
