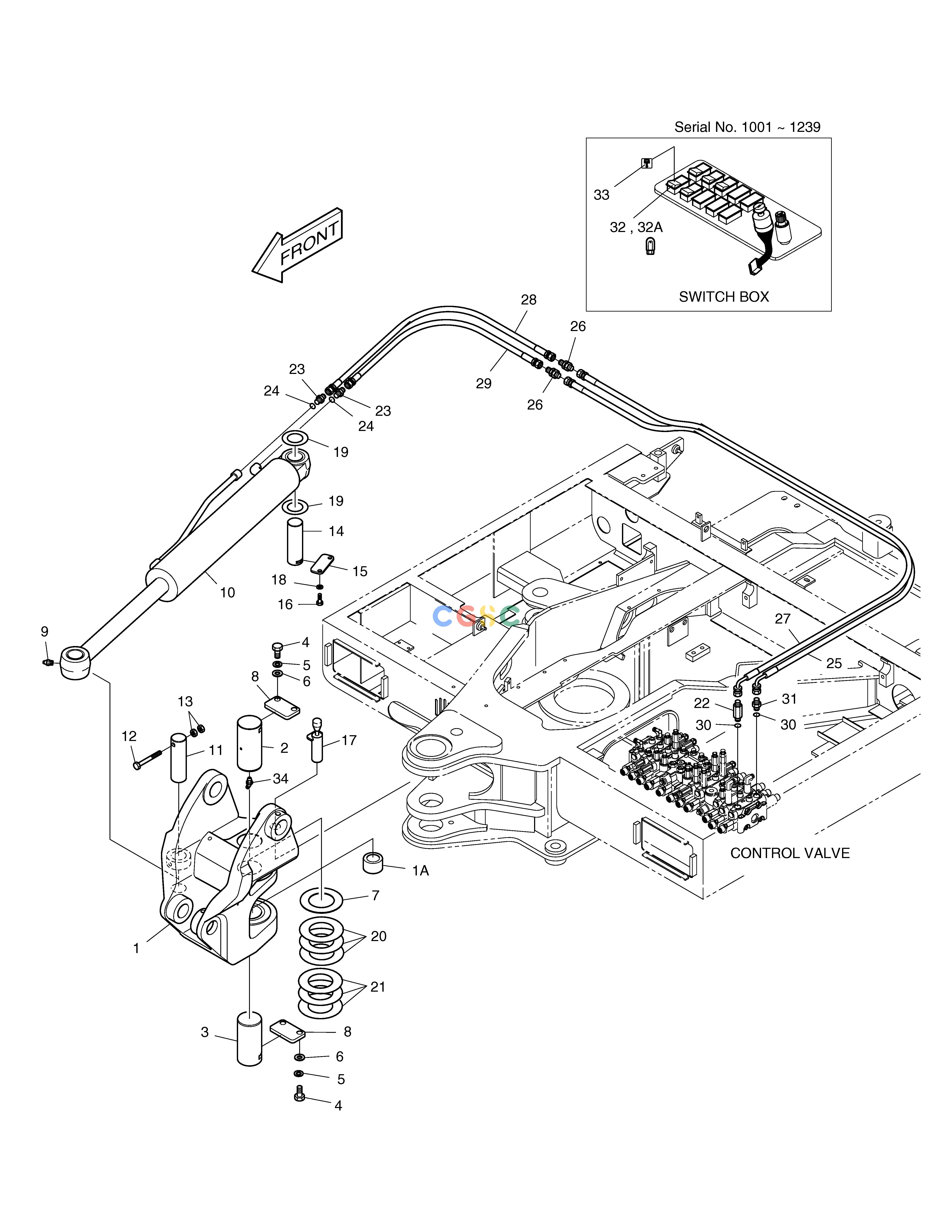

斗山零件查询BOOM SWING ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
323 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
707-00008
|
[-] |
BOOM SWING ASS'Y
|
|
| -. |
707-00011
|
[-] |
BOOM SWING ASS'Y
|
|
| 1. |
707Y00009B
|
[1] |
BRACKET;SWING
|
|
| 1. |
707Y00012
|
[1] |
BRACKET;SWING
|
|
| 1. |
707Y00012A
|
[1] |
BRACKET;SWING
|
|
| 10. |
440G00377
|
[1] |
CYLINDER;BOOM SWING
|
|
| 10. |
440G00377A
|
[1] |
CYLINDER;BOOM SWING
|
|
| 11. |
123-00401A
|
[1] |
PIN
|
|
| 12. |
S0561853
|
[1] |
BOLT M12X1.75X105
|
|
| 13. |
S4012733
|
[2] |
NUT
|
|
| 14. |
123-00396
|
[1] |
PIN
|
|
| 15. |
621G01685
|
[1] |
PLATE;LOCK
|
|
| 15. |
621G01685A
|
[1] |
PLATE;LOCK
|
|
| 16. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 17. |
2123-1793B
|
[1] |
PIN;LOCK
|
|
| 17. |
123-00530
|
[1] |
PIN;LOCK
|
123-00533
|
| 17. |
123-00533
|
[1] |
PIN;LOCK
|
|
| 18. |
S5010613
|
[2] |
WASHER
|
|
| 19. |
2114-1059D48
|
[2] |
SHIM
|
|
| 1A. |
2110-1194B
|
[1] |
BUSH
|
|
| 2. |
123-00437
|
[1] |
PIN;BOOM SWING
|
|
| 20. |
2114-1059D116
|
[3] |
SHIM 0.5T
|
|
| 21. |
2114-1059D118
|
[3] |
SHIM
|
|
| 22. |
2181-1126D73
|
[1] |
ADAPTER
|
|
| 23. |
2181-1126D109
|
[2] |
ADAPTER
|
|
| 23. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 24. |
S8000141
|
[2] |
O-RING
|
|
| 25. |
DS2055800
|
[1] |
HOSE
|
|
| 26. |
2181-2718
|
[2] |
ADAPTER;JOINT
|
|
| 27. |
DS2055766
|
[1] |
HOSE
|
|
| 28. |
2184-1026D192
|
[1] |
HOSE PF3/8-820L
|
|
| 29. |
DS2053763
|
[1] |
HOSE
|
|
| 3. |
2123-2335B
|
[1] |
PIN
|
|
| 30. |
S8000181
|
[2] |
O-RING
|
|
| 31. |
2181-1126D23
|
[1] |
ADAPTER
|
|
| 32. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
|
| 32A. |
K9000354
|
[1] |
LAMP;PILOT
|
|
| 33. |
2190-2584D6
|
[1] |
INSERT;BOOM SWING
|
|
| 34. |
S6710101
|
[1] |
NIPPLE;GREASE
|
|
| 4. |
S0521353
|
[4] |
BOLT M16X2.0X35
|
|
| 5. |
S5102903
|
[4] |
WASHER
|
|
| 6. |
S5010913
|
[4] |
WASHER
|
|
| 7. |
2114-1608
|
[1] |
COLLAR;THRUST
|
|
| 8. |
2116Y1536
|
[2] |
PLATE;LOCK
|
|
| 8. |
K1000409
|
[2] |
PLATE;LOCK
|
|
| 9. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
