斗山零件查询BRAKE & MODULE PIPING(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
377 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01247
|
[-] |

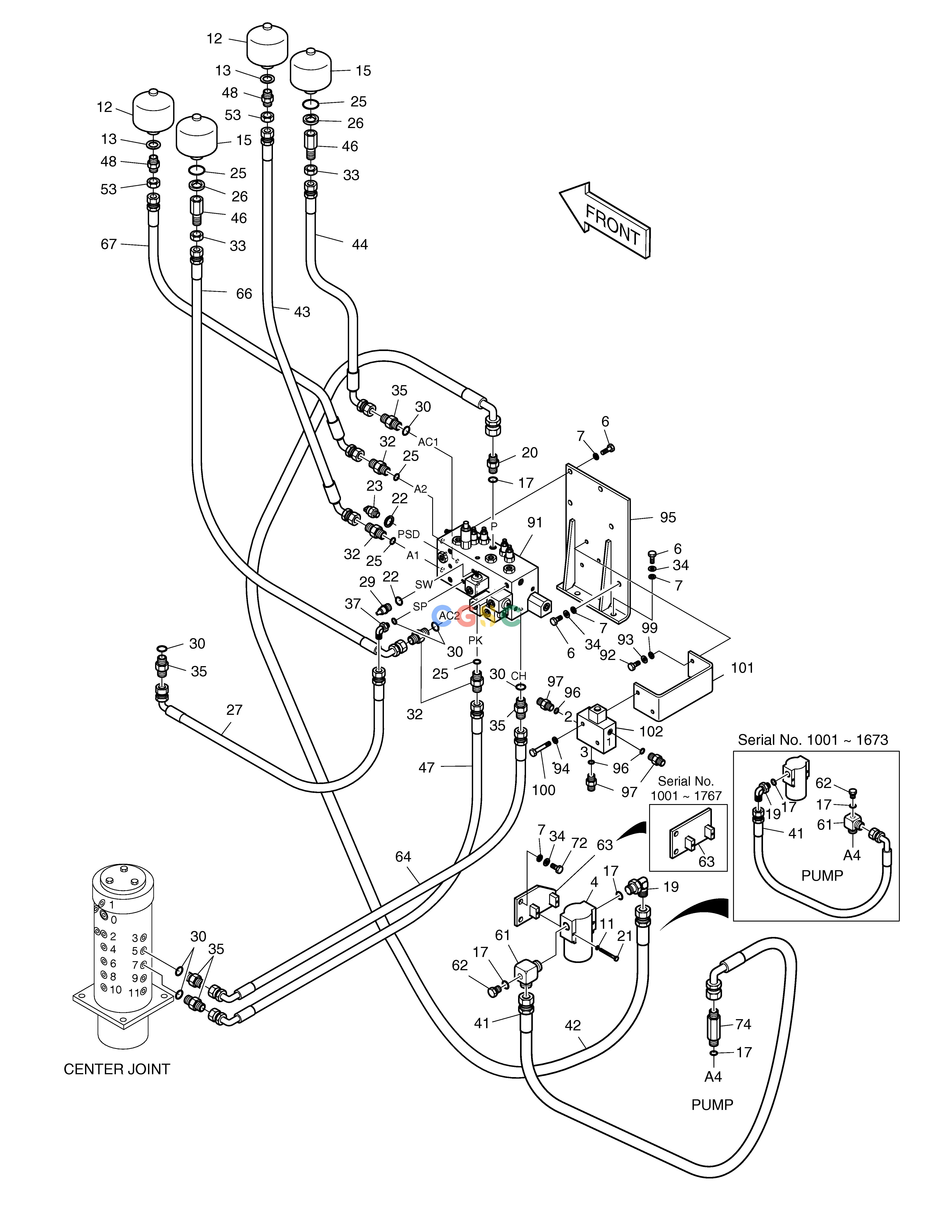

BRAKE & MODULE PIPING
|
|
| -. |
400-01247B
|
[-] |
BRAKE & MODULE PIPING
|
|
| 100. |
S0553653
|
[2] |
BOLT M6X1.0X50
|
|
| 101. |
195-02441
|
[1] |
BRACKET
|
|
| 102. |
420-00430
|
[1] |
VALVE;SOLENOID
|
|
| 11. |
S5102303
|
[2] |
. WASHER
|
|
| 12. |
2460-9037
|
[2] |
ACCUMULATOR
|
|
| 13. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 15. |
2460-9054
|
[2] |
ACCUMULATOR
|
|
| 17. |
S8000181
|
[4] |
O-RING
|
|
| 19. |
2181-1702D2
|
[2] |
ELBOW
|
|
| 19. |
2181-1702D2
|
[1] |
ELBOW
|
|
| 20. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 21. |
S0553853
|
[2] |
BOLT M6X1.0X60
|
|
| 22. |
S8180211
|
[2] |
SEAL;RING
|
|
| 23. |
549-00084
|
[1] |
SWITCH;LOW PRESS
|
|
| 25. |
S8000141
|
[5] |
O-RING
|
|
| 26. |
S5102803
|
[2] |
WASHER
|
|
| 27. |
2184-1046D63
|
[1] |
HOSE PF1/4-500L
|
|
| 29. |
2549-1135D8
|
[1] |
SWITCH;PRESSURE
|
|
| 30. |
S8000111
|
[7] |
O-RING
|
|
| 32. |
2181-1126D36
|
[4] |
ADAPTER
|
|
| 33. |
121-00006
|
[2] |
NUT
|
|
| 34. |
2114-1058D45
|
[6] |
. WASHER
|
|
| 35. |
2181-1126D14
|
[5] |
ADAPTER
|
|
| 37. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 4. |
2471-9062
|
[1] |
FILTER;PILOT
|
|
| 41. |
2184-1036D19
|
[1] |
HOSE PF1/2-750L
|
|
| 41. |
2184-1036D160
|
[1] |
HOSE PF1/2-1050L
|
|
| 42. |
2184-1036D424
|
[1] |
HOSE
|
|
| 43. |
2184-1060D69
|
[1] |
HOSE PF1/4-400L
|
|
| 44. |
2184-1046D204
|
[1] |
HOSE PF1/4-340L
|
|
| 46. |
181-00140
|
[2] |
REDUCER
|
|
| 47. |
2184-1046D49
|
[1] |
HOSE PF1/4-1020L
|
|
| 48. |
2181-4306
|
[2] |
ADAPTER
|
|
| 53. |
S4035133
|
[2] |
NUT
|
|
| 6. |
S0512053
|
[8] |
BOLT
|
|
| 61. |
DS2282006
|
[1] |
ELBOW
|
|
| 62. |
2181-2047
|
[1] |
PLUG
|
|
| 63. |
195-02214B
|
[1] |
BRACKET
|
195-02214C
|
| 63. |
195-02214C
|
[1] |
BRACKET
|
|
| 64. |
2184-1046D76
|
[1] |
HOSE PF1/4-1200L
|
|
| 66. |
2184-1046D57
|
[1] |
HOSE PF1/4-430L
|
|
| 67. |
DS2054264
|
[1] |
HOSE
|
|
| 7. |
S5102603
|
[10] |
. WASHER
|
|
| 72. |
S0558253
|
[2] |
BOLT M10X1.5X35
|
|
| 74. |
2181-1126D113
|
[1] |
ADAPTER PFO1/2-PF1/2
|
|
| 91. |
420-00428
|
[1] |
VALVE;PILOT SUPPLY
|
|
| 92. |
S0509053
|
[2] |
. BOLT
|
|
| 93. |
S5102503
|
[2] |
. WASHER
|
|
| 94. |
S5102303
|
[2] |
. WASHER
|
|
| 95. |
195Y02442
|
[1] |
BRACKET
|
|
| 96. |
S8000111
|
[3] |
O-RING
|
|
| 97. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 99. |
S5010513
|
[2] |
WASHER
|
|
