400-01247
|
[-] |

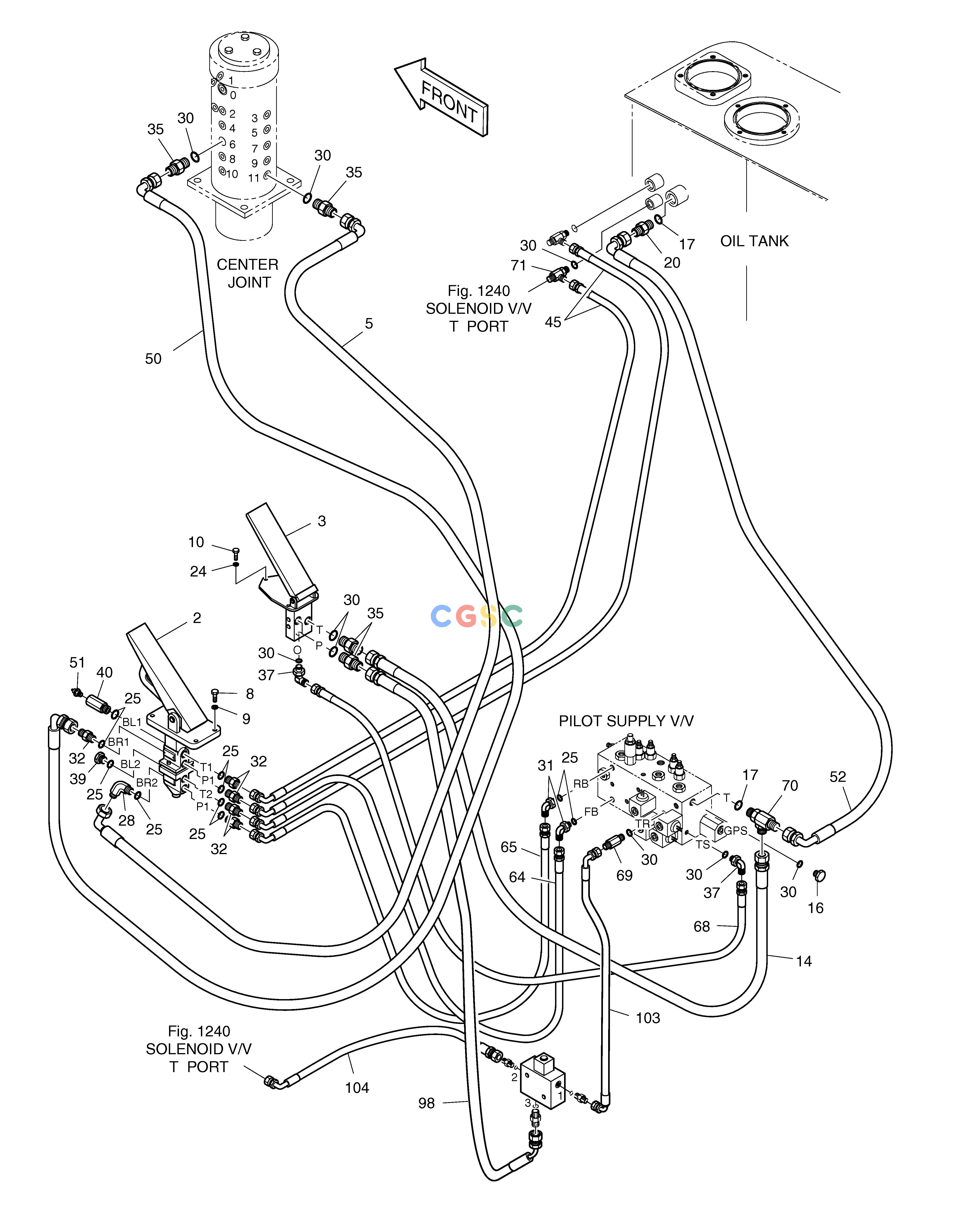

BRAKE & MODULE PIPING
|
|
| 10. |
S2204861
|
[3] |
BOLT
|
|
| 103. |
DS2059446
|
[1] |
HOSE PF1/4-160L
|
|
| 103. |
2184-1046D204
|
[1] |
HOSE PF1/4-340L
|
|
| 104. |
2184-1046D44
|
[1] |
HOSE PF1/4-460L
|
|
| 14. |
2184-1045D102
|
[1] |
HOSE PF1/4-1450L
|
|
| 16. |
2181-1950D1
|
[1] |
PLUG
|
|
| 17. |
S8000181
|
[2] |
O-RING
|
|
| 2. |
2420-9306C
|
[1] |
VALVE;BRAKE-DIG
|
|
| 20. |
2181-1126D6
|
[1] |
ADAPTER
|
|
| 24. |
S5110301
|
[3] |
WASHER;SPRING M6
|
|
| 25. |
S8000141
|
[10] |
O-RING
|
|
| 28. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 3. |
2420-9406C
|
[1] |
VALVE;PEDAL
|
|
| 30. |
S8000111
|
[9] |
O-RING
|
|
| 31. |
2181-1702D10
|
[2] |
ELBOW
|
|
| 32. |
2181-1126D36
|
[5] |
ADAPTER
|
|
| 35. |
2181-1126D14
|
[4] |
ADAPTER
|
|
| 37. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 39. |
2181-1950D2
|
[1] |
PLUG
|
|
| 40. |
181-00182
|
[1] |
REDUCER
|
|
| 45. |
2184-1046D220
|
[2] |
HOSE
|
|
| 5. |
DS2059435
|
[1] |
HOSE
|
|
| 50. |
DS2059436
|
[1] |
HOSE
|
|
| 51. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 52. |
DS2059434
|
[1] |
HOSE
|
|
| 64. |
2184-1046D76
|
[1] |
HOSE PF1/4-1200L
|
|
| 65. |
2184-1046D108
|
[1] |
HOSE PF1/4-1300L
|
|
| 68. |
2184-1045D149
|
[1] |
HOSE PF1/4-1400L
|
|
| 69. |
2181-1126D103
|
[1] |
ADAPTER
|
|
| 70. |
2181-1951D19
|
[1] |
TEE
|
|
| 71. |
2181-1951D1
|
[1] |
TEE
|
|
| 8. |
S0509053
|
[4] |
. BOLT
|
|
| 9. |
S5102503
|
[4] |
. WASHER
|
|
| 98. |
2184-1046D147
|
[1] |
HOSE PF1/4-1000L
|
|
