沃尔沃零件查询4300 Brake4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
564 次

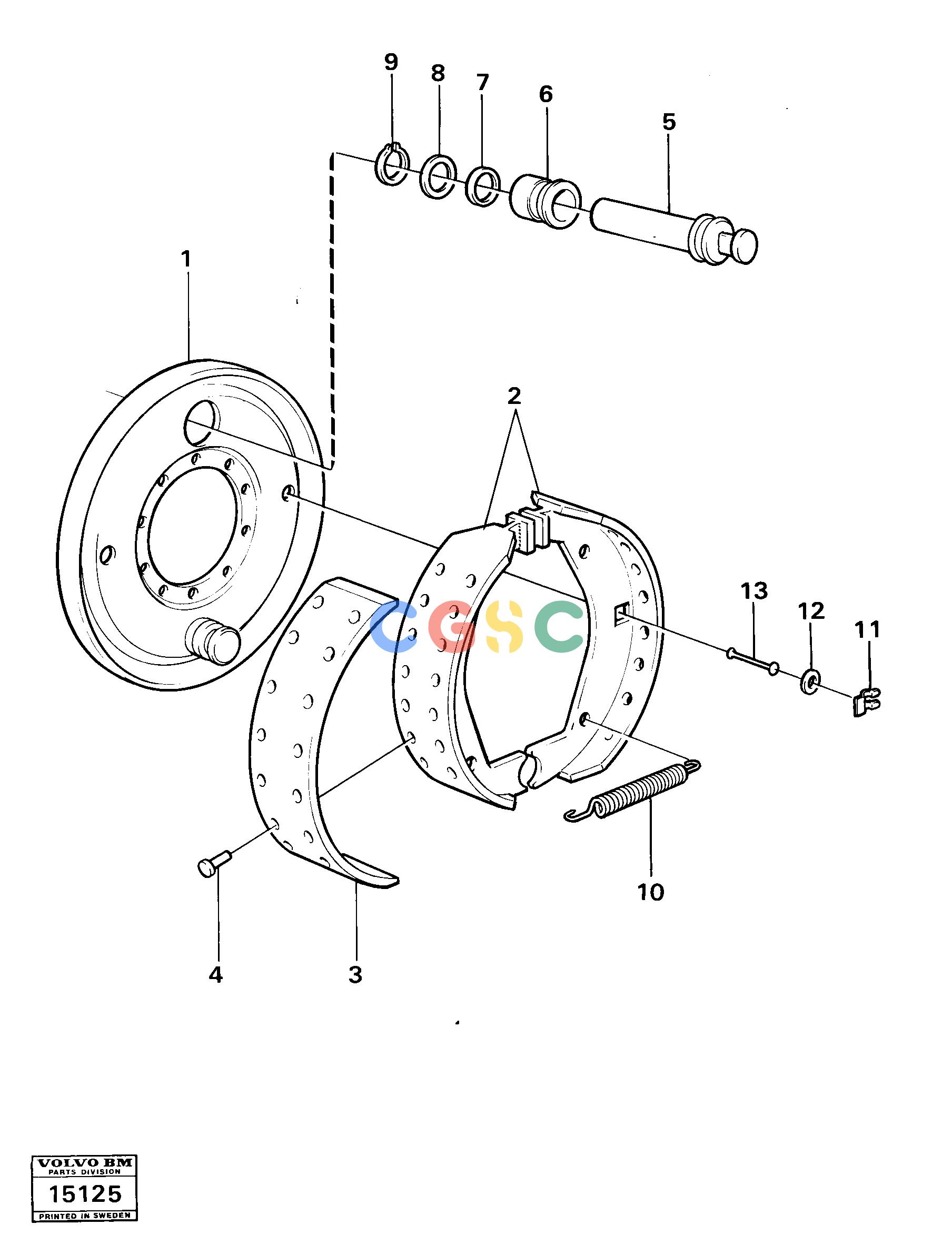

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
|
[0002] |
Brake lining
|
|
| 4. |
VOE952455
|
[0032] |
Semi-tubular rivet
|
|
| 5. |
VOE6210295
|
[0001] |
Shaft
|
|
| 6. |
VOE6210296
|
[0001] |
Bushing
|
|
| 7. |
VOE13949721
|
[0001] |
O-ring
|
26X3
|
| |
|
[0001] |
Brake
|
|
| 8. |
VOE6210297
|
[0001] |
Washer
|
|
| 9. |
VOE951078
|
[0001] |
Retaining ring
|
|
| 10. |
VOE6210298
|
[0002] |
Spring
|
|
| 11. |
VOE6210299
|
[0002] |
Spring
|
|
| 12. |
VOE976945
|
[0002] |
Washer
|
|
| 13. |
VOE6210300
|
[0002] |
Pin
|
|
| 1. |
VOE6210292
|
[0001] |
Backing plate
|
|
| 2. |
VOE6210293
|
[0002] |
Brake shoe
|
|
| |
VOE11702445
|
[0001] |
Brake lining kit
|
|
