沃尔沃零件查询4300 Double brake pedals 993104300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
724 次

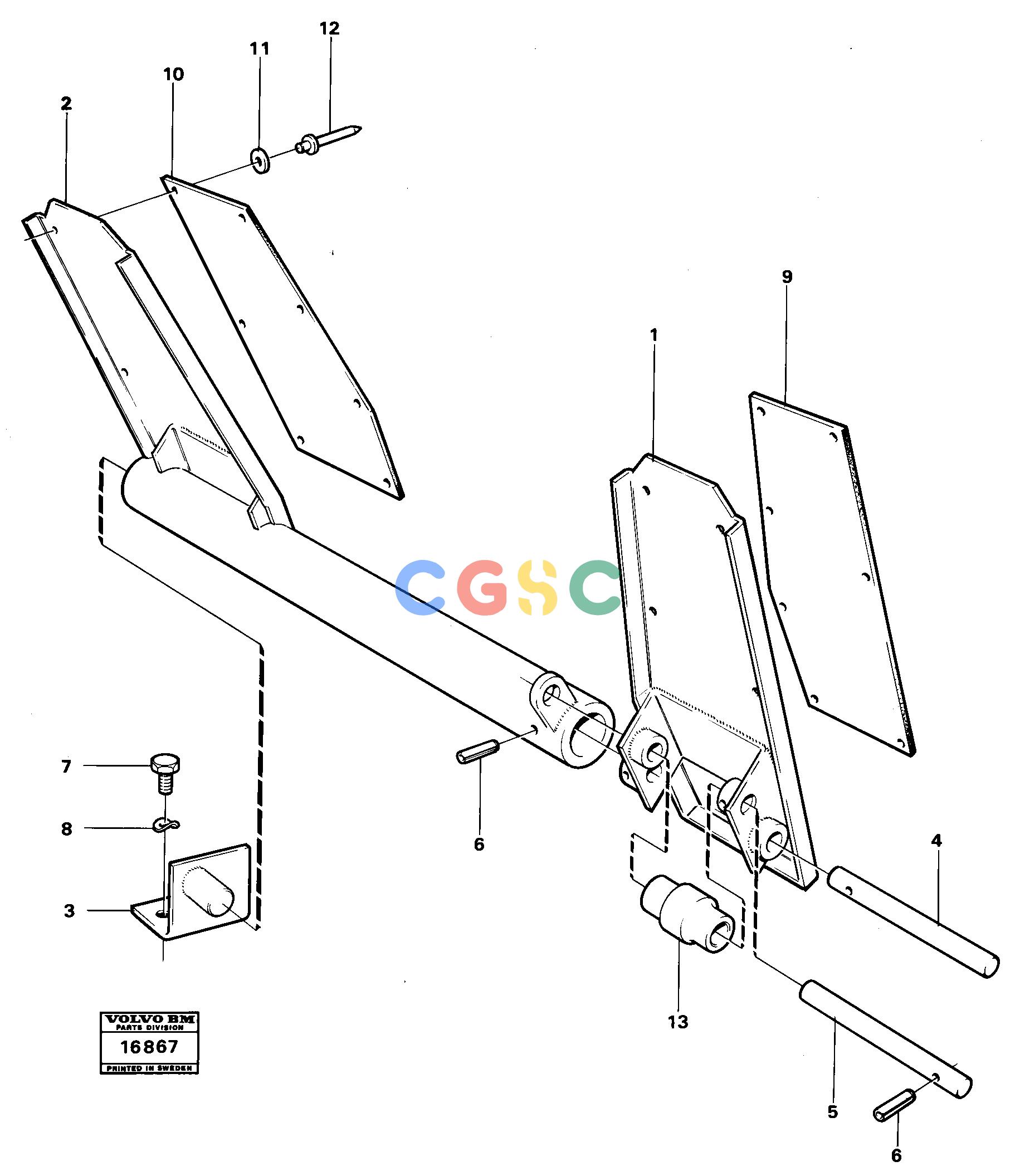

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4851603
|
[0001] |
Shaft
|
|
| 6. |
VOE951945
|
[0002] |
Spring pin
|
|
| 7. |
VOE13955294
|
[0002] |
Screw
|
|
| 8. |
VOE13941907
|
[0002] |
Washer
|
|
| 9. |
VOE4851634
|
[0001] |
Rubber plate
|
|
| 1. |
|
[0001] |
Foot plate
|
|
| 10. |
VOE4851663
|
[0001] |
Rubber plate
|
|
| 11. |
VOE960136
|
[0014] |
Washer
|
|
| 12. |
VOE942669
|
[0014] |
Blind rivet
|
|
| 13. |
VOE4851711
|
[0001] |
Roller
|
|
| 2. |
|
[0001] |
Foot plate
|
|
| 3. |
|
[0001] |
Attachment
|
|
| 4. |
VOE4856501
|
[0001] |
Shaft
|
|
| |
|
|
None
|
SER NO - 4278
|
| |
VOE4856501
|
[0001] |
Shaft
|
SER NO 4279 -
|
