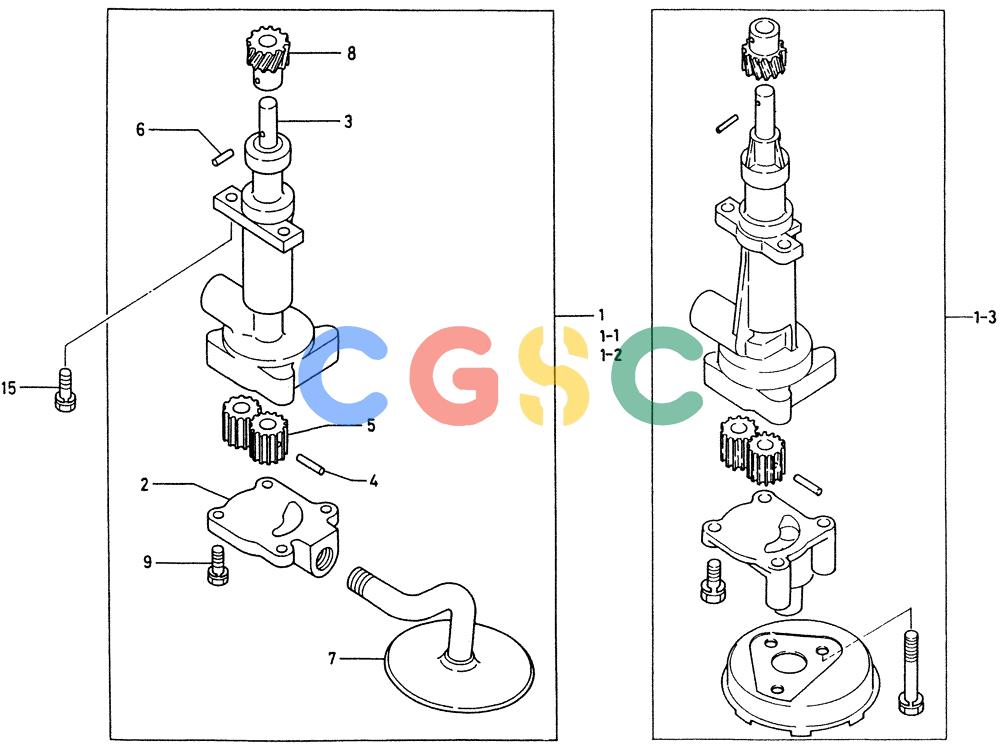

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-006) - OIL PUMP & FIXING PARTS Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
878 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941421570 | [1] | PUMP ASM., OIL | |
| 1-1. | VI8941701220 | [1] | PUMP ASM., OIL | |
| 1-2. | VI8944287980 | [1] | PUMP ASM., OIL | |
| 1-3. | VI5131000610 | [1] | PUMP ASM., OIL | |
| 1-4. | VI8944432270 | [1] | PUMP ASM., OIL | |
| 2. | VI9131130770 | [1] | COVER, OIL PUMP | |
| 2-1. | VI9131130860 | [1] | COVER, OIL PUMP | |
| 2-3. | VI8944435940 | [1] | COVER, OIL PUMP | |
| 3. | VI8941761770 | [1] | SHAFT ASM., OIL PUMP | |
| 3-1. | VI5131230130 | [1] | SHAFT ASM., OIL PUMP | |
| 3-2. | VI8944404090 | [1] | SHAFT ASM., OIL PUMP | |
| 4. | VI9131290170 | [1] | PIN | |
| 5. | VI5131210070 | [1] | ROTOR INNER | |
| 5. | VI5131250070 | [1] | ROTOR OUTER | |
| 6. | VI9098780840 | [1] | PIN | |
| 7. | VI8941761790 | [1] | STRAINER ASM. | |
| 7-1. | VI9133121400 | [1] | STRAINER ASM. | |
| 7-2. | VI8941365040 | [1] | STRAINER ASM. | |
| 7-3. | VI5131410140 | [1] | CASE | |
| 7-4. | VI5131400090 | [1] | STRAINER ASM. | |
| 7-5. | VI8944464080 | [1] | CASE ASM. | |
| 8. | VI5131280100 | [1] | PINION | |
| 9. | VI9019008250 | [1] | BOLT | KOBBOLT |
| 10. | VI9020408120 | [1] | BOLT | |
| 15. | VI9019708250 | [2] | BOLT | KOBOIL PUMP FIX. Superseded by part number: VI0506408250 |
