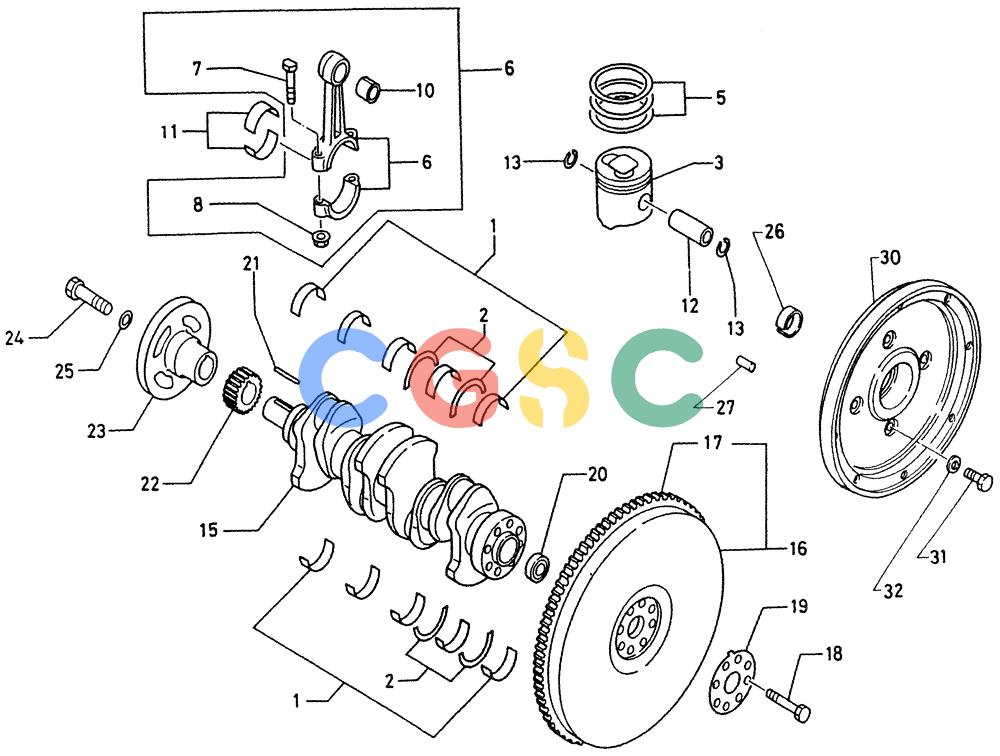

神钢零件查询(4JB1) - ISUZU DIESEL ENGINE - K903C EXCAVATOR (1/06-12/07) (01-007) - CRANK SHAFT, CRANK BRG., PISTON CONN. ROD & FLY WHEEL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
590 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VI8941685520 | [1] | KIT | KOBBEARING KIT, CRANK |
| 1-1. | VI8941685530 | [1] | BEARING KIT, CRANK | |
| 2. | VI8941685540 | [1] | SET OF STD MAIN BRGS | KOBTHRUST BEARING SET |
| 2-1. | VI8941685550 | [1] | THRUST BEARING SET | |
| 3. | VI8941527110 | [4] | PISTON | KOBPISTON Superseded by part number: VI8971766040 |
| 3-1. | VI8941527121 | [4] | PISTON | |
| 3-2. | VI8941698850 | [4] | PISTON | |
| 5. | VI8942478671 | [4] | RING | KOBRING SET, PISTON Superseded by part number: 8942478671 |
| 5-1. | VI8944082070 | [4] | RING SET, PISTON | |
| 6. | VI8942479652 | [4] | ROD ASM., CONN. | |
| 6-1. | VI8942490131 | [4] | CONNECTING ROD | KOBROD ASM., CONN. Superseded by part number: 8942490133 |
| 7. | VI5122350090 | [8] | SCREW | KOBBOLT, CONN ROD |
| 8. | VI5094090160 | [8] | NUT NUT, CONN ROD | NUT NUT, CONN ROD |
| 10. | VI8942479680 | [4] | BUSH, CONN ROD | |
| 11. | VI8941257470 | [4] | KIT | KOBBEARING SET, CONN. Superseded by part number: 87594036 |
| 12. | VI8942479700 | [4] | PIN, PISTON | |
| 12-1. | VI8941435220 | [4] | PIN, PISTON | |
| 13. | VI8941339690 | [8] | SNAP RING | KOBSNAP RING |
| 15. | VI8941233492 | [1] | CRANK SHAFT | |
| 15-1. | VI8941233502 | [1] | CRANK SHAFT | |
| 16. | VI8944063640 | [1] | FLYWHEEL ASM. | |
| 16-1. | VI8944228790 | [1] | FLYWHEEL ASM. | |
| 16-2. | VI8941701150 | [1] | FLYWHEEL ASM. | |
| 16-3. | VI8944104070 | [1] | FLYWHEEL ASM. | |
| 16-4. | VI8944314700 | [1] | FLYWHEEL ASM. | |
| 16-5. | VI8944228810 | [1] | FLYWHEEL ASM. | |
| 16-5. | VI8944432410 | [1] | FLYWHEEL ASM. | |
| 17. | VI5123330020 | [1] | DRIVEN GEAR | KOBRING GEAR |
| 17-1. | VI8942537370 | [1] | RING GEAR | |
| 17-2. | VI8941712900 | [1] | RING GEAR | |
| 18. | VI8941293720 | [8] | BOLT, FLYWHEEL FIX. | |
| 18-1. | VI5090001461 | [8] | BOLT, FLYWHEEL FIX. | |
| 18-2. | VI8944274560 | [8] | BOLT, FLYWHEEL FIX. | |
| 19. | VI8941421560 | [1] | WASHER, FLYWHEEL | |
| 20. | VI9000906790 | [1] | BEARING, BALL | |
| 20-1. | VI5098010010 | [1] | BEARING, BALL | |
| 21. | VI9080307430 | [1] | KEY, FEATHER | |
| 22. | VI8941397540 | [1] | GEAR, CRANK SHAFT | |
| 22-1. | VI8941723650 | [1] | GEAR, CRANK SHAFT | |
| 23. | VI8941293791 | [1] | PULLEY | |
| 23-1. | VI8944294230 | [1] | PULLEY | |
| 23-2. | VI8944297460 | [1] | PULLEY | KOBPULLEY |
| 23-3. | VI8941718970 | [1] | PULLEY | |
| 24. | VI8941537220 | [1] | BOLT, CRANK PULLEY | |
| 24-1. | VI9098026060 | [1] | BOLT, CRANK PULLEY | |
| 24-2. | VI5090002731 | [1] | BOLT, CRANK PULLEY | |
| 25. | VI5095031270 | [1] | WASHER | KOBWASHER, CRANK BOLT |
| 25-1. | VI1095030030 | [1] | WASHER, CRANK PULLEY | |
| 26. | VI8941739510 | [1] | SPACER, CRANK, REAR | |
| 27. | VI9081508250 | [1] | PIN, STRAIGHT | |
| 30. | VI5123310500 | [1] | FLYWHEEL, REAR | |
| 31. | VI9010660320 | [4] | BOLT, FLYWHEEL | |
| 32. | VI9098518660 | [4] | WASHER, BOLT | |
