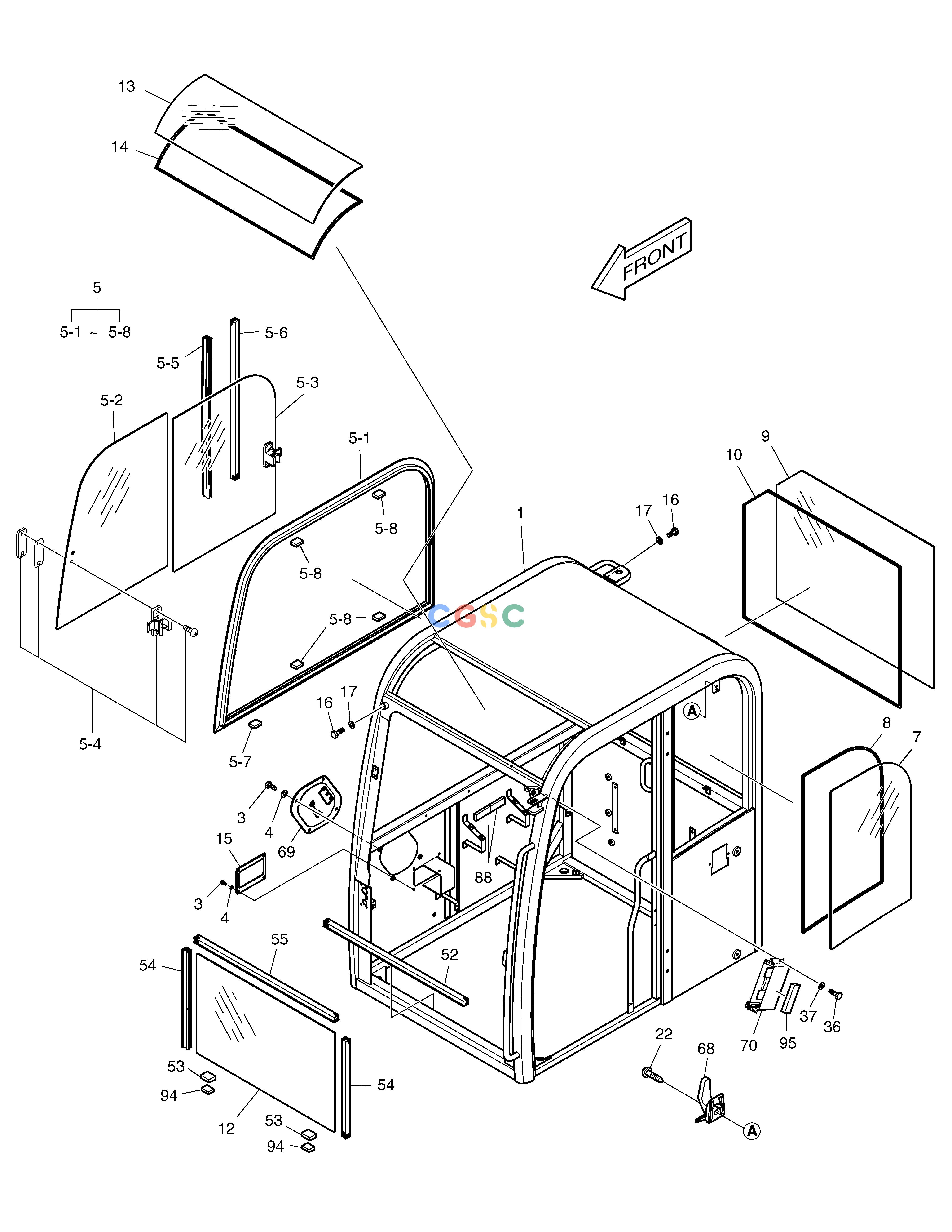

斗山零件查询CABIN(1) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
726 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00272A
|
[1] |
CABIN ASS'Y
|
622-00272C
|
| -. |
622-00272C
|
[1] |
CABIN ASS'Y
|
622-00272E
|
| -. |
622-00272E
|
[1] |
CABIN ASS'Y
|
622-00272G
|
| -. |
622-00272G
|
[1] |
CABIN ASS'Y
|
|
| 1. |
NA00296
|
[-] |
|
|
| 10. |
2160-2186
|
[1] |
DAMPER
|
|
| 12. |
903-00035A
|
[1] |
GLASS;FRONT(LOWER)
|
|
| 13. |
903-00036B
|
[1] |
GLASS;FRONT(UPPER)
|
|
| 14. |
2161-2186
|
[1] |
DAMPER
|
|
| 15. |
621-02284
|
[1] |
COVER
|
|
| 16. |
2120-2166D4
|
[4] |
BOLT
|
|
| 17. |
2114-1898D1
|
[4] |
WASHER
|
|
| 22. |
S3450953
|
[1] |
SCREW
|
|
| 3. |
2120-2166D5
|
[8] |
BOLT
|
|
| 36. |
2120-2166D3
|
[4] |
BOLT M10X1.5X65
|
|
| 37. |
2114-1898D3
|
[4] |
WASHER
|
|
| 4. |
2114-1898D2
|
[8] |
WASHER
|
|
| 5. |
622-00117A
|
[1] |
SASH ASS'Y
|
622-00117B
|
| 5. |
622-00117B
|
[1] |
SASH ASS'Y
|
|
| 5-1. |
622-00125A
|
[1] |
FRAME;SASH
|
622-00125B
|
| 5-1. |
622-00125B
|
[1] |
FRAME;SASH
|
|
| 5-2. |
903-00031
|
[1] |
GLASS
|
|
| 5-3. |
903-00032
|
[1] |
GLASS
|
|
| 5-4. |
2123-6120
|
[2] |
LOCK
|
2123-6119
|
| 5-4. |
2123-6119
|
[2] |
.. LOCK,SASH
|
|
| 5-5. |
2622-1265
|
[1] |
BAR
|
|
| 5-6. |
2161-1041
|
[1] |
STRIP
|
|
| 5-7. |
622-00122
|
[4] |
STOPPER;RUBBER
|
|
| 5-8. |
2161-6055
|
[4] |
STOPPER;GLASS
|
|
| 52. |
2198-1061
|
[1] |
RUBBER;TRIM
|
|
| 53. |
2161-2178
|
[2] |
STOPPER
|
|
| 54. |
2160-1026
|
[2] |
TRIM
|
|
| 55. |
198-00018A
|
[1] |
TRIM;RUBBER
|
|
| 68. |
2150-1133
|
[1] |
HOOK,COAT
|
|
| 69. |
621-01488A
|
[1] |
COVER
|
|
| 7. |
903-00029
|
[1] |
GLASS
|
|
| 70. |
195-01261A
|
[1] |
BRACKET;CASSETTE
|
|
| 8. |
2161-2186
|
[1] |
DAMPER
|
|
| 88. |
161-00348
|
[2] |
SPONGE
|
|
| 9. |
903-00030A
|
[1] |
GLASS
|
|
| 94. |
161-00396
|
[2] |
RUBBER;CABIN FRONT
|
|
| 95. |
161-00400
|
[1] |
SPONGE
|
|
