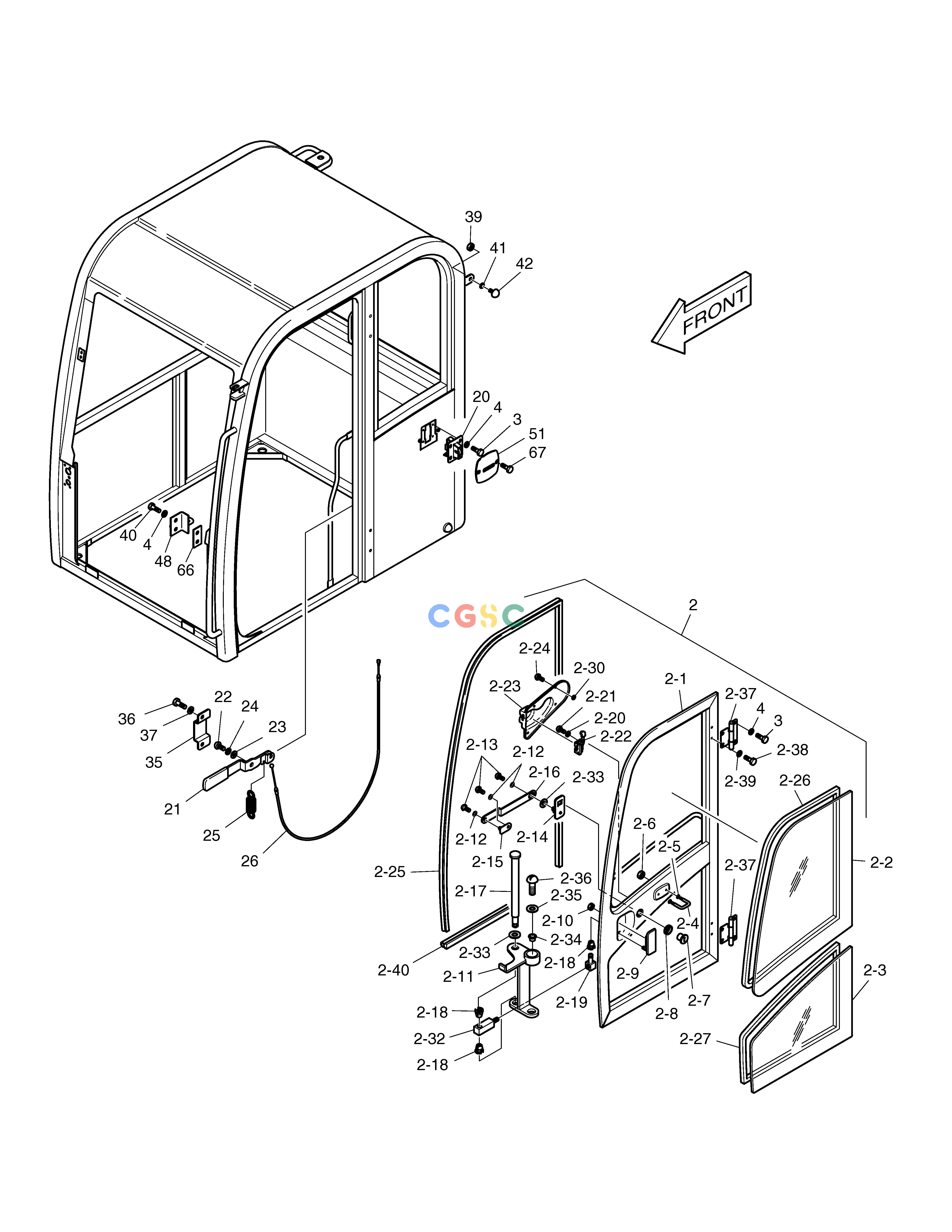

斗山零件查询CABIN(2) B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
437 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00272A
|
[1] |
CABIN ASS'Y
|
622-00272C
|
| -. |
622-00272C
|
[1] |
CABIN ASS'Y
|
622-00272E
|
| -. |
622-00272E
|
[1] |
CABIN ASS'Y
|
622-00272G
|
| -. |
622-00272G
|
[1] |
CABIN ASS'Y
|
|
| 2. |
622-00285B
|
[1] |
DOOR ASS'Y
|
|
| 2. |
622-00396A
|
[1] |
DOOR ASS'Y
|
|
| 2-1. |
622-00105E
|
[1] |
BODY;DOOR
|
|
| 2-1. |
622-00435
|
[1] |
BODY;DOOR
|
|
| 2-10. |
S4012303
|
[2] |
NUT
|
|
| 2-11. |
191-01613A
|
[1] |
PLATE;LOCK
|
|
| 2-12. |
S5100103
|
[3] |
WASHER
|
|
| 2-13. |
S3450563
|
[3] |
SCREW M4X0.7X8
|
|
| 2-14. |
2891-1234
|
[1] |
PLATE
|
|
| 2-15. |
191-01612A
|
[1] |
PLATE;LOCK
|
|
| 2-16. |
136-00036
|
[1] |
ROD;DOOR CATCH
|
|
| 2-17. |
136-00037
|
[1] |
ROD;DOOR INNER
|
|
| 2-18. |
2124-1689A
|
[3] |
. SNAP
|
|
| 2-19. |
2123-2247
|
[1] |
. PIN
|
|
| 2-2. |
903-00026
|
[1] |
GLASS
|
|
| 2-20. |
S5210203
|
[4] |
WASHER;TOOTHED
|
|
| 2-21. |
S3452873
|
[4] |
SCREW M5X0.8X25
|
|
| 2-22. |
125-00004
|
[1] |
CATCH
|
|
| 2-23. |
621-02432
|
[1] |
COVER;DOOR INNER
|
|
| 2-24. |
2120-2166D18
|
[5] |
SCREW
|
|
| 2-25. |
198-00019C
|
[1] |
RUBBER;TRIM 3800mm
|
|
| 2-26. |
2161-2186
|
[1] |
DAMPER
|
|
| 2-27. |
2161-2186
|
[1] |
DAMPER
|
|
| 2-3. |
903-00027
|
[1] |
GLASS
|
|
| 2-30. |
161-00450
|
[4] |
RUBBER;CUSHION
|
|
| 2-32. |
191-02155
|
[1] |
ROD;DOOR INNER
|
|
| 2-33. |
S5010313
|
[2] |
WASHER
|
|
| 2-34. |
110-00156
|
[1] |
BUSH
|
|
| 2-35. |
S5000213
|
[1] |
. WASHER
|
|
| 2-36. |
S3450813
|
[1] |
SCREW
|
|
| 2-37. |
171-00021A
|
[2] |
HINGE
|
171-00061
|
| 2-37. |
171-00061
|
[2] |
HINGE
|
|
| 2-38. |
2120-2166D5
|
[4] |
BOLT
|
|
| 2-39. |
2114-1898D2
|
[4] |
WASHER
|
|
| 2-4. |
2150-1132A
|
[1] |
. HOOK,CATCH DOOR
|
|
| 2-40. |
198-00033C
|
[1] |
RUBBER;TRIM 710mm
|
|
| 2-5. |
2114-1898D2
|
[2] |
WASHER
|
|
| 2-6. |
S4012533
|
[2] |
NUT
|
|
| 2-7. |
2172-9035
|
[1] |
KEY ASS'Y
|
|
| 2-8. |
2161-2486
|
[1] |
RUBBER
|
|
| 2-9. |
2172-9021
|
[1] |
. HANDLE,OUTER
|
|
| 20. |
2125-9055
|
[1] |
. LOCK;BACK
|
|
| 21. |
133-00118
|
[1] |
LEVER ASS'Y
|
|
| 22. |
S3450953
|
[1] |
SCREW
|
|
| 23. |
S5010313
|
[1] |
WASHER
|
|
| 24. |
S5102303
|
[1] |
. WASHER
|
|
| 25. |
2129-1446
|
[1] |
SPRING
|
|
| 26. |
127-00009
|
[1] |
WIRE ASS'Y
|
|
| 3. |
2120-2166D5
|
[8] |
BOLT
|
|
| 35. |
621-01114
|
[1] |
COVER
|
|
| 36. |
2120-2166D3
|
[2] |
BOLT M10X1.5X65
|
|
| 37. |
2114-1898D3
|
[2] |
WASHER
|
|
| 39. |
2121-1311D4
|
[2] |
NUT
|
|
| 4. |
2114-1898D2
|
[10] |
WASHER
|
|
| 40. |
2120-2166D5
|
[2] |
BOLT
|
|
| 41. |
2114-1898D15
|
[2] |
WASHER
|
|
| 42. |
161-00195
|
[2] |
STOPPER
|
|
| 48. |
191-01435B
|
[1] |
STRIKER
|
|
| 51. |
621-01174A
|
[1] |
COVER;BACK LOCK
|
|
| 66. |
114-00409
|
[2] |
SHIM
|
|
| 67. |
2120-2166D8
|
[2] |
BOLT
|
|
