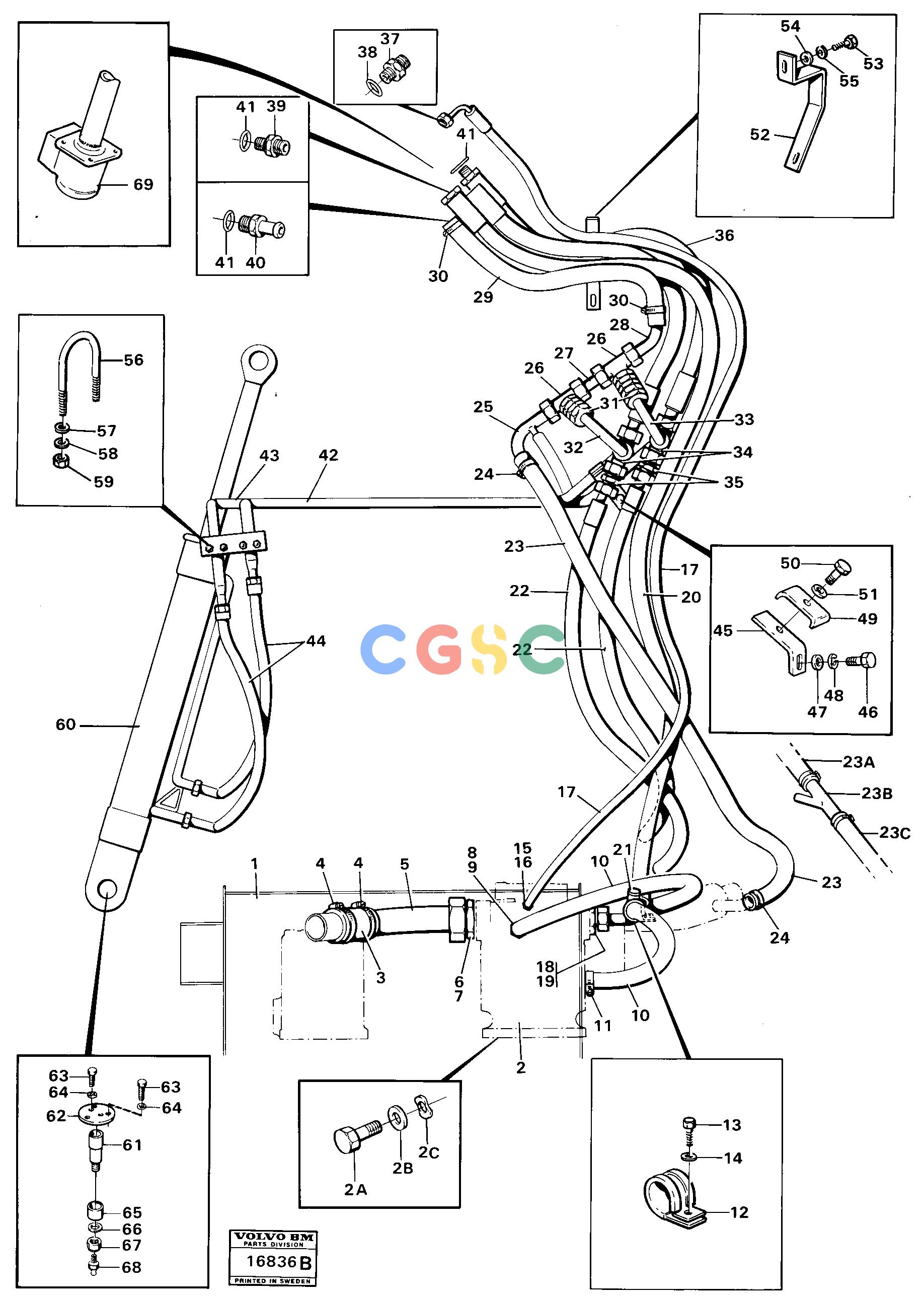

沃尔沃零件查询4300 Steering system prod no 33106, 331074300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Tank
|
|
| |
|
|
None
|
|
| 2. |
VOE4929858
|
[1] |
Piston pump
|
|
| 2A. |
VOE13970972
|
[2] |
Hexagon screw
|
|
| 2B. |
VOE60110353
|
[2] |
Washer
|
|
| 2C. |
VOE940280
|
[2] |
Spring washer
|
|
| 3. |
VOE4929667
|
[1] |
Suction hose
|
|
| 4. |
VOE930810
|
[2] |
Hose clamp
|
|
| 5. |
VOE4932111
|
[1] |
Tube
|
|
| 6. |
VOE963983
|
[1] |
Nipple
|
|
| 7. |
VOE964119
|
[1] |
O-ring
|
|
| 8. |
VOE4929654
|
[1] |
Nipple
|
|
| 9. |
VOE943563
|
[1] |
O-ring
|
|
| 10. |
VOE14016472
|
[REQ] |
Oil hose
|
|
| 11. |
VOE926244
|
[0002] |
Hose clamp
|
|
| 12. |
VOE943717
|
[0001] |
Clamp
|
|
| 13. |
VOE940199
|
[0001] |
Hexagon screw
|
|
| 14. |
VOE13941907
|
[0001] |
Washer
|
|
| 15. |
VOE13963975
|
[0001] |
Nipple
|
|
| 16. |
VOE964111
|
[0001] |
O-ring
|
|
| 17. |
VOE932355
|
[0001] |
Hose assembly
|
|
| 18. |
VOE4929653
|
[0001] |
Nipple
|
|
| 19. |
VOE964117
|
[0001] |
O-ring
|
|
| 20. |
VOE932279
|
[0001] |
Hose assembly
|
|
| 21. |
VOE930032
|
[1] |
Testing nipple
|
|
| 22. |
VOE931633
|
[2] |
Hose assembly
|
|
| 23. |
VOE14016472
|
[REQ] |
Oil hose
|
L = 560, SER NO - 3967
|
| 23A. |
VOE14016472
|
[REQ] |
Oil hose
|
L= 1300, SER NO 3968 -
|
| 23B. |
VOE4927195
|
[1] |
Tube
|
SER NO 3968 -
|
| 23C. |
VOE14016472
|
[REQ] |
Oil hose
|
L = 670, SER NO 3968 -
|
| 24. |
VOE926244
|
[2] |
Hose clamp
|
|
| 25. |
VOE4932250
|
[1] |
Pipe elbow
|
SER NO - 3967
|
| 26. |
VOE946391
|
[2] |
T-nipple
|
SER NO - 3967
|
| 27. |
|
[1] |
Pipe
|
|
| 28. |
VOE4932259
|
[1] |
Pipe elbow
|
SER NO - 3967
|
| 29. |
VOE14016472
|
[REQ] |
Oil hose
|
|
| 30. |
VOE926244
|
[2] |
Hose clamp
|
|
| 31. |
VOE4880718
|
[2] |
Non-return valve
|
SER NO - 3967
|
| 32. |
VOE4932257
|
[0001] |
Pipe elbow
|
|
| |
|
|
None
|
SER NO -3100
|
| |
VOE4932257
|
[0002] |
Pipe elbow
|
|
| |
|
|
None
|
SER NO 3101 - 3967
|
| 33. |
VOE4932257
|
[0001] |
Pipe elbow
|
SER NO -3100
|
| 34. |
VOE4880717
|
[0002] |
Nipple
|
SER NO - 3967
|
| |
VOE957126
|
[0002] |
T-nipple
|
SER NO 3968 -
|
| 35. |
VOE4880719
|
[0002] |
Reduction
|
|
| 36. |
VOE931771
|
[0002] |
Hose assembly
|
|
| |
VOE990739
|
[0002] |
O-ring
|
|
| 37. |
VOE13963958
|
[0001] |
Nipple
|
|
| 38. |
VOE958225
|
[0001] |
O-ring
|
|
| 39. |
VOE957033
|
[0001] |
Nipple
|
|
| 40. |
VOE930008
|
[0001] |
Nipple
|
|
| 41. |
VOE958227
|
[0004] |
O-ring
|
|
| 42. |
VOE4763753
|
[0001] |
Tube
|
|
| 43. |
VOE4763751
|
[0001] |
Tube
|
|
| 44. |
VOE931616
|
[0002] |
Hose assembly
|
|
| |
VOE990738
|
[0002] |
O-ring
|
|
| 45. |
VOE4763745
|
[0001] |
Anchorage
|
|
| 46. |
VOE970945
|
[0001] |
Hexagon screw
|
|
| 47. |
VOE976945
|
[0001] |
Washer
|
|
| 48. |
VOE941908
|
[0001] |
Spring washer
|
|
| 49. |
|
[0001] |
Clamp
|
|
| 50. |
VOE60111880
|
[0001] |
Hexagon screw
|
|
| 51. |
VOE13941907
|
[0001] |
Washer
|
|
| 52. |
VOE4763759
|
[0001] |
Retainer
|
|
| 53. |
VOE940199
|
[0002] |
Hexagon screw
|
|
| 54. |
VOE13955894
|
[0002] |
Washer
|
|
| 55. |
VOE13941907
|
[0002] |
Washer
|
|
| 56. |
VOE4762999
|
[0002] |
Clamp
|
|
| 57. |
VOE955892
|
[0002] |
Plain washer
|
|
| 58. |
VOE13941906
|
[0002] |
Washer
|
|
| 59. |
VOE13955781
|
[0002] |
Nut
|
|
| 60. |
VOE4850440
|
[0002] |
Hydraulic cylinder
|
|
| 61. |
VOE4850430
|
[0004] |
Pin
|
|
| 62. |
VOE4740397
|
[0004] |
Washer
|
|
| 63. |
VOE13955295
|
[0020] |
Screw
|
|
| 64. |
VOE13941907
|
[0016] |
Washer
|
|
| 65. |
VOE4850431
|
[0004] |
Bushing
|
|
| 66. |
VOE60113303
|
[0004] |
Washer
|
|
| 67. |
VOE60114213
|
[0004] |
Lock nut
|
|
| 68. |
VOE914167
|
[0004] |
Lubricating nipple
|
|
| 69. |
VOE4881278
|
[0001] |
Steering column
|
|
| |
|
|
None
|
|
