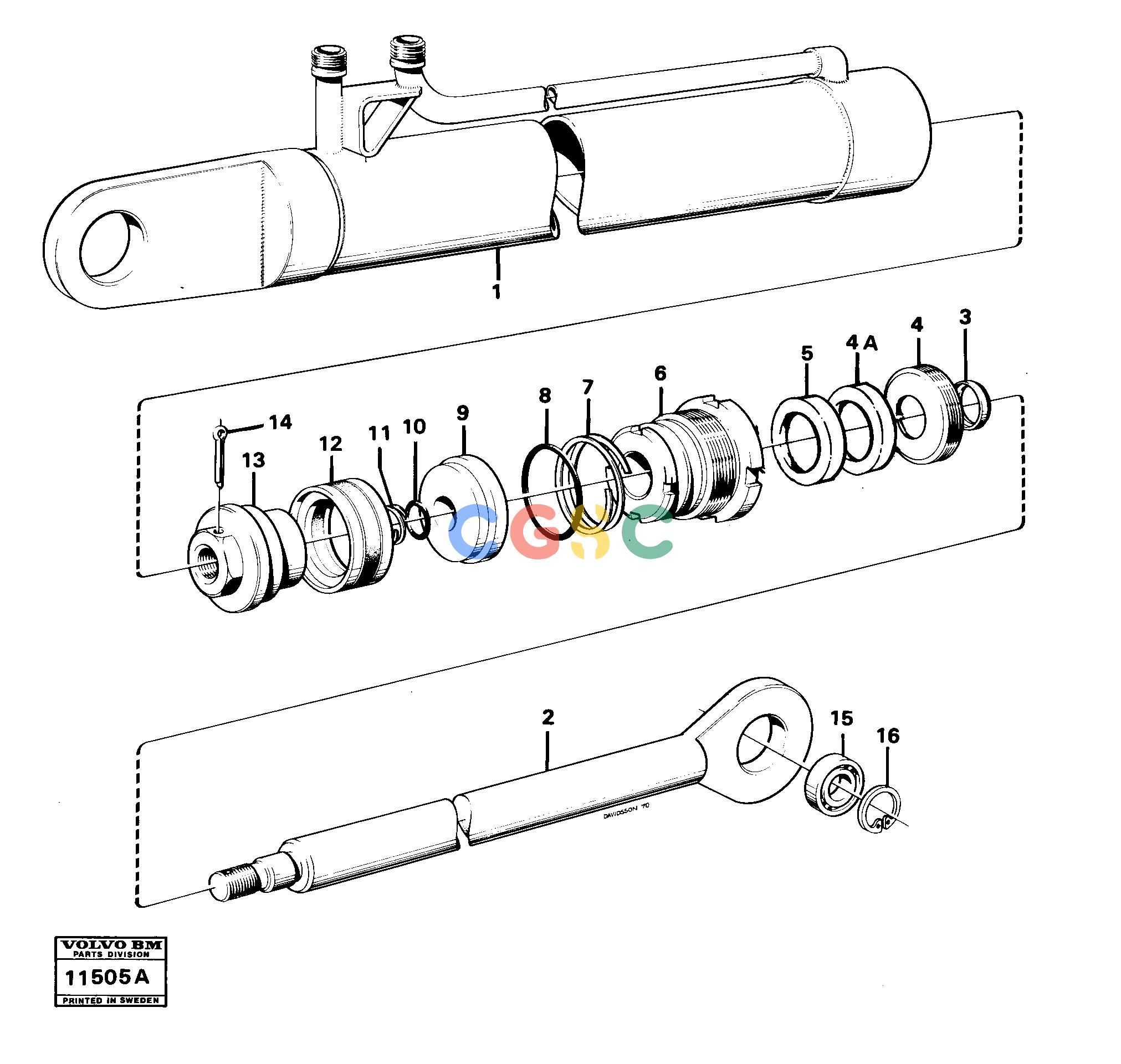

沃尔沃零件查询4300 Hydraulic cylinder43004739055 (33100,33105)-4850440 (33106,33107)NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
VOE4740380
|
[1] |
Piston rod
|
|
| |
VOE4784989
|
|
Piston rod
|
|
| 3. |
VOE11005071
|
[1] |
Scraper
|
|
| 4. |
VOE4741264
|
[0001] |
Retainer
|
|
| 4A. |
VOE4784035
|
[0001] |
Spacer ring
|
|
| |
VOE4739055
|
[1] |
Hydraulic cylinder
|
|
| 5. |
VOE4784057
|
[0001] |
Piston rod seal
|
|
| 6. |
VOE4763765
|
[0001] |
Cyl Head Nut
|
|
| 7. |
VOE4881005
|
[0001] |
Back-up ring
|
|
| 8. |
VOE925074
|
[0001] |
O-ring
|
|
| 9. |
VOE4740383
|
[0001] |
Washer
|
|
| 10. |
VOE949658
|
[0001] |
O-ring
|
|
| 11. |
VOE943709
|
[0001] |
Back-up ring
|
|
| 12. |
VOE15062967
|
[0001] |
Piston seal
|
|
| 13. |
VOE4740384
|
[0001] |
Piston
|
|
| 14. |
VOE13907875
|
[0001] |
Cotter Pin
|
|
| |
VOE4850440
|
|
Hydraulic cylinder
|
|
| 15. |
VOE183433
|
[0002] |
Spherical plain bearing
|
|
| |
VOE4787549
|
|
Spherical plain bearing
|
|
| 16. |
VOE914526
|
[0004] |
Retaining ring
|
|
| |
VOE914530
|
|
Retaining ring
|
|
| |
VOE6630284
|
[0001] |
Gasket Kit
|
|
| |
VOE6630574
|
[0001] |
Gasket kit
|
|
| 1. |
VOE4739029
|
[1] |
Cylinder tube
|
|
| |
VOE4850441
|
|
Cylinder tube
|
|
