沃尔沃零件查询4300 Valve section4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
516 次

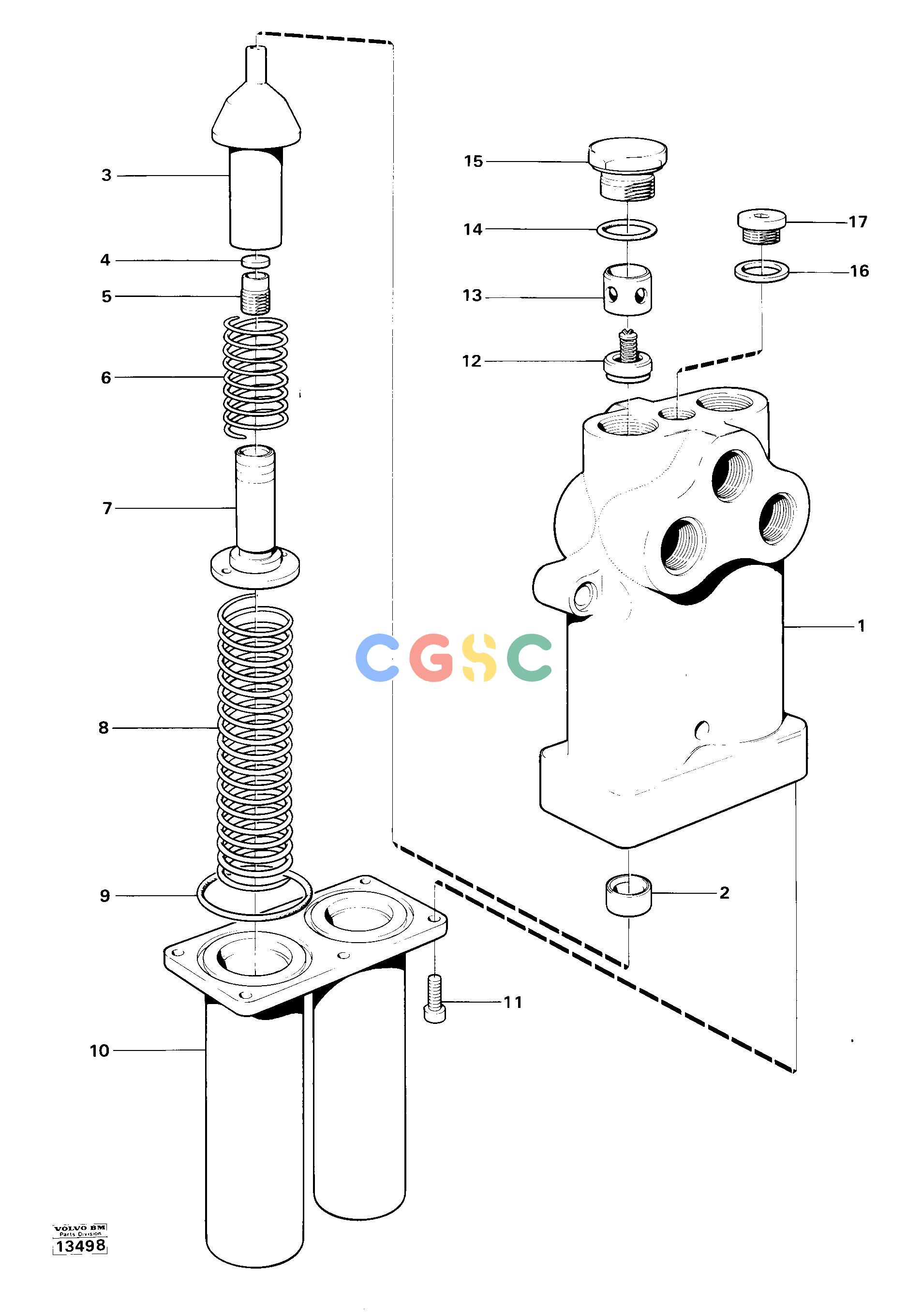

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4749852
|
[0002] |
Filter
|
|
| 5. |
VOE4749848
|
[0002] |
Nozzle
|
|
| 6. |
VOE4749854
|
[0002] |
Piston spring
|
|
| 7. |
VOE4824026
|
[0002] |
Piston
|
|
| 8. |
VOE4749851
|
[0002] |
Spring
|
|
| |
VOE4824012
|
[0001] |
Valve
|
|
| 9. |
VOE960226
|
[0002] |
O-ring
|
|
| 10. |
|
[0002] |
Spring Housing
|
|
| 11. |
VOE959222
|
[0006] |
Hex. socket screw
|
|
| 12. |
VOE4787060
|
[0002] |
Non-return valve
|
|
| 13. |
VOE4824002
|
[0002] |
Spacer sleeve
|
|
| 14. |
VOE958228
|
[0002] |
O-ring
|
|
| 15. |
VOE941374
|
[0002] |
Plug
|
|
| 16. |
VOE14042936
|
[0001] |
Sealing washer
|
|
| 17. |
VOE944506
|
[0001] |
Plug
|
|
| 1. |
|
[0001] |
Housing
|
|
| 2. |
|
[0002] |
Valve seat
|
|
| 3. |
VOE4824027
|
[0002] |
Peg
|
|
