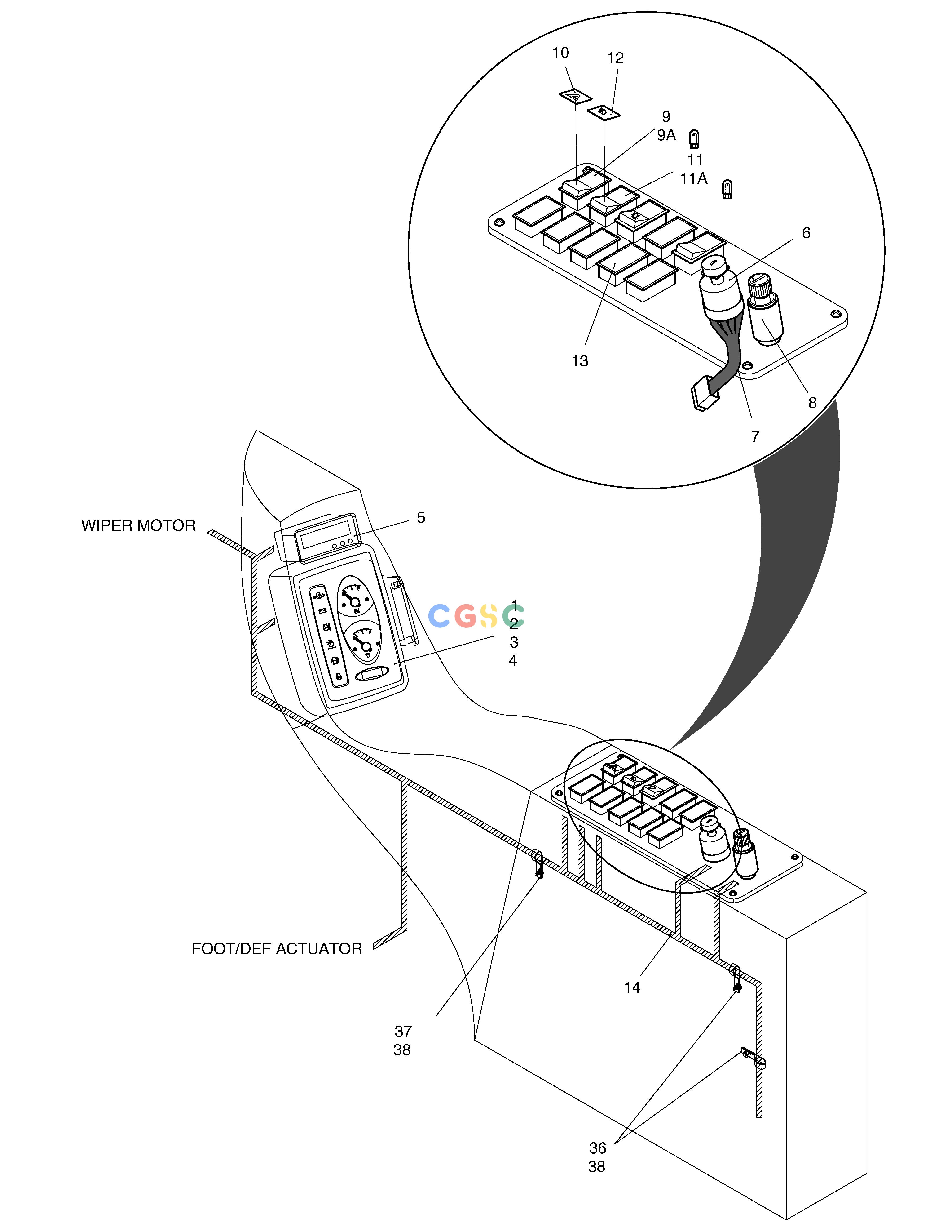

斗山零件查询ELECTRIC PARTS(1)-GAUGE & SWITCH PANEL B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
521 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00225A
|
[-] |
ELECTRIC PARTS
|
|
| 1. |
539-00036
|
[1] |
PANEL;GAUGE
|
|
| 10. |
2190-2036D2
|
[1] |
INSERT;HAZARD
|
|
| 11. |
2549-9115
|
[1] |
SWITCH;ROCKER(12V)
|
|
| 11A. |
K9000354
|
[1] |
LAMP;PILOT
|
|
| 12. |
2190-2036D5
|
[1] |
INSERT;WORKING LAMP
|
|
| 13. |
2621-9002
|
[8] |
COVER
|
|
| 14. |
530-00302
|
[1] |
HARNESS;SWITCH BOX
|
|
| 2. |
S3450973
|
[4] |
SCREW M6X1.0X16
|
|
| 3. |
S5102303
|
[4] |
. WASHER
|
|
| 36. |
124-00208D3
|
[2] |
CLIP
|
|
| 37. |
124-00208D2
|
[1] |
CLAMP
|
|
| 38. |
2121-1305
|
[3] |
NUT
|
|
| 4. |
S5010313
|
[4] |
WASHER
|
|
| 5. |
528-00039
|
[1] |
CLOCK
|
528-00039A
|
| 5. |
528-00039A
|
[1] |
CLOCK
|
|
| 6. |
549-00011
|
[1] |
SWITCH;STARTER
|
|
| 6A. |
172-00007
|
[1] |
KEY(D100)
|
|
| 7. |
530-00150
|
[1] |
HARNESS;STARTER SWITCH
|
|
| 8. |
545-00002
|
[1] |
LIGHTER;CIGAR
|
|
| 9. |
549-00007
|
[1] |
SWITCH;HAZARD
|
|
| 9A. |
K9000354
|
[1] |
LAMP;PILOT
|
|
