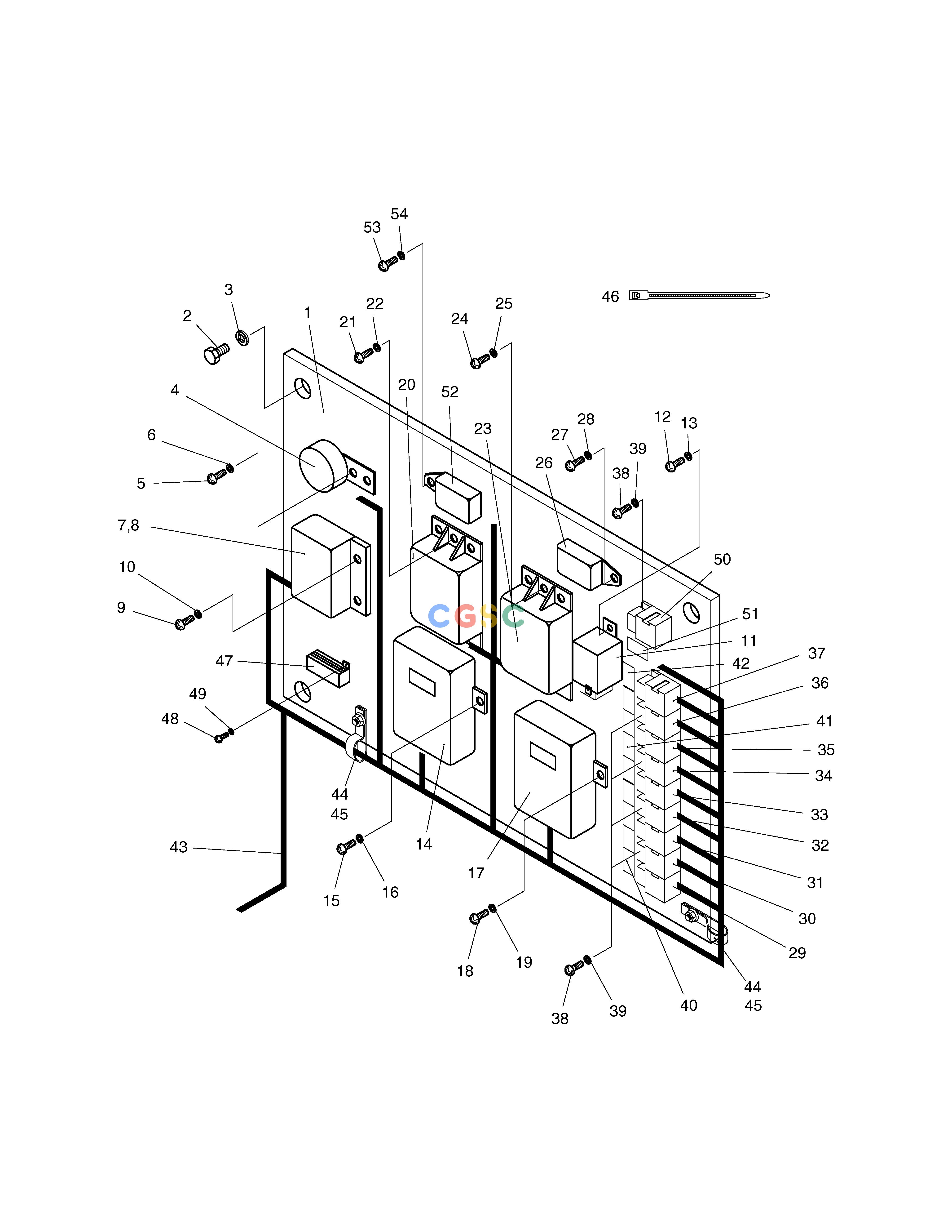

斗山零件查询ELECTRIC BOX ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00224A
|
[1] |
ELECTRIC PLATE ASS'Y
|
|
| -. |
500-00224B
|
[1] |
ELECTRIC PLATE ASS'Y
|
|
| -. |
500-00224C
|
[1] |
ELECTRIC PLATE ASS'Y
|
|
| 1. |
512-00035A
|
[1] |
PLATE;ELECTRIC
|
|
| 10. |
S5102303
|
[2] |
. WASHER
|
|
| 11. |
2525-1012
|
[1] |
UNIT;BLINKER
|
|
| 12. |
S3450943
|
[1] |
SCREW
|
|
| 13. |
S5102303
|
[1] |
. WASHER
|
|
| 14. |
543-00080
|
[1] |
UNIT;CONTROL
|
|
| 15. |
S3450953
|
[2] |
SCREW
|
|
| 16. |
S5102303
|
[2] |
. WASHER
|
|
| 17. |
543-00042
|
[1] |
CONTROLLER;AIRCON
|
|
| 18. |
S3450953
|
[2] |
SCREW
|
|
| 19. |
S5102303
|
[2] |
. WASHER
|
|
| 2. |
S0509053
|
[4] |
. BOLT
|
|
| 20. |
2523-9005
|
[1] |
CONTROLLER;STARTER
|
|
| 21. |
S3450953
|
[2] |
SCREW
|
|
| 22. |
S5102303
|
[2] |
. WASHER
|
|
| 23. |
537-00070A
|
[1] |
TIMER;WIPER
|
|
| 24. |
S3450953
|
[2] |
SCREW
|
|
| 25. |
S5102303
|
[2] |
. WASHER
|
|
| 26. |
537-00010
|
[1] |
TIMER;PREHEAT
|
|
| 27. |
S3450943
|
[1] |
SCREW
|
|
| 28. |
S5102303
|
[1] |
. WASHER
|
|
| 29. |
2544-9032
|
[1] |
RELAY
|
|
| 3. |
S5102503
|
[4] |
. WASHER
|
|
| 30. |
2544-9032
|
[1] |
RELAY
|
|
| 31. |
2544-9032
|
[1] |
RELAY
|
|
| 32. |
2544-9032
|
[1] |
RELAY
|
|
| 33. |
2544-9032
|
[1] |
RELAY
|
|
| 34. |
2544-9032
|
[1] |
RELAY
|
|
| 35. |
2544-9032
|
[1] |
RELAY
|
|
| 36. |
2544-9032
|
[1] |
RELAY
|
|
| 37. |
2544-9032
|
[1] |
RELAY
|
|
| 38. |
S3450823
|
[4] |
SCREW
|
|
| 39. |
S5100203
|
[4] |
WASHER
|
|
| 4. |
2516-1104
|
[1] |
BUZZER;PILOT
|
|
| 40. |
2190-2037D66
|
[1] |
PLATE;NAME
|
|
| 41. |
2190-2037D59
|
[1] |
PLATE;NAME
|
|
| 42. |
2190-2037D60
|
[1] |
PLATE;NAME
|
|
| 43. |
530-00343A
|
[1] |
HARNESS;ELECTRIC BOX
|
|
| 43. |
530-00343B
|
[1] |
HARNESS;ELECTRIC BOX
|
|
| 43. |
530-00343C
|
[1] |
HARNESS;ELECTRIC BOX
|
|
| 44. |
124-00208D4
|
[2] |
CLIP
|
|
| 45. |
2121-1305
|
[2] |
NUT
|
|
| 46. |
2124-1622D1
|
[10] |
CLIP,BAND
|
|
| 47. |
545-00007
|
[1] |
RESISTOR
|
|
| 48. |
S3450333
|
[2] |
SCREW M3X0.8X8
|
|
| 49. |
S5100003
|
[2] |
WASHER
|
|
| 5. |
S3450943
|
[2] |
SCREW
|
|
| 50. |
2544-9032
|
[1] |
RELAY
|
|
| 51. |
2190-2037D67
|
[1] |
PLATE;NAME
|
|
| 52. |
537-00071
|
[1] |
TIMER;ENGINE STOP
|
|
| 53. |
S3450953
|
[1] |
SCREW
|
|
| 54. |
S5102303
|
[1] |
. WASHER
|
|
| 6. |
S5102303
|
[2] |
. WASHER
|
|
| 7. |
570-00001
|
[1] |
BOX;FUSE
|
|
| 7. |
570-00001A
|
[1] |
BOX;FUSE
|
|
| 8. |
190-01053
|
[1] |
PLATE;NAME
|
|
| 9. |
S3450983
|
[2] |
SCREW
|
|
