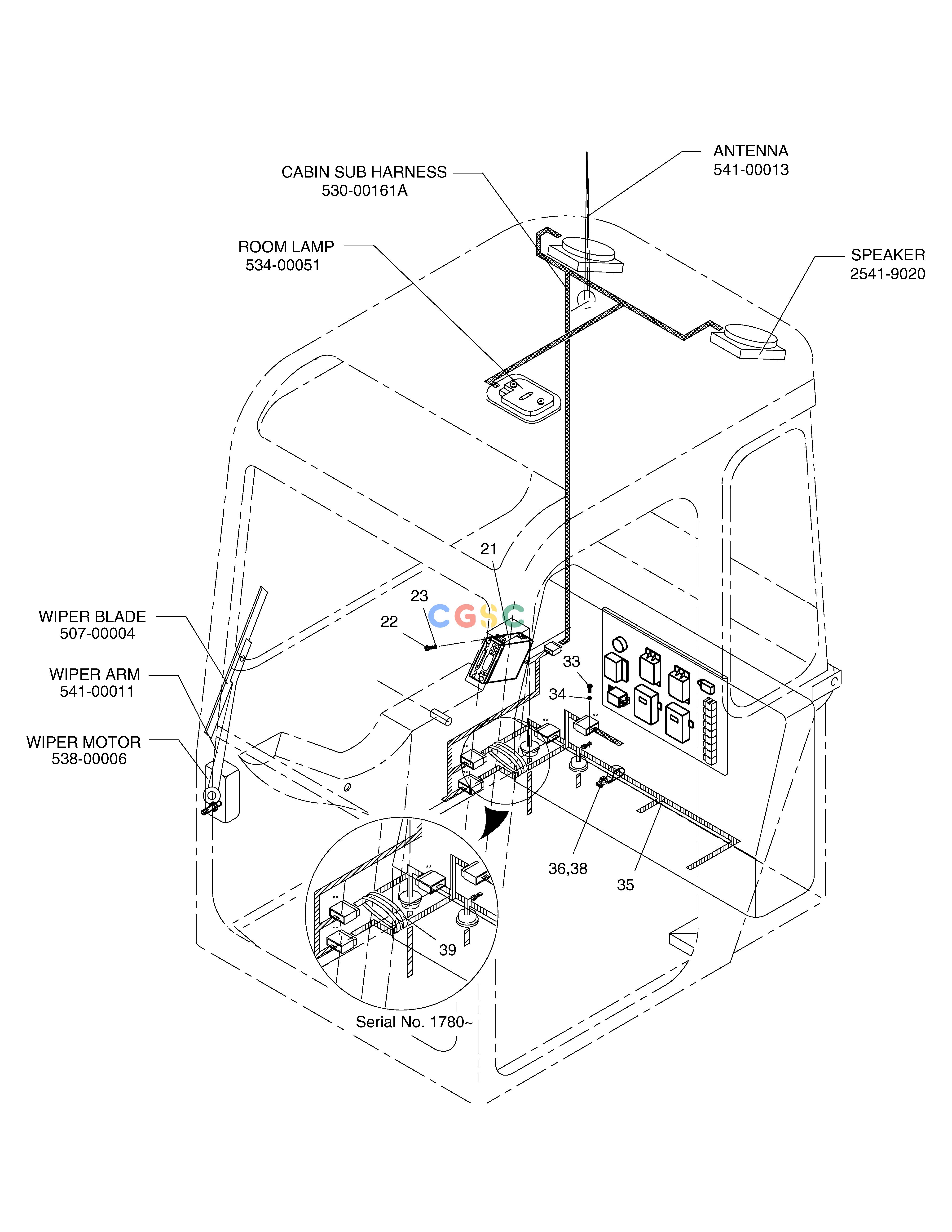

斗山零件查询ELECTRIC PARTS(3)-CABIN B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00225A
|
[-] |
ELECTRIC PARTS
|
|
| -. |
500-00225B
|
[-] |
ELECTRIC PARTS
|
|
| 21. |
541-00014
|
[1] |
CAR STEREO 12V
|
541-00014A
|
| 21. |
541-00014A
|
[1] |
CAR STEREO 12V
|
|
| 22. |
S3450823
|
[4] |
SCREW
|
|
| 23. |
S5100203
|
[4] |
WASHER
|
|
| 33. |
S3450943
|
[1] |
SCREW
|
|
| 34. |
S5102303
|
[1] |
. WASHER
|
|
| 35. |
530-00346A
|
[1] |
HARNESS;CABIN
|
|
| 35. |
530-00346B
|
[1] |
HARNESS;CABIN
|
|
| 36. |
124-00208D3
|
[1] |
CLIP
|
|
| 38. |
2121-1305
|
[1] |
NUT
|
|
| 39. |
K1014327
|
[1] |
PROTECTOR
|
|
