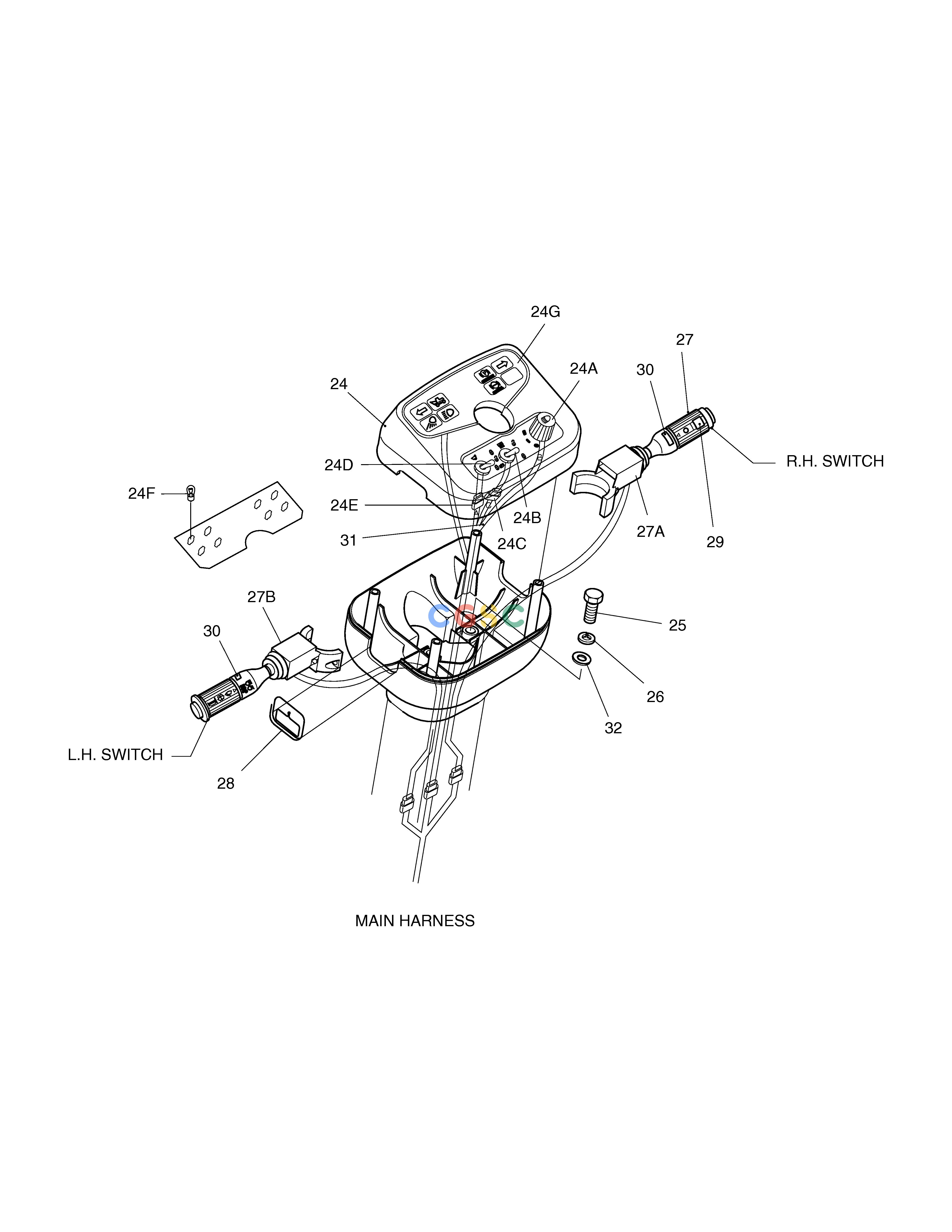

斗山零件查询ELECTRIC PARTS(4)-CONSOLE BOX B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00225A
|
[-] |
ELECTRIC PARTS
|
|
| 24. |
539-00054B
|
[1] |
CONSOLE BOX ASS'Y
|
|
| 24A. |
2549-1132D12
|
[1] |
SWITCH;LAMP
|
|
| 24B. |
2549-9096
|
[1] |
SWITCH;TOGGLE
|
|
| 24C. |
4530-1484
|
[1] |
HARNESS;TOGGLE SWITCH
|
|
| 24D. |
2549-9099
|
[1] |
SWITCH;BRAKE SELECT
|
|
| 24E. |
530-00033
|
[1] |
HARNESS;TOGGLE SWITCH
|
|
| 24F. |
2515-1030
|
[8] |
BULB 14V 3W
|
|
| 24G. |
190-00797A
|
[1] |
PLATE;CONSOLE
|
|
| 25. |
S0512253
|
[2] |
BOLT M10X1.5X30
|
|
| 26. |
S5102603
|
[2] |
. WASHER
|
|
| 27. |
2549-9118
|
[1] |
SWITCH;COMBINATION
|
|
| 27A. |
2549-9116
|
[1] |
SWITCH ASS'Y(R.H)
|
|
| 27B. |
2549-9117
|
[1] |
SWITCH ASS'Y(L.H)
|
|
| 28. |
2110-1344
|
[2] |
BUSHING;RUBBER
|
|
| 29. |
190-00195
|
[1] |
LABEL;T/M SWITCH
|
|
| 30. |
190-00196
|
[2] |
LABEL;T/M SWITCH(SPEED)
|
|
| 31. |
530-00345
|
[1] |
HARNESS;CONSOLE
|
|
| 32. |
S5010613
|
[2] |
WASHER
|
|
