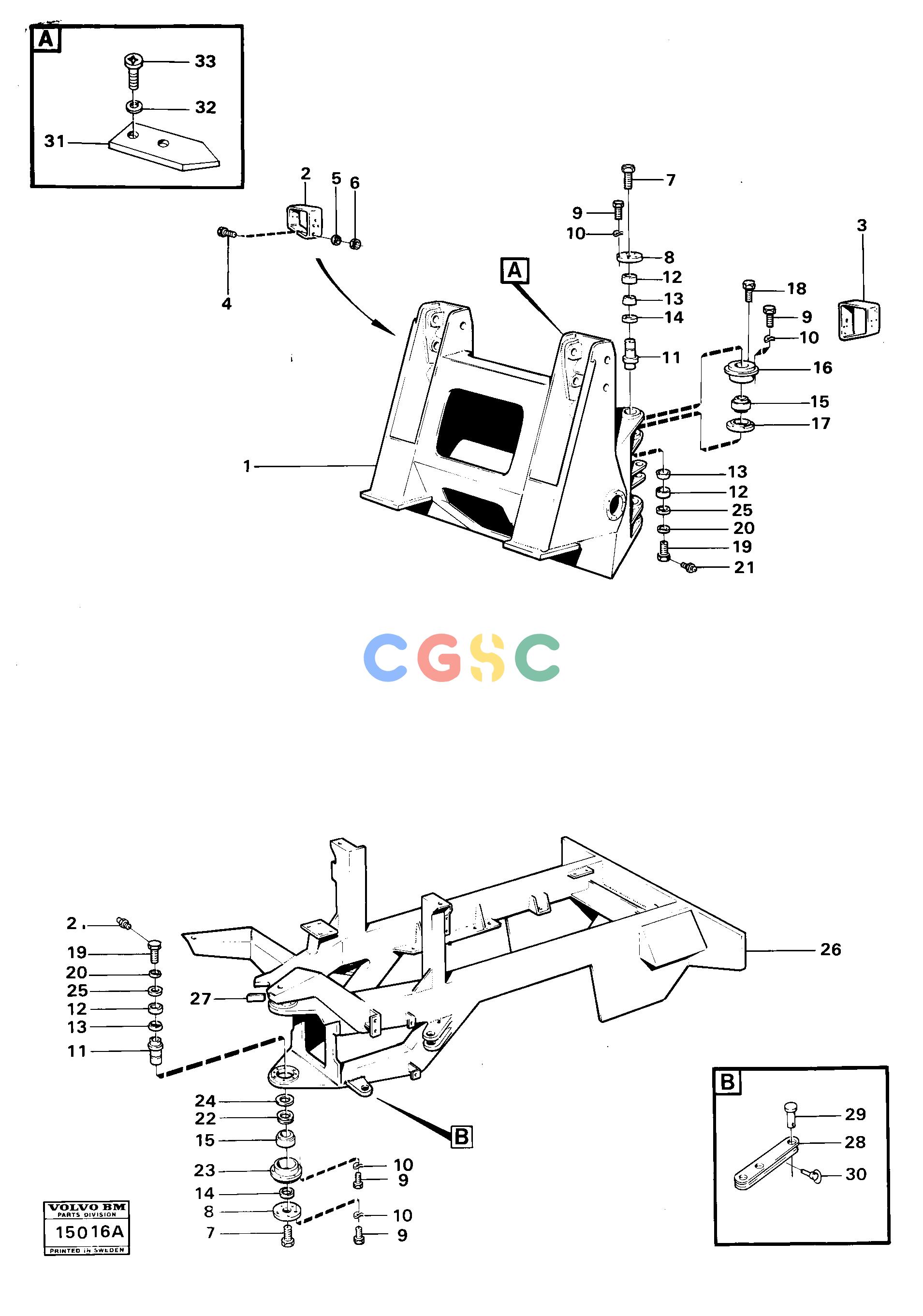

沃尔沃零件查询4300 Frame4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE4763595
|
[0001] |
Cover Plate
|
V SER NO -2216
|
| |
VOE4850321
|
[0001] |
Cover Plate
|
V SER NO 2217-
|
| 4. |
VOE13970949
|
[0006] |
Hexagon screw
|
SER NO -2216
|
| |
VOE13970948
|
[0006] |
Hexagon screw
|
SER NO 2217-
|
| 5. |
VOE13960143
|
[0006] |
Washer
|
SER NO -2216
|
| 1. |
VOE4926530
|
[0001] |
Support frame
|
PROD NO 33100, 33105.
|
| |
VOE13940109
|
[0006] |
Lock washer
|
SER NO 2217-
|
| 6. |
VOE13971089
|
[0006] |
Lock nut
|
SER NO -2216
|
| |
VOE971071
|
[0006] |
Hexagon nut
|
SER NO 2217-
|
| 7. |
VOE13955403
|
[0002] |
Screw
|
|
| 8. |
VOE4924231
|
[0002] |
Plate
|
|
| 9. |
VOE13970971
|
[0020] |
Hexagon screw
|
|
| 10. |
VOE940280
|
[0020] |
Spring washer
|
|
| 11. |
VOE4924230
|
[0002] |
Pin
|
|
| 12. |
VOE4743500
|
[0006] |
Bushing
|
|
| 13. |
VOE4743501
|
[0006] |
Bushing
|
|
| |
VOE4929660
|
[0001] |
Support frame
|
PROD NO 33106, 33107.
|
| 14. |
VOE4947078
|
[0002] |
Bushing
|
|
| 15. |
VOE784313
|
[0002] |
Link bearing
|
SER NO - 4540
|
| |
VOE784313
|
[0001] |
Link bearing
|
SER NO 4541 -
|
| |
VOE4881112
|
[1] |
Link bearing
|
SER NO 4541 -
|
| 16. |
VOE4926981
|
[1] |
Bearing Race
|
SER NO - 4540
|
| |
VOE4947077
|
[1] |
Bearing carrier
|
SER NO 4541 -
|
| 17. |
VOE4924232
|
[1] |
Washer
|
|
| 18. |
VOE959242
|
[6] |
Hex. socket screw
|
|
| 19. |
VOE4924235
|
[2] |
Screw
|
|
| 20. |
VOE60113303
|
[2] |
Washer
|
|
| 2. |
VOE4763594
|
[0001] |
Cover Plate
|
H SER NO -2216
|
| 21. |
VOE914167
|
[2] |
Lubricating nipple
|
|
| 22. |
VOE4787158
|
[2] |
Ring
|
|
| 23. |
VOE4763111
|
[1] |
Bearing race
|
|
| 24. |
VOE4739196
|
[2] |
Protecting plate
|
|
| 25. |
VOE4924234
|
[2] |
Plate
|
|
| 26. |
VOE4924105
|
[1] |
Support frame
|
PROD NO 33100, 33105.
|
| |
VOE4929548
|
[1] |
Support frame
|
PROD NO 33106, 33107.
|
| 27. |
VOE4740120
|
[REQ] |
Shim
|
THICK=6,00 SER NO -1292
|
| |
VOE4740122
|
[REQ] |
Shim
|
THICK=8,00 SER NO -1292
|
| |
VOE4740121
|
[REQ] |
Shim
|
THICK=10,00 SER NO -1292
|
| |
VOE4850320
|
[0001] |
Cover Plate
|
H SER NO 2217-
|
| 28. |
|
[0001] |
Locking
|
|
| 29. |
VOE729804
|
[0002] |
Bolt
|
|
| 30. |
VOE729803
|
[0002] |
Pin
|
|
| 31. |
|
[0001] |
Indikator
|
|
| 32. |
VOE13941904
|
[0002] |
Washer
|
|
| 33. |
VOE956059
|
[0002] |
Cross recessed screw
|
|
