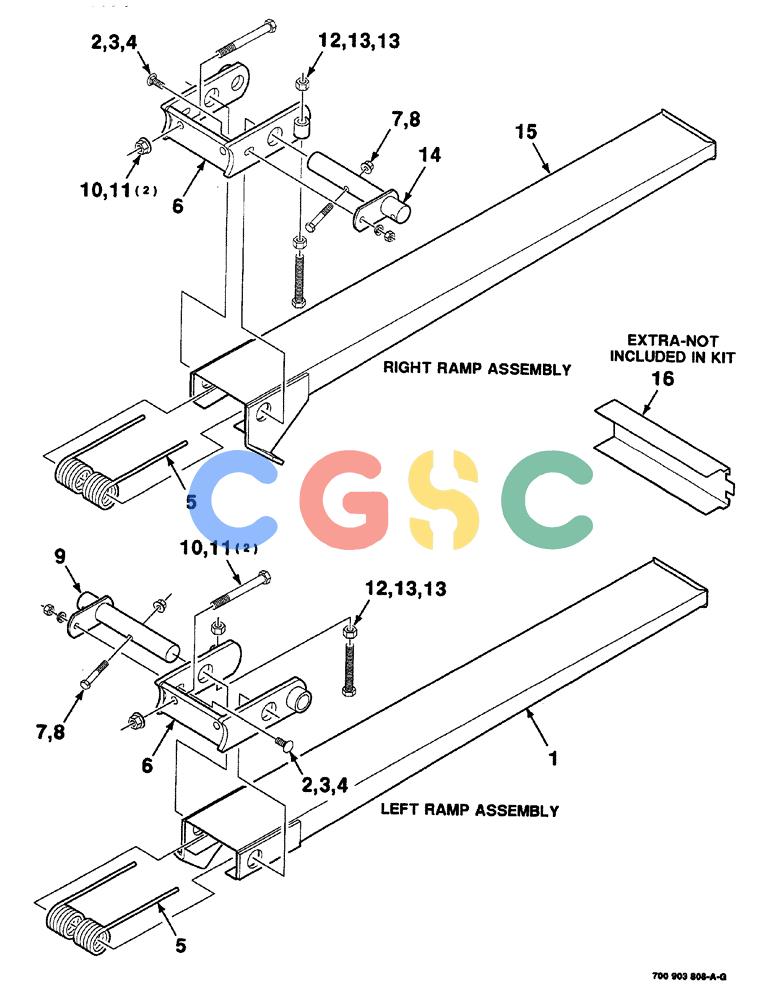

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (09-10) - RAMP KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
870 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50641
|
[1] |
KNOCKER
|
ATT
KIT ramp, complete, to be ordered thru wholegoods only
|
| 1. |
700129178
|
[1] |
RAMP
|
HFI
WA left
|
| 2. |
434-616
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 3. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 4. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 5. |
7895642
|
[2] |
TINE
|
L
TINE double
|
| 6. |
700129180
|
[2] |
MOUNTING PARTS
|
HFI
WA
|
| 7. |
413-636
|
[2] |
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 88546, 72187212
|
| 8. |
232-5316
|
[2] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock, hex flange top, 3/8"-16, GR/G Superseded by part number: 86521609
|
| 9. |
700129183
|
[1] |
SHAFT
|
HFI
WA left
|
| 10. |
413-872
|
[4] |
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
|
CAS
SCREW hex cap, 1/2"-13 x 4-1/2" Superseded by part number: 87996
|
| 11. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
lock, hex flange top, 1/2"-13, GR/G Superseded by part number: 86521610
|
| 12. |
873422
|
[2] |
CAPSCREW,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd
|
CAS
cap, full thread hex, 1/2"-13 x 3-1/2"
|
| 13. |
425-108
|
[4] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 14. |
700129184
|
[1] |
SHAFT
|
HFI
WA right
|
| 15. |
700125953
|
[1] |
RAMP
|
HFI
WA right
|
| 16. |
700126731
|
[1] |
PLATE
|
CAS
TEMPLATE, not included in kit
|
