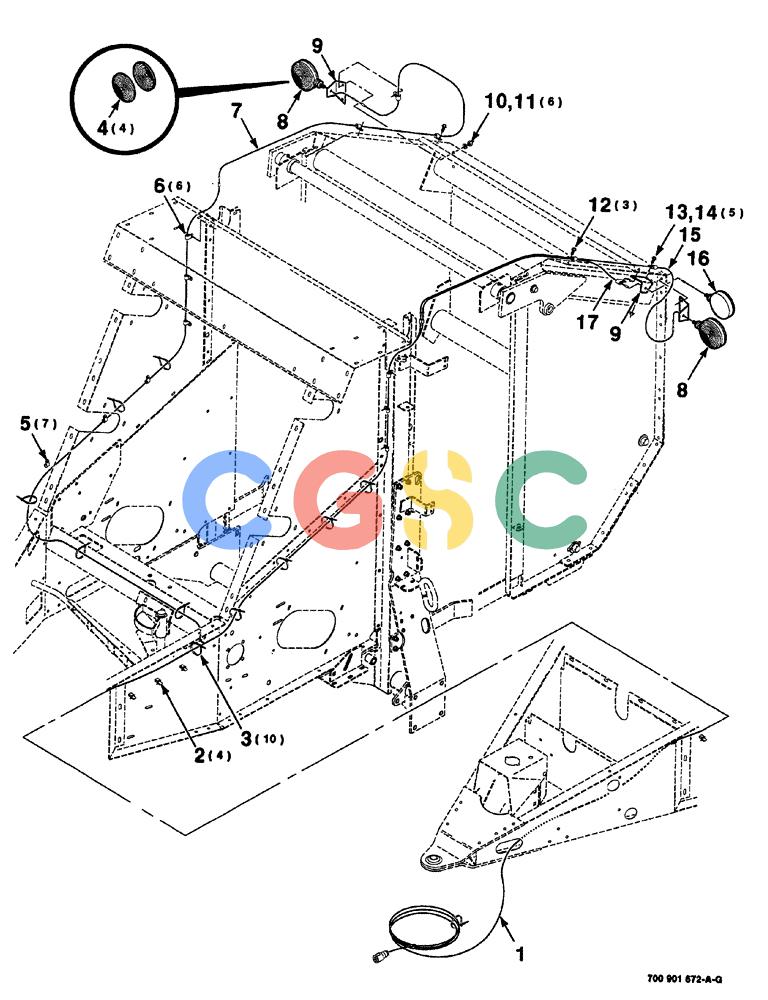

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (09-12) - WARNING LIGHT KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50456
|
[1] |
KIT warning light, complete, to be ordered thru wholegoods only
|
|
| 1. |
700707926
|
[1] |
HARNESS
|
CAS
wire
|
| 2. |
722496
|
[4] |
CLIP
|
HFI
line
|
| 3. |
L18337
|
[10] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP TIE nylon Superseded by part number: 529070
|
| 4. |
700711749
|
[4] |
LENS
|
CAS
light, flasher Superseded by part number: 71193862
|
| 5. |
515-2363
|
[7] |
CLAMP,M6.3, Insul, 3/8" Bolt
|
CAS
line Superseded by part number: 675162
|
| 6. |
515-2295
|
[6] |
CLAMP,3/8", Insul, 5/16" Bolt
|
CAS
Line Superseded by part number: 86637978
|
| 7. |
700708075
|
[1] |
ELECTRICAL WIRE
|
CAS
WIRE electric
|
| 8. |
700708036
|
[2] |
SIDE LAMP ASSY
|
IH
flasher, Includes: Ref. 4 Superseded by part number: 130609
|
| 9. |
700117560
|
[2] |
ANGLE
|
HFI
mounting, light
|
| 10. |
492-11038
|
[6] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 11. |
425-106
|
[6] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 12. |
281-1478
|
[3] |
SELF-TAP SCREW,1/4" - 20 x 1/2"
|
CAS
tapping, hex washer head thread cutting, 1/4"-20 x 1/2"
|
| 13. |
413-512
|
[5] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 72187196, 87872
|
| 14. |
231-5145
|
[5] |
SERRATED NUT,Flg, USR, 5/16"-18
|
CAS
Superseded by part number: 72187067, 145458
|
| 15. |
700708074
|
[1] |
ELECTRICAL WIRE
|
HFI
WIRE electric
|
| 16. |
700706634
|
[1] |
STOP LIGHT
|
IH
|
| 17. |
700705121
|
[1] |
WIRE
|
HFI
electric
|
