沃尔沃零件查询4300 Front- and rear mudguards4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
754 次

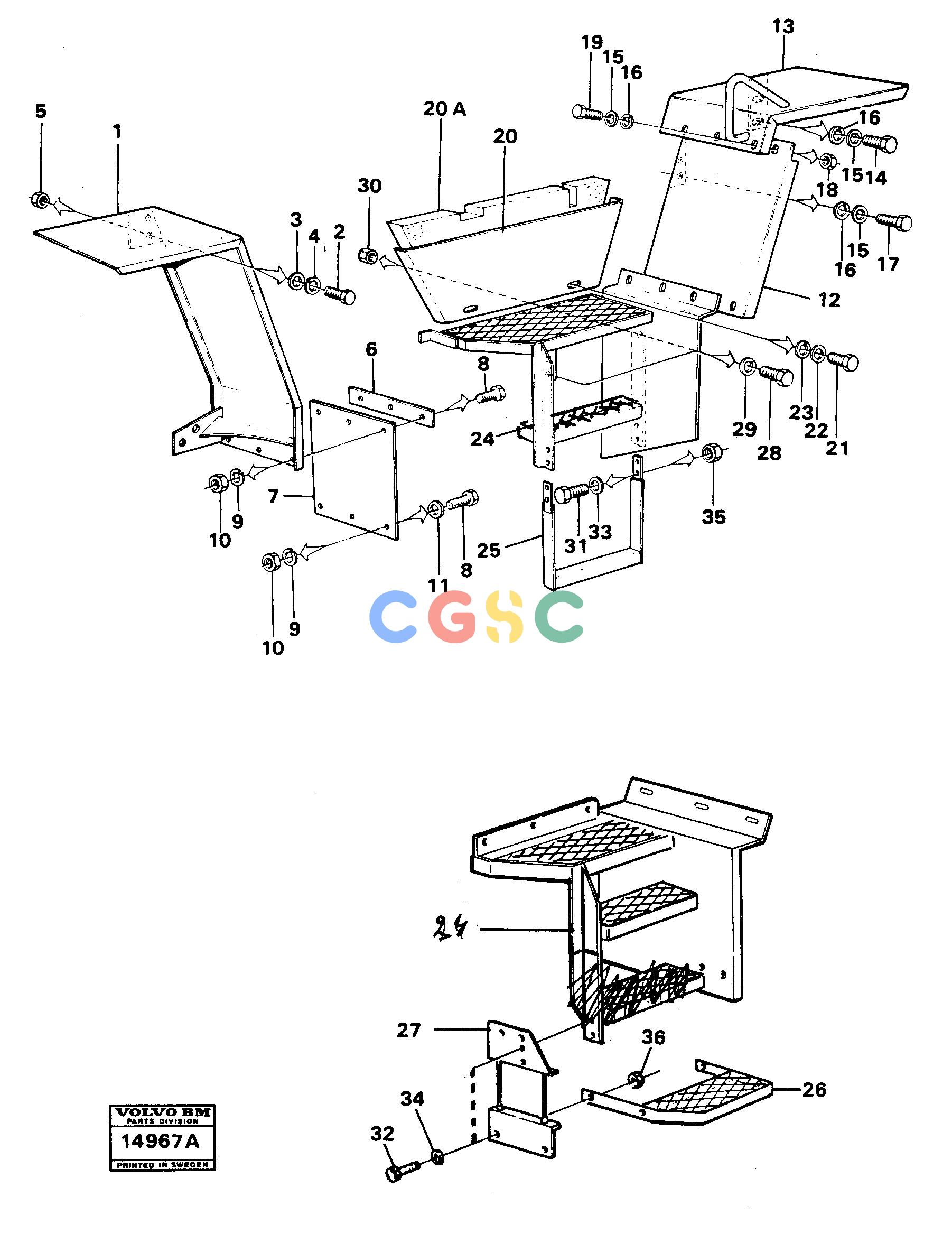

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE941908
|
[0008] |
Spring washer
|
|
| 5. |
VOE971071
|
[0008] |
Hexagon nut
|
|
| 6. |
VOE4739499
|
[0002] |
Attaching plate
|
|
| 7. |
VOE4739498
|
[0002] |
Baffle
|
|
| 8. |
VOE955297
|
[0006] |
Hexagon screw
|
|
| 1. |
VOE4925030
|
[0001] |
Mudguard
|
H FRAM/FRONT
|
| 9. |
VOE13941907
|
[0006] |
Washer
|
|
| 10. |
VOE955782
|
[0006] |
Hexagon nut
|
|
| 11. |
VOE13960141
|
[0006] |
Washer
|
|
| 12. |
VOE4932262
|
[0001] |
Mudguard
|
H
|
| |
VOE4932263
|
[0001] |
Mudguard
|
V
|
| 13. |
VOE4763332
|
[0001] |
Upper section
|
H
|
| |
VOE4763333
|
[0001] |
Upper section
|
V
|
| 14. |
VOE13970947
|
[0004] |
Hexagon screw
|
|
| 15. |
VOE976945
|
[0036] |
Washer
|
|
| 16. |
VOE941908
|
[0020] |
Spring washer
|
|
| |
VOE4925031
|
[0001] |
Mudguard
|
V FRAM/FRONT
|
| 17. |
VOE13970944
|
[0004] |
Hexagon screw
|
|
| 18. |
VOE971071
|
[0012] |
Hexagon nut
|
|
| 19. |
VOE970945
|
[0012] |
Hexagon screw
|
|
| 20. |
VOE4925009
|
[0002] |
Protecting plate
|
|
| |
VOE4928818
|
[0002] |
Protecting plate
|
|
| 20A. |
VOE6627669
|
[0002] |
Insulating mat
|
|
| 21. |
VOE13955294
|
[0004] |
Screw
|
|
| 22. |
VOE13955894
|
[0004] |
Washer
|
|
| 23. |
VOE13941907
|
[0004] |
Washer
|
|
| 24. |
VOE4924811
|
[0001] |
Foot step
|
H
|
| |
VOE4924812
|
[0001] |
Foot step
|
V
|
| 25. |
VOE4926725
|
[0001] |
Foot step
|
H, SER NO - 4442
|
| 2. |
VOE13970948
|
[0008] |
Hexagon screw
|
|
| 26. |
VOE4939189
|
[0001] |
Foot step
|
H, SER NO 4443 -
|
| |
VOE4926726
|
[1] |
Foot step
|
V, SER NO - 4442
|
| 26A. |
VOE4939190
|
[1] |
Foot step
|
V, SER NO 4443 -
|
| 27. |
VOE4939193
|
[4] |
Anchorage
|
SER NO 4443 -
|
| 28. |
VOE13970969
|
[8] |
Hexagon screw
|
|
| 29. |
VOE940280
|
[8] |
Spring washer
|
|
| 30. |
VOE13971072
|
[8] |
Hexagon nut
|
|
| 31. |
VOE970945
|
[8] |
Hexagon screw
|
SER NO - 4442
|
| 32. |
VOE970945
|
[16] |
Hexagon screw
|
SER NO 4443 -
|
| 33. |
VOE941908
|
[8] |
Spring washer
|
SER NO - 4442
|
| 3. |
VOE13960143
|
[0008] |
Washer
|
|
| 34. |
VOE941908
|
[16] |
Spring washer
|
SER NO 4443 -
|
| 35. |
VOE971071
|
[8] |
Hexagon nut
|
SER NO - 4442
|
| 36. |
VOE971071
|
[16] |
Hexagon nut
|
SER NO 4443 -
|
