沃尔沃零件查询4300 Mudguard 98466, 99312430098466-99312VOE98466NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
856 次

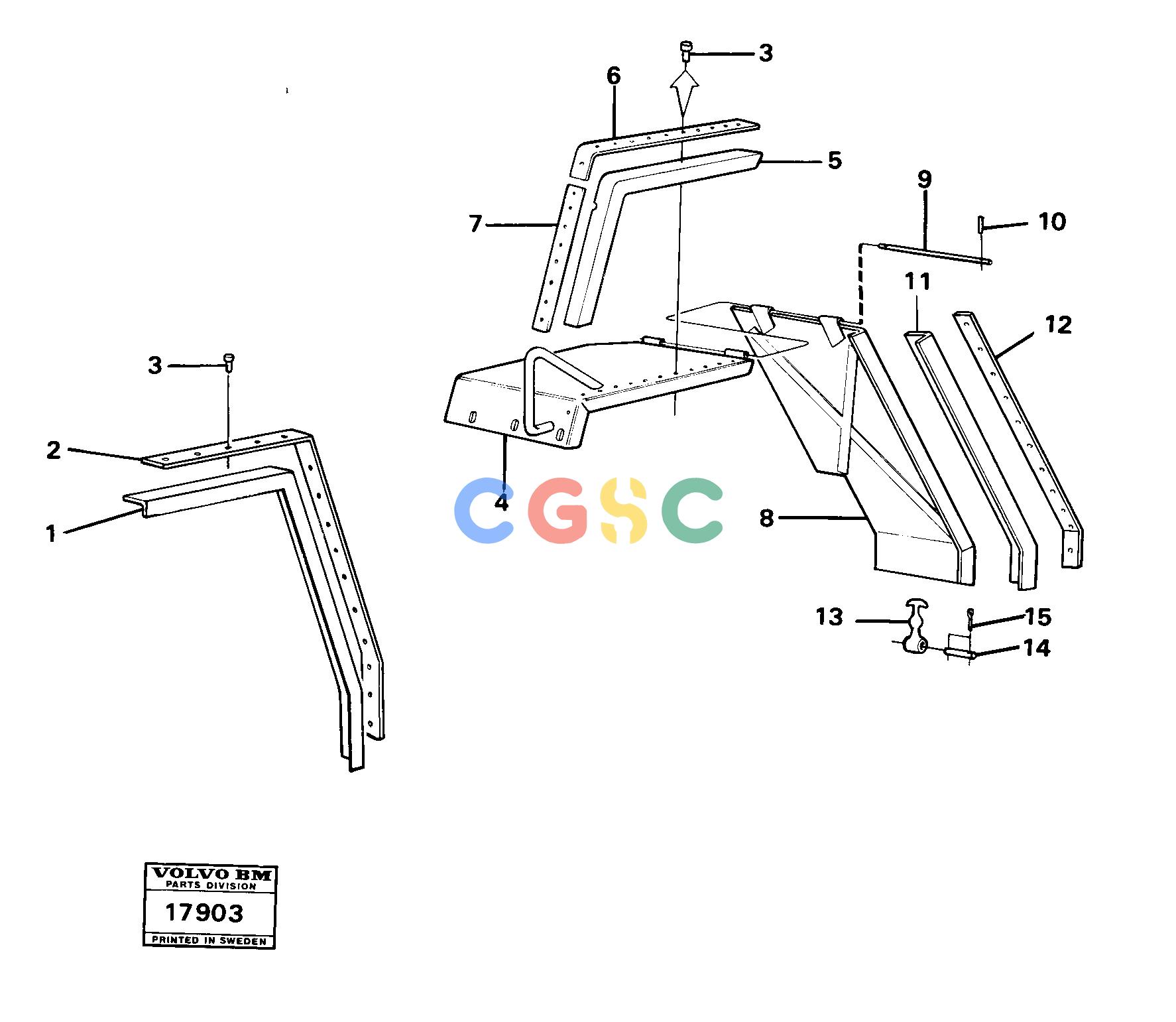

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4928584
|
[0001] |
Mudguard
|
V
|
| |
VOE4932467
|
|
Baffle
|
V
|
| |
VOE4928585
|
[0001] |
Mudguard
|
H
|
| |
VOE4932468
|
|
Baffle
|
H
|
| 5. |
VOE4928587
|
[0001] |
Edge protection
|
V
|
| 1. |
VOE4928589
|
[0001] |
Edge protection
|
V
|
| |
VOE4932476
|
|
Edge protection
|
V
|
| |
VOE4928586
|
[0001] |
Edge protection
|
H
|
| |
VOE4932477
|
|
Edge protection
|
H
|
| 6. |
VOE4928575
|
[0002] |
Moulding
|
|
| 7. |
VOE4928573
|
[0002] |
Moulding
|
|
| 8. |
VOE4928580
|
[0001] |
Mudguard
|
V
|
| |
VOE4932472
|
|
Baffle
|
V
|
| |
VOE4928581
|
[0001] |
Mudguard
|
H
|
| |
VOE4932473
|
|
Baffle
|
H
|
| |
VOE4880925
|
|
Buffer
|
|
| |
VOE4928590
|
[0001] |
Edge protection
|
H
|
| |
VOE4786031
|
|
Framework moulding
|
L=650
|
| 9. |
VOE4928594
|
[0004] |
Pin
|
|
| 10. |
VOE951945
|
[0008] |
Spring pin
|
|
| 11. |
VOE4928577
|
[0001] |
Edge protection
|
V
|
| |
VOE4932478
|
|
Edge protection
|
V
|
| |
VOE4928576
|
[0001] |
Edge protection
|
H
|
| |
VOE4932479
|
|
Edge protection
|
H
|
| 12. |
|
[0002] |
Strip
|
|
| 13. |
VOE4951714
|
[0002] |
Clamping strip
|
|
| 14. |
VOE952709
|
[0002] |
Clevis pin
|
|
| 2. |
VOE4928588
|
[0002] |
Moulding
|
|
| 15. |
VOE907822
|
[0002] |
Split pin
|
|
| 3. |
VOE943702
|
[0094] |
Blind rivet
|
|
