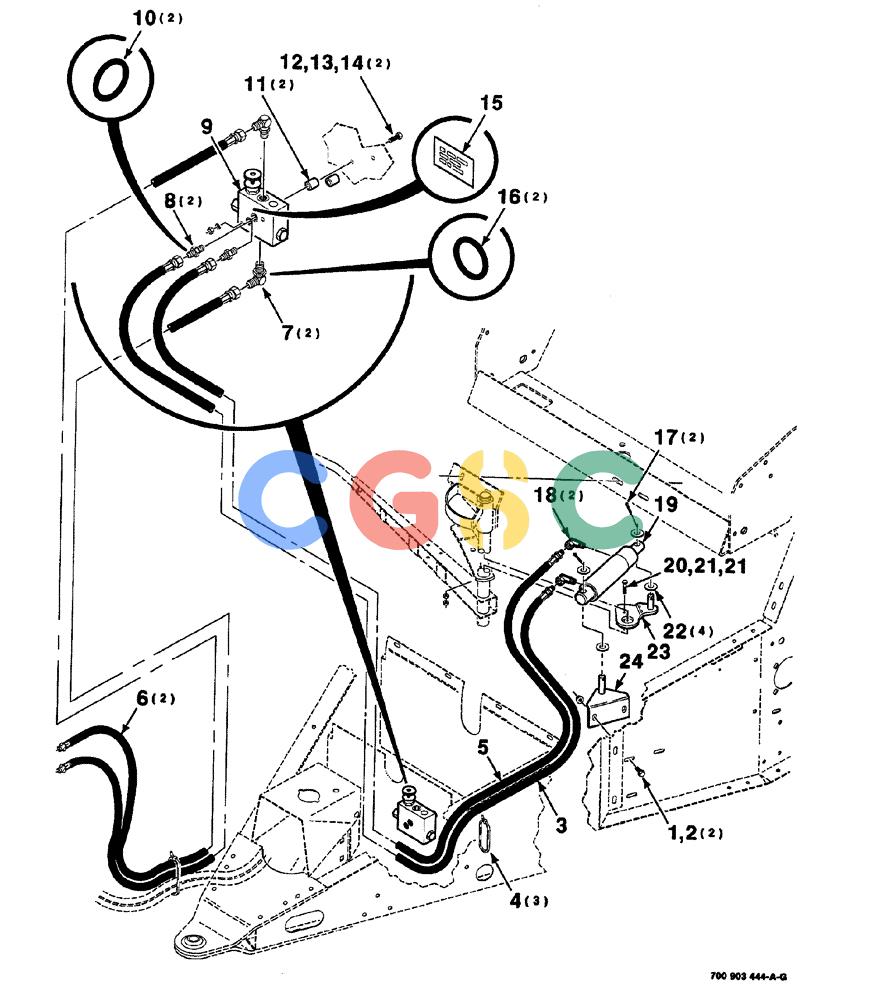

HK50447
|
[1] |
KIT hydraulic threader, complete, to be ordered thru wholegoods only
|
|
| 1. |
409-7612
|
[2] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 2. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
700707774
|
[1] |
HOSE
|
CAS
hydraulic
|
| 4. |
L18337
|
[3] |
CABLE TIE,9.95"-12.1" lg
|
CAS
CABLE STRAP TIE cable Superseded by part number: 529070
|
| 5. |
700707773
|
[1] |
HOSE
|
CAS
hydraulic
|
| 6. |
700709807
|
[2] |
HYDRAULIC HOSE,9.65 mm ID x 1925.00 mm, SAE 100R2
|
L
|
| 7. |
218-5128
|
[2] |
ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB
|
CAS
Incl. 15 Superseded by part number: 87329788
|
| 8. |
218-5053
|
[2] |
HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB
|
CAS
Incl. Ref. 10 Superseded by part number: 265235
|
| 9. |
700707258
|
[1] |
GOVERNOR
|
IH
REGULATOR ASSY. flow, see Figure 09-22
|
| 10. |
237-6004
|
[2] |
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
|
CAS
Superseded by part number: 165202, 72186131
|
| 11. |
6812952
|
[2] |
SPACER
|
HFI
|
| 12. |
413-552
|
[2] |
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
|
CAS
hex cap, 5/16"-18 x 3-1/4" Superseded by part number: 280275
|
| 13. |
492-11031
|
[2] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| 14. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 15. |
700710298
|
[1] |
DECAL
|
CAS
do not adjust
|
| 16. |
237-6008
|
[2] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
|
CAS
Superseded by part number: 128825
|
| 17. |
432-1020
|
[2] |
COTTER PIN,5/32" x 1 1/4"
|
CAS
Superseded by part number: 86523851
|
| 18. |
218-924
|
[2] |
ELBOW,90 Degree, 1/4" NPTF Male x 1/4" NPSM Fem Sw
|
CAS
ELBOW, 90° Superseded by part number: 87508052
|
| 19. |
7075625
|
[1] |
CYLINDER
|
L
ASSY. hydraulic, see Figure 09-20 Superseded by part number: 700726495
|
| 21. |
425-104
|
[2] |
NUT,1/4"-20, Cl 5
|
CAS
Superseded by part number: 7770, 72187220
|
| 22. |
495-11066
|
[4] |
WASHER,5/8", SAE
|
CAS
narrow plain, 5/8" Superseded by part number: 87365
|
| 23. |
700117251
|
[1] |
ARM
|
CAS
WA cylinder
|
| 24. |
700117248
|
[1] |
SUPPORT
|
CAS
WA cylinder
|
| 20. |
413-420
|
[1] |
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
|
CAS
Superseded by part number: 87716, 72187191
|
