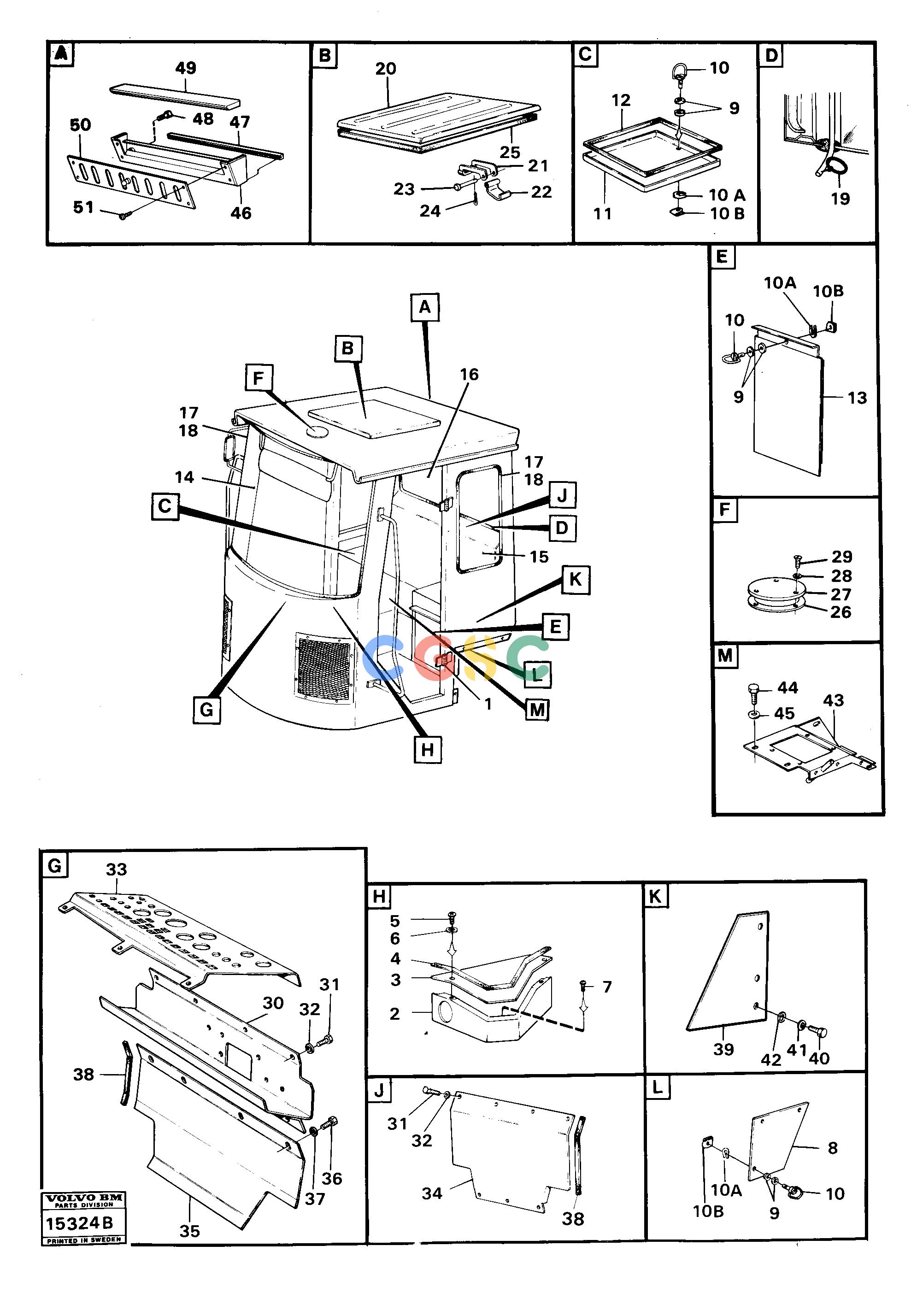

沃尔沃零件查询4300 Cab body4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
437 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[0001] |
Cab Framework
|
|
| 1. |
VOE4932799
|
[0002] |
Hinge
|
V
|
| |
VOE4932798
|
[0002] |
Hinge
|
H
|
| 2. |
VOE4763969
|
[0001] |
Panel box
|
V
|
| |
VOE4763968
|
[0001] |
Panel box
|
H
|
| 3. |
VOE4763972
|
[0001] |
Cover
|
V
|
| |
VOE4763971
|
[0001] |
Cover
|
H
|
| |
|
[0001] |
Cover
|
|
| 4. |
VOE4786031
|
[REQ] |
Framework moulding
|
L=2X480
|
| 5. |
VOE944201
|
[0004] |
Screw
|
|
| 6. |
VOE955891
|
[0004] |
Plain washer
|
|
| 7. |
VOE956090
|
[0006] |
Cross recessed screw
|
SER NO -1025
|
| |
VOE956090
|
[0004] |
Cross recessed screw
|
SER NO 1026-
|
| 8. |
VOE4739861
|
[0002] |
Hatch
|
|
| |
VOE4854046
|
[0001] |
Hatch
|
V
|
| |
VOE4854047
|
[0001] |
Hatch
|
H
|
| |
|
[0001] |
Door
|
V
|
| |
|
|
None
|
|
| |
|
[0001] |
Door
|
H
|
| |
|
|
None
|
|
| 9. |
VOE784180
|
[0022] |
Attaching ring
|
|
| 10. |
VOE4786809
|
[0011] |
Pin
|
CAB -1085
|
| |
VOE4780141
|
[0011] |
Pin
|
CAB 1086-
|
| 10A. |
VOE13951669
|
[0011] |
Retaining ring
|
CAB 1086-
|
| 10B. |
VOE4780956
|
[0011] |
Spring plate
|
|
| 11. |
VOE4824174
|
[0002] |
Cover Plate
|
|
| 12. |
VOE4786031
|
[REQ] |
Framework moulding
|
L=2X1170
|
| 13. |
VOE4824183
|
[0001] |
Hatch
|
|
| 14. |
VOE11005775
|
[0001] |
Windscreen
|
|
| |
VOE11005776
|
[0001] |
Windscreen
|
|
| 15. |
VOE11706110
|
[0002] |
Side window
|
|
| |
VOE4763965
|
[0002] |
Windscreen
|
|
| 16. |
VOE11706113
|
[0001] |
Curb Window
|
|
| |
VOE4743766
|
[0001] |
Windscreen
|
|
| 17. |
VOE784555
|
[REQ] |
Clamping strip
|
|
| |
VOE4951714
|
[REQ] |
Clamping strip
|
|
| 18. |
VOE795464
|
[REQ] |
Profile
|
|
| 19. |
VOE4929027
|
[0001] |
Ring
|
|
| 20. |
VOE4763821
|
[0001] |
Roof hatch
|
|
| 21. |
VOE4782174
|
[2] |
Tensioning arm
|
|
| 22. |
VOE4740946
|
[2] |
Spring
|
|
| 23. |
VOE952718
|
[4] |
Clevis pin
|
|
| 24. |
VOE907822
|
[4] |
Split pin
|
|
| 25. |
VOE4786044
|
[REQ] |
Sealing strip
|
L=2300
|
| 26. |
VOE4743671
|
[1] |
Gasket
|
|
| 27. |
VOE760467
|
[1] |
Cap
|
|
| 28. |
VOE13941906
|
[3] |
Washer
|
|
| 29. |
VOE950032
|
[3] |
Cross recessed screw
|
|
| 30. |
|
[1] |
Panel
|
|
| 31. |
VOE13955271
|
[7] |
Screw
|
|
| 32. |
VOE955892
|
[7] |
Plain washer
|
|
| 33. |
|
[1] |
Instr Panel
|
|
| |
|
|
None
|
|
| 34. |
|
[0001] |
Cover plate
|
|
| 35. |
|
[0001] |
Cover plate
|
|
| 36. |
VOE956092
|
[0004] |
Cross recessed screw
|
|
| 37. |
VOE955892
|
[0004] |
Plain washer
|
|
| 38. |
VOE4785415
|
[REQ] |
Sealing strip
|
|
| 39. |
VOE4928810
|
[0001] |
Seal
|
V
|
| |
VOE4928811
|
[0001] |
Seal
|
H
|
| 40. |
VOE940199
|
[0006] |
Hexagon screw
|
|
| 41. |
VOE13960141
|
[0006] |
Washer
|
|
| 42. |
VOE13941907
|
[0006] |
Washer
|
|
| 43. |
VOE4929170
|
[0001] |
Cover Plate
|
|
| 44. |
VOE13955294
|
[0004] |
Screw
|
|
| 45. |
VOE13960141
|
[0004] |
Washer
|
|
| 46. |
VOE4952212
|
[0002] |
Ventilator
|
|
| 47. |
VOE4785641
|
[REQ] |
Rubber moulding
|
L=4X500
|
| 48. |
VOE13955295
|
[0004] |
Screw
|
|
| 49. |
|
[0002] |
Insulation
|
|
| 50. |
VOE4743295
|
[0002] |
Ventilator
|
|
| 51. |
VOE13955113
|
[0008] |
Screw
|
|
