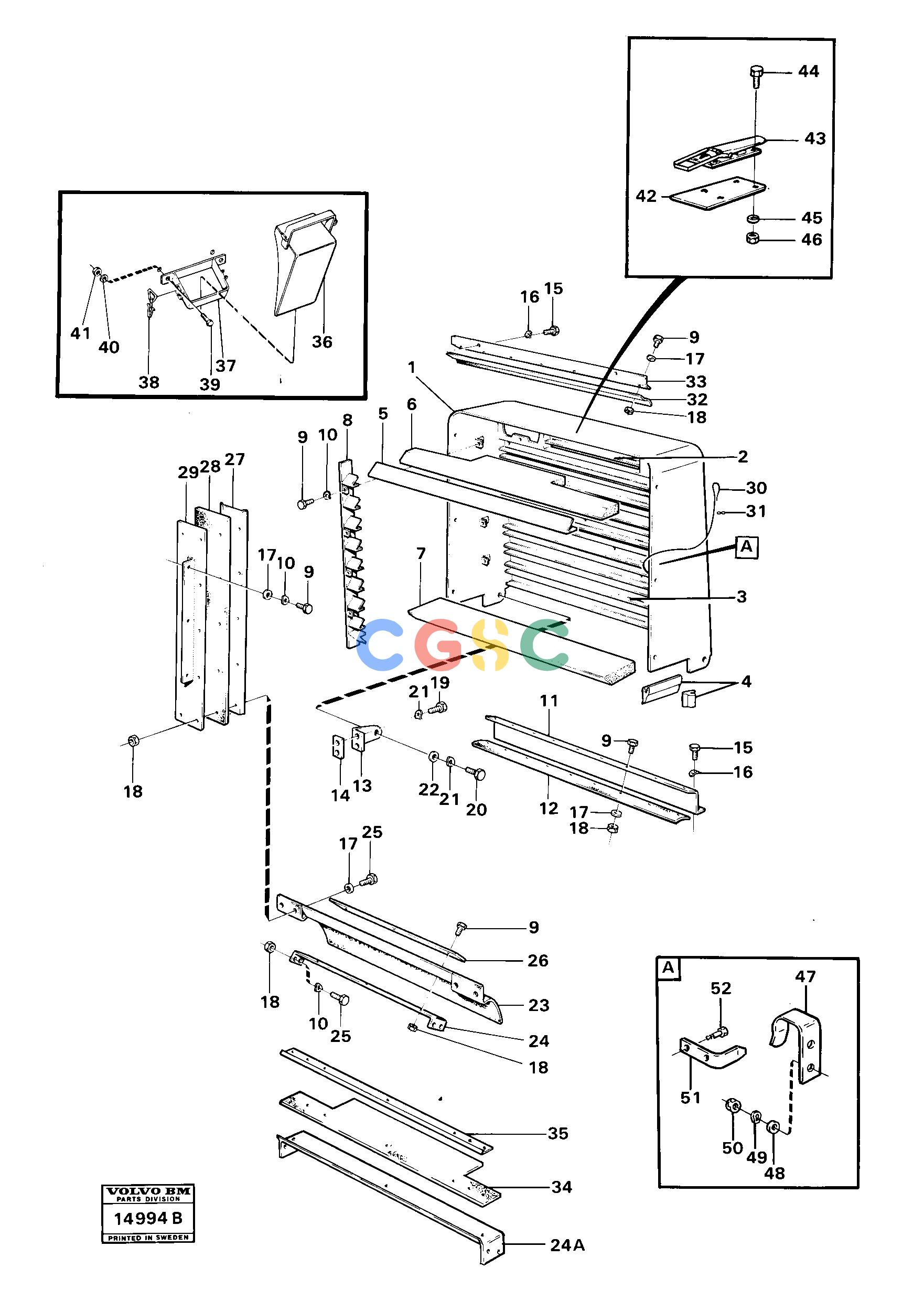

沃尔沃零件查询4300 Radiator casing430033100-33105VOE33100NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4947007
|
|
Radiator casing
|
SER NO 4747 -
|
| 33. |
VOE4925826
|
[0001] |
Attaching Plate
|
|
| |
VOE4929340
|
|
Plate
|
|
| |
VOE4929589
|
|
Attaching Plate
|
|
| |
VOE4932361
|
|
Plate
|
|
| 34. |
VOE4947833
|
|
Rubber cloth
|
|
| |
|
|
None
|
SER NO - 4911
|
| |
VOE4947833
|
|
Rubber cloth
|
SER NO 4912 -
|
| 35. |
VOE4947832
|
|
Plate
|
|
| |
|
|
None
|
SER NO - 4911
|
| |
VOE4947832
|
|
Plate
|
SER NO 4912 -
|
| 36. |
VOE734510
|
[0002] |
Key
|
|
| 37. |
VOE4741806
|
[0002] |
Anchorage
|
|
| 38. |
VOE6617683
|
[0004] |
Eccentric lock
|
|
| 39. |
VOE13955295
|
[0004] |
Screw
|
|
| 2. |
VOE11090370
|
|
Radiator grille
|
|
| 40. |
VOE13955894
|
[0004] |
Washer
|
|
| 41. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 42. |
|
|
Attaching plate
|
|
| 43. |
VOE11018588
|
|
Platform catch
|
SER NO 4747 -
|
| 44. |
VOE955297
|
|
Hexagon screw
|
SER NO 4747 -
|
| 45. |
VOE13960141
|
|
Washer
|
SER NO 4747 -
|
| 46. |
VOE946036
|
|
Lock nut
|
SER NO 4747 -
|
| 47. |
VOE4947285
|
|
Spring
|
SER NO 4747 -
|
| 48. |
VOE13960141
|
|
Washer
|
SER NO 4747 -
|
| 49. |
VOE13941907
|
|
Washer
|
SER NO 4747 -
|
| 3. |
VOE4932238
|
|
Radiator grille
|
|
| 50. |
VOE955782
|
|
Hexagon nut
|
SER NO 4747 -
|
| 51. |
|
|
Elbow
|
|
| 52. |
VOE13955295
|
|
Screw
|
SER NO 4747 -
|
| |
VOE4932358
|
|
Radiator grille
|
|
| 4. |
VOE795738
|
[REQ] |
Rubber moulding
|
|
| 1. |
VOE4929267
|
[0001] |
Radiator casing
|
|
| 5. |
VOE4761464
|
[8-9] |
Retainer
|
|
| 6. |
VOE6627669
|
[REQ] |
Insulating mat
|
SER NO - 4746 600X1000
|
| 7. |
VOE6627669
|
[REQ] |
Insulating mat
|
SER NO 4747 - 600X1000
|
| |
|
[0009] |
Sound absorber
|
SER NO 4747 -
|
| |
|
|
None
|
|
| 8. |
VOE4927641
|
[0001] |
Retainer
|
V SER NO - 4746
|
| |
VOE4939236
|
[0008] |
Retainer
|
V SER NO 4747 -
|
| |
VOE4927642
|
[0001] |
Retainer
|
H SER NO - 4746
|
| |
VOE4947419
|
[0001] |
Retainer
|
H SER NO 4747 -
|
| 9. |
VOE13955294
|
[REQ] |
Screw
|
SER NO - 4746
|
| |
VOE4929294
|
|
Radiator casing
|
|
| |
VOE13955295
|
[REQ] |
Screw
|
SER NO 4747 -
|
| 10. |
VOE13941907
|
[REQ] |
Washer
|
|
| 11. |
VOE4925211
|
[0001] |
Rim
|
|
| 12. |
VOE4925210
|
[0001] |
Edge Protection Moulding
|
|
| 13. |
VOE4926694
|
[0001] |
Anchorage
|
V SER NO - 4746
|
| |
VOE4947003
|
[0001] |
Anchorage
|
V SER NO 4747 -
|
| |
VOE4926695
|
[0001] |
Anchorage
|
H SER NO - 4746
|
| |
VOE4947004
|
[0001] |
Anchorage
|
H SER NO 4747 -
|
| 14. |
|
[0002] |
Shim
|
|
| 15. |
VOE13970944
|
[0002] |
Hexagon screw
|
|
| |
VOE4932239
|
|
Radiator casing
|
SER NO - 4746
|
| 16. |
VOE941908
|
[0002] |
Spring washer
|
|
| 17. |
VOE13960141
|
[REQ] |
Washer
|
|
| 18. |
VOE955782
|
[REQ] |
Hexagon nut
|
SER NO - 4279
|
| 19. |
VOE13970972
|
[0004] |
Hexagon screw
|
|
| 20. |
VOE997446
|
[0002] |
Hexagon screw
|
|
| 21. |
VOE940280
|
[0006] |
Spring washer
|
|
| 22. |
VOE13960145
|
[0006] |
Washer
|
|
| 23. |
VOE4926704
|
[0001] |
Seal
|
|
| 24. |
VOE4926701
|
[0001] |
Attaching Plate
|
|
| 24A. |
VOE4929553
|
|
Plate
|
|
| |
VOE4932239
|
|
Radiator casing
|
SER NO 3558 - 4746
|
| 25. |
VOE955297
|
[0008] |
Hexagon screw
|
|
| 26. |
|
[0001] |
Support plate
|
|
| 27. |
VOE4926696
|
[0002] |
Support plate
|
|
| 28. |
VOE4925821
|
[0002] |
Seal
|
|
| 29. |
VOE4947266
|
[0001] |
Sealing plate
|
V
|
| |
VOE4947267
|
[0001] |
Sealing plate
|
H
|
| 30. |
VOE795810
|
[0001] |
Cable
|
|
| 31. |
VOE4880425
|
[0002] |
Cable clamp
|
|
| 32. |
VOE4925823
|
[0001] |
Seal
|
|
| |
VOE4932362
|
|
Rubber cloth
|
|
