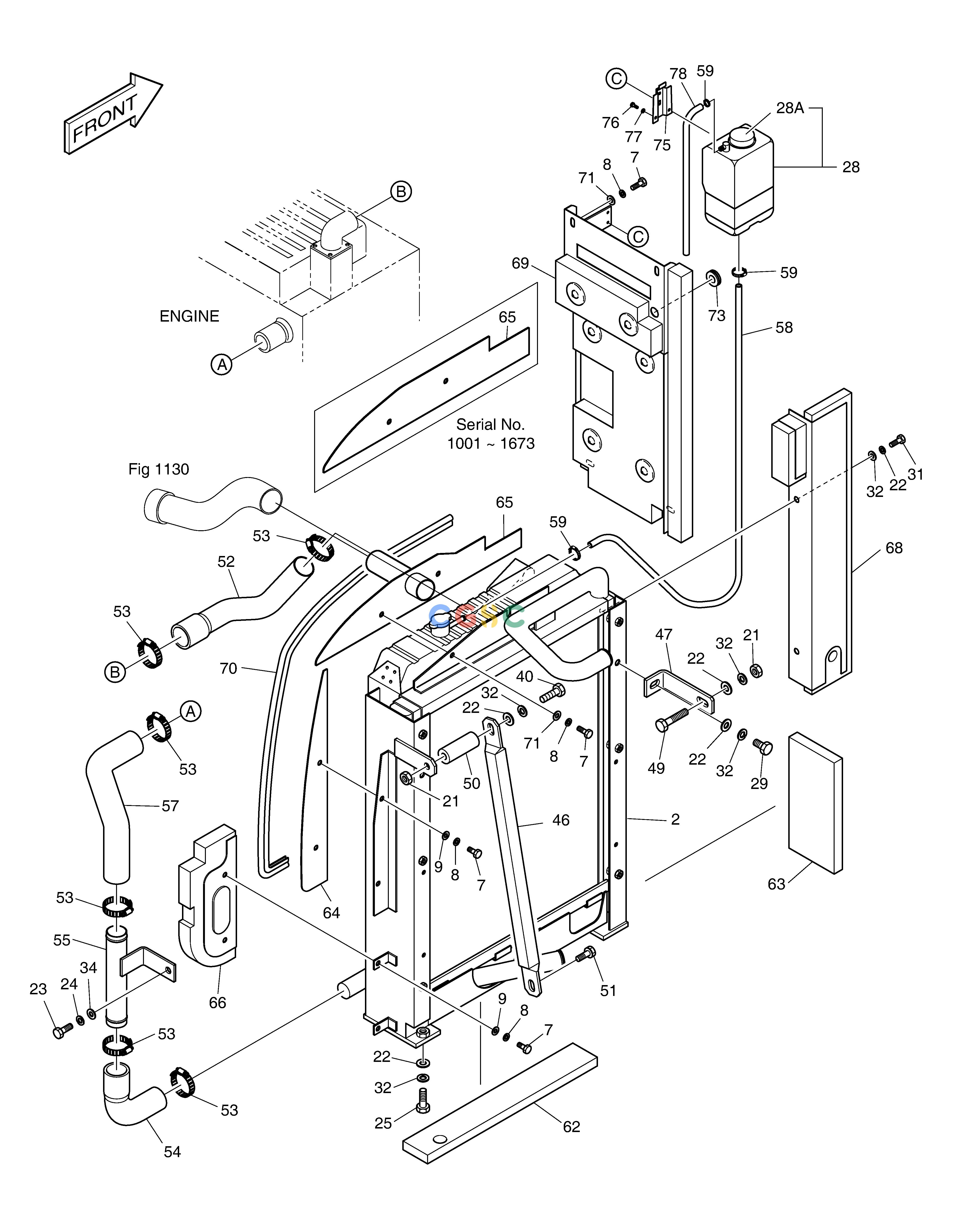

斗山零件查询ENGINE MOUNTING(2)-RADIATOR B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
468 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00177
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| -. |
201-00177C
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| 2. |
202-00105B
|
[1] |
RADIATOR ASS'Y
|
K1000345
|
| 2. |
K1000345
|
[1] |
RADIATOR ASS'Y
|
K1000345A
|
| 2. |
K1000345A
|
[1] |
RADIATOR
|
K1000345B
|
| 2. |
K1000345B
|
[1] |
RADIATOR
|
K1000345C
|
| 2. |
K1000345C
|
[1] |
RADIATOR
|
|
| 21. |
S4012733
|
[2] |
NUT
|
|
| 22. |
2114-1058D72
|
[9] |
WASHER
|
|
| 23. |
S0511853
|
[1] |
BOLT
|
|
| 24. |
S5102603
|
[1] |
. WASHER
|
|
| 25. |
S0515353
|
[4] |
BOLT M12X1.75X35
|
|
| 28. |
470-00107
|
[1] |
TANK;RESERVOIR
|
K1003355
|
| 28. |
K1003355
|
[1] |
TANK;RESERVOIR
|
K1003355A
|
| 28. |
K1003355A
|
[1] |
TANK;RESERVOIR
|
|
| 28A. |
K9002313
|
[1] |
1
|
|
| 29. |
S0515053
|
[1] |
BOLT M12X1.75X25
|
|
| 31. |
S0514953
|
[2] |
BOLT M12X1.75X22
|
|
| 32. |
S5102703
|
[9] |
WASHER
|
|
| 34. |
S5010613
|
[1] |
WASHER
|
|
| 40. |
S0561953
|
[1] |
BOLT M12X1.75X110
|
|
| 46. |
145-00022B
|
[1] |
STAY 1
|
|
| 47. |
145-00071
|
[1] |
STAY 2
|
|
| 49. |
S0560953
|
[1] |
BOLT M12X1.75X60
|
|
| 50. |
DS5101026
|
[1] |
SPACER
|
|
| 51. |
2120-2196D2
|
[1] |
BOLT;SET M10X1.5X25
|
|
| 52. |
185-00104A
|
[1] |
HOSE;WATER
|
|
| 53. |
S8450035
|
[6] |
CLAMP;HOSE
|
|
| 54. |
185-00105A
|
[1] |
HOSE;IN
|
|
| 55. |
140-01324
|
[1] |
PIPE;WATER
|
|
| 57. |
185-00106B
|
[1] |
HOSE;WATER
|
|
| 58. |
2185-1363
|
[1] |
HOSE;WATER
|
|
| 59. |
S8450006
|
[3] |
CLAMP
|
|
| 62. |
161-00278
|
[1] |
FOAM;POLYURETHANE
|
|
| 63. |
2161-1911D20
|
[1] |
FOAM;POLYURETHANE
|
|
| 64. |
159-00240A
|
[1] |
PLATE; BAFFLE
|
159-00108B
|
| 64. |
159-00108B
|
[1] |
PLATE;BAFFLE
|
|
| 65. |
159-00239A
|
[1] |
PLATE; BAFFLE
|
|
| 65. |
K1005352A
|
[1] |
PLATE;BAFFLE
|
|
| 66. |
159-00235
|
[1] |
PLATE; BAFFLE
|
|
| 68. |
621Y02288A
|
[1] |
COVER;BAFFLE
|
|
| 69. |
621Y02287A
|
[1] |
COVER;BAFFLE
|
|
| 7. |
S0508853
|
[10] |
. BOLT
|
|
| 70. |
162-00029A
|
[1] |
STRIP;WEATHER
|
|
| 71. |
2114-1058D29
|
[6] |
WASHER
|
|
| 73. |
2160-1004D25
|
[1] |
BUSHING;RUBBER
|
|
| 75. |
2195-1534
|
[1] |
BRACKET
|
|
| 76. |
S0504453
|
[2] |
BOLT
|
|
| 77. |
S5010313
|
[2] |
WASHER
|
|
| 78. |
2185-1774
|
[1] |
HOSE
|
|
| 8. |
S5102503
|
[10] |
. WASHER
|
|
| 9. |
S5010513
|
[4] |
WASHER
|
|
