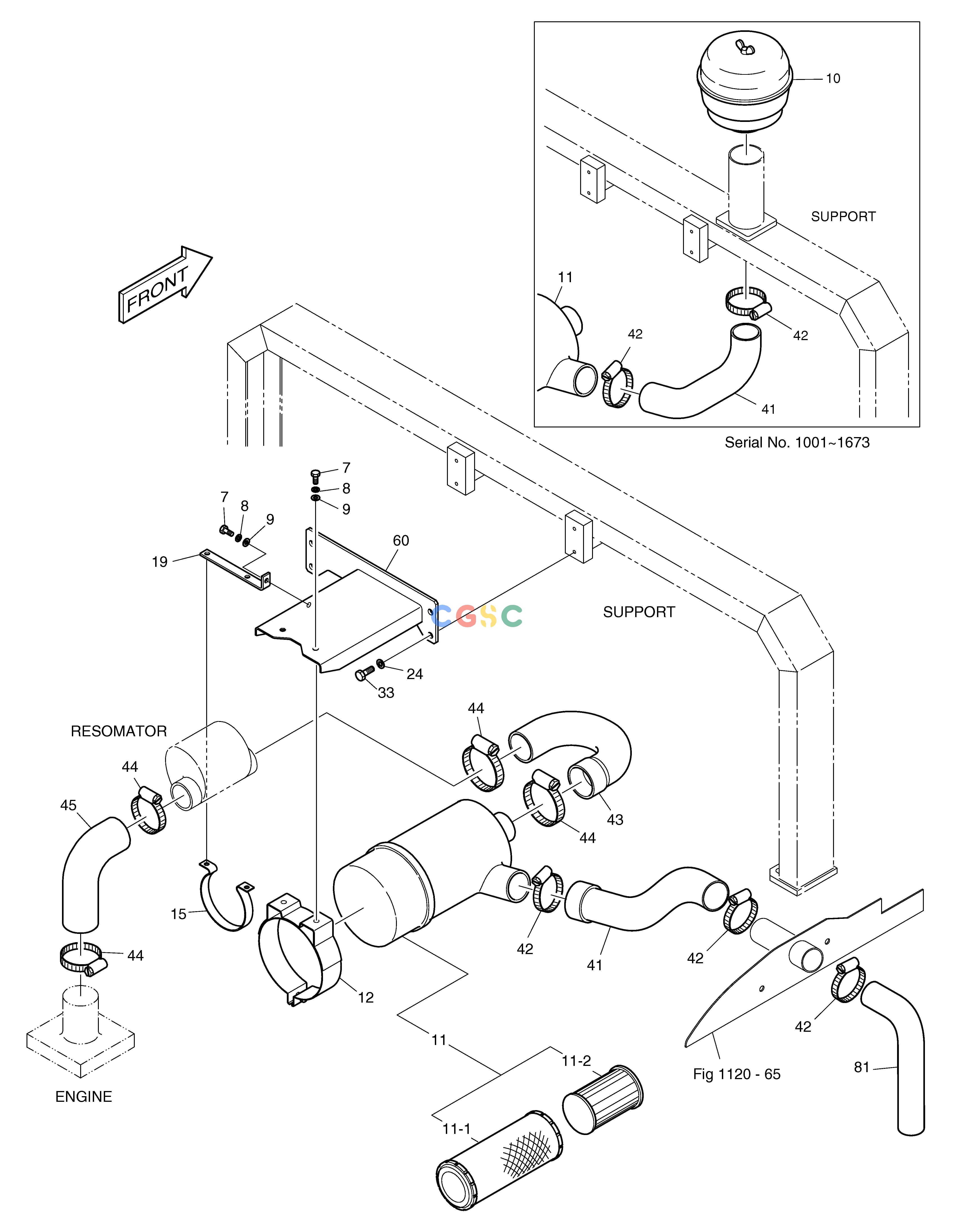

斗山零件查询ENGINE MOUNTING(3)-AIR CLEANER B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
637 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
201-00177
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| -. |
201-00177A
|
[-] |
ENGINE MOUNTING ASS'Y
|
|
| 10. |
204-00032
|
[1] |
CLEANER;PRE
|
|
| 11. |
204-00030
|
[1] |
CLEANER;AIR
|
|
| 11-1. |
474-00024
|
[1] |
. ELEMENT;OUTER
|
|
| 11-2. |
474-00025
|
[1] |
ELEMENT;INNER
|
|
| 12. |
124-00188A
|
[1] |
CLAMP
|
|
| 15. |
124-00090A
|
[1] |
BAND;RESONATOR
|
|
| 19. |
195-02430
|
[1] |
BRACKET;RESONATOR
|
|
| 24. |
S5102603
|
[4] |
. WASHER
|
|
| 33. |
S0512263
|
[4] |
BOLT
|
|
| 41. |
185-00101B
|
[1] |
HOSE;INTAKE
|
|
| 41. |
K1005572A
|
[1] |
HOSE;INTAKE
|
|
| 42. |
S8450066
|
[2] |
CLAMP;HOSE
|
|
| 42. |
S8450066
|
[3] |
CLAMP;HOSE
|
|
| 43. |
185-00102B
|
[1] |
HOSE;INTAKE
|
|
| 44. |
S8450053
|
[4] |
CLAMP;HOSE
|
|
| 45. |
185-00103A
|
[1] |
HOSE;INTAKE
|
|
| 60. |
195-02431
|
[1] |
SUPPORT;A/C
|
195-02431A
|
| 60. |
195-02431A
|
[1] |
SUPPORT;A/C
|
|
| 7. |
S0508853
|
[5] |
. BOLT
|
|
| 8. |
S5102503
|
[5] |
. WASHER
|
|
| 81. |
K1005340A
|
[1] |
HOSE
|
|
| 9. |
S5010513
|
[5] |
WASHER
|
|
