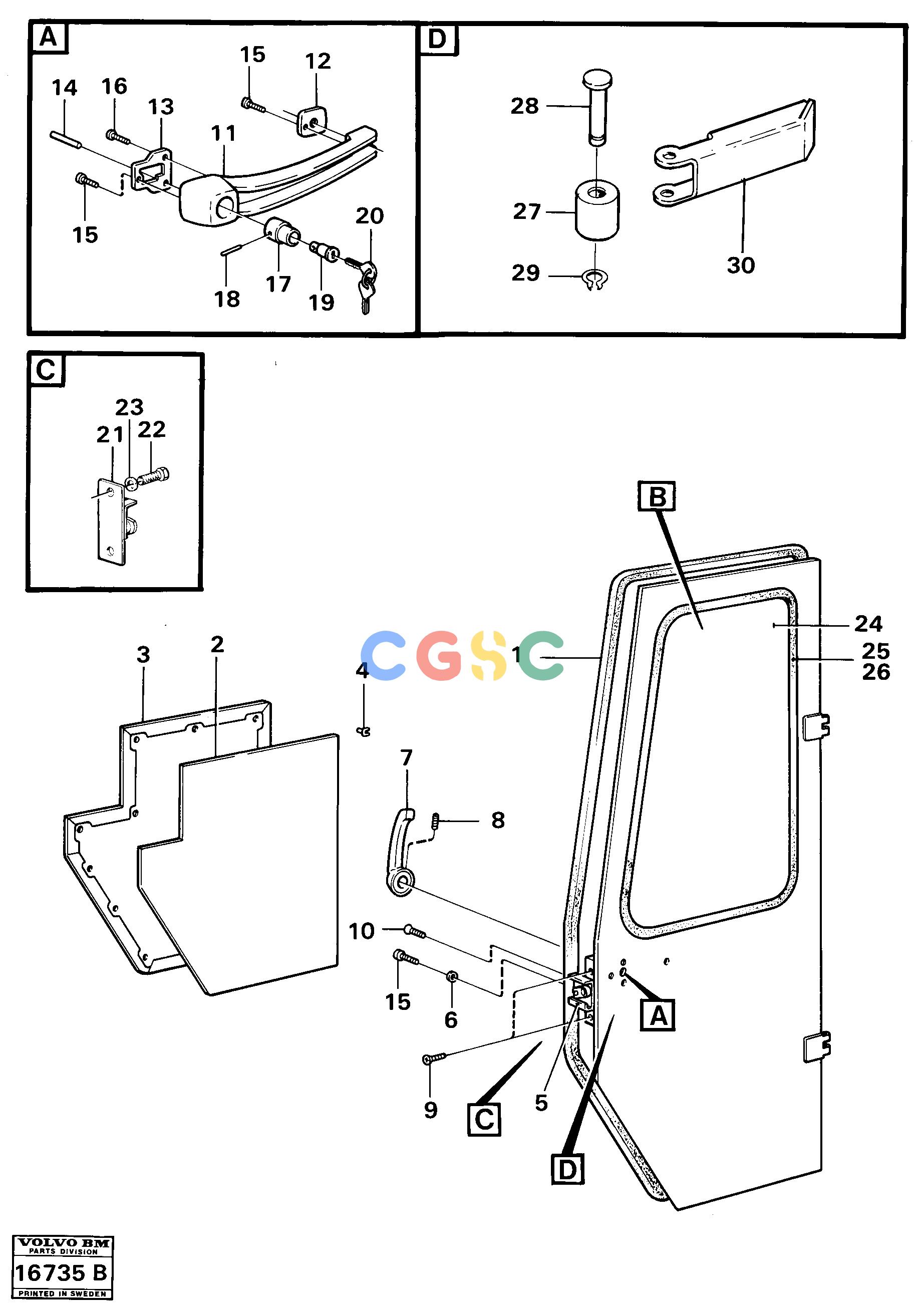

沃尔沃零件查询4300 Door4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
654 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4854521
|
[0001] |
Door
|
H, CAB - 4002
|
| |
VOE4856368
|
[0001] |
Door
|
H
|
| 1. |
VOE4824275
|
[REQ] |
Profile
|
L=3800
|
| 2. |
|
[0001] |
Insulation
|
|
| 3. |
VOE4763847
|
[0001] |
Retaining plate
|
H
|
| |
VOE4856345
|
[0001] |
Insulation
|
H
|
| |
VOE4763848
|
[0001] |
Retaining plate
|
V
|
| |
VOE4856344
|
[1] |
Insulation
|
V
|
| 4. |
VOE4880927
|
[13] |
Latch
|
|
| |
VOE4880985
|
[7] |
Push button
|
|
| 5. |
VOE4763813
|
[1] |
Door lock
|
H
|
| |
VOE4763812
|
[1] |
Door lock
|
V
|
| 6. |
VOE60110304
|
[1] |
Washer
|
|
| 7. |
VOE320137
|
[1] |
Handle
|
|
| 8. |
VOE942343
|
[1] |
Screw
|
|
| 9. |
VOE956312
|
[2] |
Cross recessed sunk screw
|
|
| 10. |
VOE956317
|
[2] |
Cross recessed sunk screw
|
|
| 11. |
VOE1607369
|
[2] |
Handle
|
|
| 12. |
VOE1500111
|
[1] |
Washer
|
|
| 13. |
VOE1500112
|
[1] |
Washer
|
|
| 14. |
VOE4929453
|
[1] |
Pin
|
|
| 15. |
VOE956093
|
[0003] |
Cross recessed screw
|
|
| 16. |
VOE956094
|
[0002] |
Cross recessed screw
|
|
| |
VOE4854520
|
[0001] |
Door
|
V, CAB - 4002
|
| |
VOE389204
|
[0001] |
Push button
|
|
| 17. |
|
[0001] |
Button
|
|
| 18. |
VOE385465
|
[0001] |
Pin
|
|
| 19. |
VOE278216
|
[0001] |
Lock cylinder
|
|
| 20. |
|
[0002] |
Key
|
|
| 21. |
VOE4763977
|
[0001] |
Lock fitting
|
V
|
| |
VOE4763976
|
[0001] |
Lock fitting
|
H
|
| 22. |
VOE970945
|
[0004] |
Hexagon screw
|
|
| 23. |
VOE13960143
|
[0004] |
Washer
|
|
| 24. |
VOE11706111
|
[0002] |
Door Window
|
|
| |
VOE4856367
|
[0001] |
Door
|
V
|
| |
VOE4763966
|
[0002] |
Side window
|
|
| 25. |
VOE784555
|
[REQ] |
Clamping strip
|
L=2050
|
| |
VOE4951714
|
[REQ] |
Clamping strip
|
L=2050
|
| 26. |
VOE795464
|
[REQ] |
Profile
|
L=2050
|
| 27. |
VOE4854509
|
[0002] |
Roller
|
SER NO 3880-
|
| 28. |
VOE942290
|
[0002] |
Retaining ring bolt
|
SER NO 3880-
|
| 29. |
VOE13951669
|
[0002] |
Retaining ring
|
SER NO 3880-
|
| 30. |
|
[0002] |
Anchorage
|
SER NO 3880-
|
| |
|
|
None
|
|
