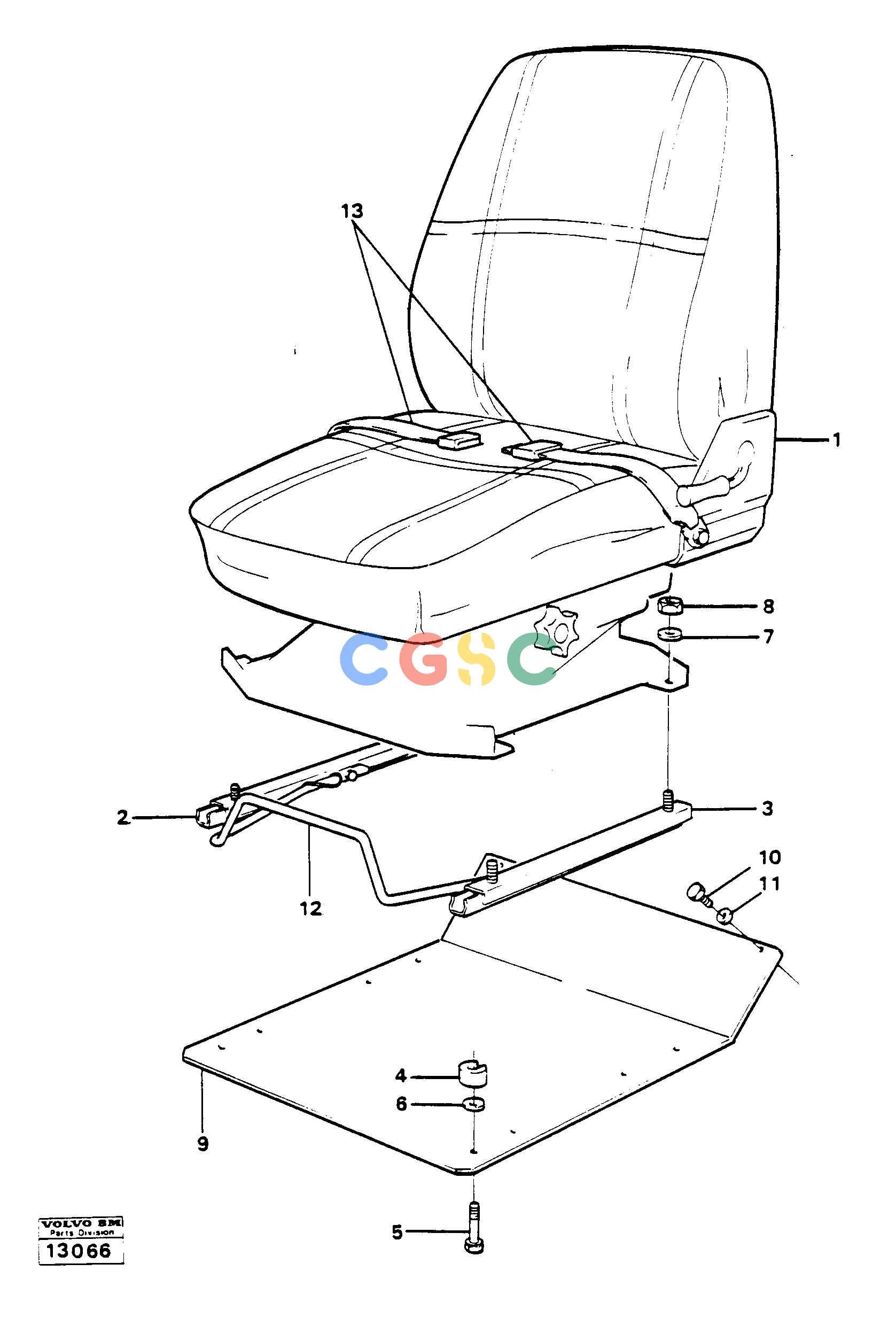

沃尔沃零件查询4300 Operator seat with fitting parts4300 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
965 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE959224
|
[0004] |
Hex. socket screw
|
|
| 6. |
VOE925760
|
[0008] |
Washer
|
|
| 7. |
VOE13955894
|
[0004] |
Washer
|
|
| 8. |
VOE955782
|
[0004] |
Hexagon nut
|
|
| 9. |
VOE4850968
|
[0001] |
Attaching Plate
|
|
| 1. |
VOE4787457
|
[0001] |
Drivers seat
|
|
| 10. |
VOE13955294
|
[0007] |
Screw
|
|
| |
|
|
None
|
|
| 11. |
VOE13955894
|
[0007] |
Washer
|
|
| 12. |
VOE4781513
|
[0001] |
Brace
|
|
| |
VOE4787456
|
[0001] |
Operator's Seat
|
ERS AV 4881349
|
| 13. |
VOE11005882
|
[0001] |
Hip Belt
|
|
| |
|
|
None
|
|
| |
VOE4881055
|
[0001] |
Seat
|
|
| |
|
|
None
|
ERS AV 4881349
|
| 2. |
VOE4787378
|
[0001] |
Slide rail
|
H
|
| 3. |
VOE4787379
|
[0001] |
Slide rail
|
V
|
| 4. |
VOE4740564
|
[0004] |
Washer
|
|
