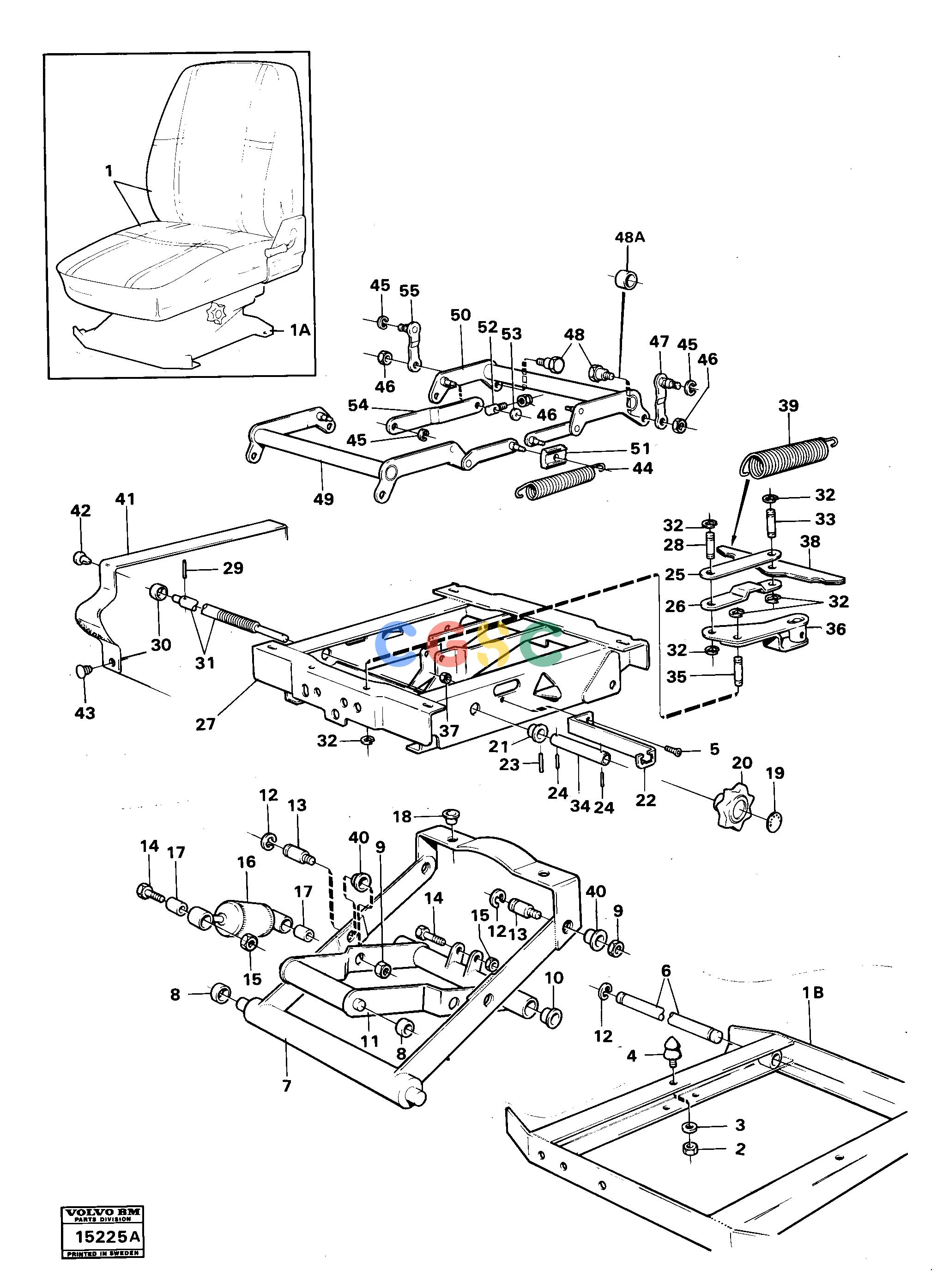

沃尔沃零件查询4300 Seat suspension43004787456-4881055NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1001 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE13941907
|
[0002] |
Washer
|
|
| 46. |
VOE946036
|
[0008] |
Lock nut
|
|
| 47. |
VOE1518750
|
[0002] |
Link
|
|
| 48. |
VOE1518752
|
[0004] |
Screw
|
|
| 48A. |
VOE1695100
|
[0004] |
Bushing
|
|
| 49. |
VOE6643757
|
[0001] |
Arm
|
|
| 50. |
VOE6643758
|
[0001] |
Arm
|
|
| 51. |
VOE11000161
|
[0002] |
Washer
|
|
| 52. |
VOE11987564
|
[0004] |
Eye bolt
|
|
| 53. |
VOE6643759
|
[0004] |
Lock washer
|
|
| 54. |
VOE6643760
|
[0002] |
Pull rod
|
|
| 55. |
VOE1518755
|
[0002] |
Link
|
|
| 4. |
VOE1517507
|
[0002] |
Stop, Shoulder
|
|
| 5. |
|
[0001] |
Bolt
|
|
| 6. |
VOE1517488
|
[0001] |
Shaft
|
|
| 7. |
|
[0001] |
Lever
|
|
| 1. |
|
[0001] |
Seat
|
|
| 8. |
VOE1517489
|
[0004] |
Roller
|
|
| 9. |
VOE13971083
|
[0004] |
Lock nut
|
|
| 10. |
VOE1517490
|
[0002] |
Bushing
|
|
| 11. |
|
[0001] |
Lever
|
|
| 12. |
VOE951671
|
[0006] |
E-circlip
|
|
| 13. |
VOE1695665
|
[0004] |
Bolt
|
|
| 14. |
VOE60111880
|
[0002] |
Hexagon screw
|
|
| 15. |
VOE946036
|
[0002] |
Lock nut
|
|
| 16. |
VOE6212773
|
[0001] |
Shock absorber
|
|
| |
VOE1697183
|
|
Shock absorber
|
|
| 1A. |
|
[0001] |
Seat suspension
|
|
| 17. |
VOE1517506
|
[0001] |
Bushing
|
|
| |
VOE6212629
|
|
Bushing
|
|
| 18. |
VOE3090571
|
[0002] |
Bushing
|
|
| 19. |
VOE6643747
|
[0001] |
Schematic
|
|
| 20. |
VOE6643748
|
[0001] |
Steering wheel
|
|
| 21. |
VOE12705168
|
[0001] |
Bushing
|
|
| 22. |
VOE6643749
|
[0001] |
Bracket
|
|
| 23. |
VOE951946
|
[0001] |
Spring pin
|
|
| 24. |
VOE951947
|
[0002] |
Spring pin
|
|
| 25. |
VOE1518696
|
[0001] |
Link
|
|
| 1B. |
|
[0001] |
Bottom frame
|
|
| 26. |
VOE11000072
|
[0001] |
Link
|
|
| 27. |
|
[0001] |
Frame
|
|
| 28. |
VOE1695665
|
[0001] |
Bolt
|
|
| 29. |
VOE907195
|
[0001] |
Pin
|
|
| 30. |
VOE1518342
|
[0001] |
Thrust Bearing
|
|
| 31. |
VOE3090568
|
[0001] |
Shaft
|
|
| 32. |
VOE13966237
|
[0006] |
Retaining ring
|
|
| 33. |
VOE13964857
|
[0001] |
Clevis pin
|
|
| 34. |
VOE6643750
|
[0001] |
Shaft
|
|
| 35. |
VOE1695670
|
[0001] |
Bolt
|
|
| 2. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 36. |
VOE1517495
|
[0001] |
Lever
|
|
| 37. |
|
[0001] |
Nut
|
|
| 38. |
VOE1517497
|
[0001] |
Yoke
|
|
| 39. |
VOE11000147
|
[0002] |
Spring
|
|
| 40. |
VOE6643751
|
[0004] |
Bushing
|
|
| 41. |
VOE6643752
|
[0001] |
Bellows
|
|
| 42. |
VOE6643753
|
[0002] |
Knob
|
|
| 43. |
VOE6643754
|
[0004] |
Knob
|
|
| 44. |
VOE1518749
|
[0002] |
Spring
|
|
| 45. |
VOE13966237
|
[0006] |
Retaining ring
|
|
