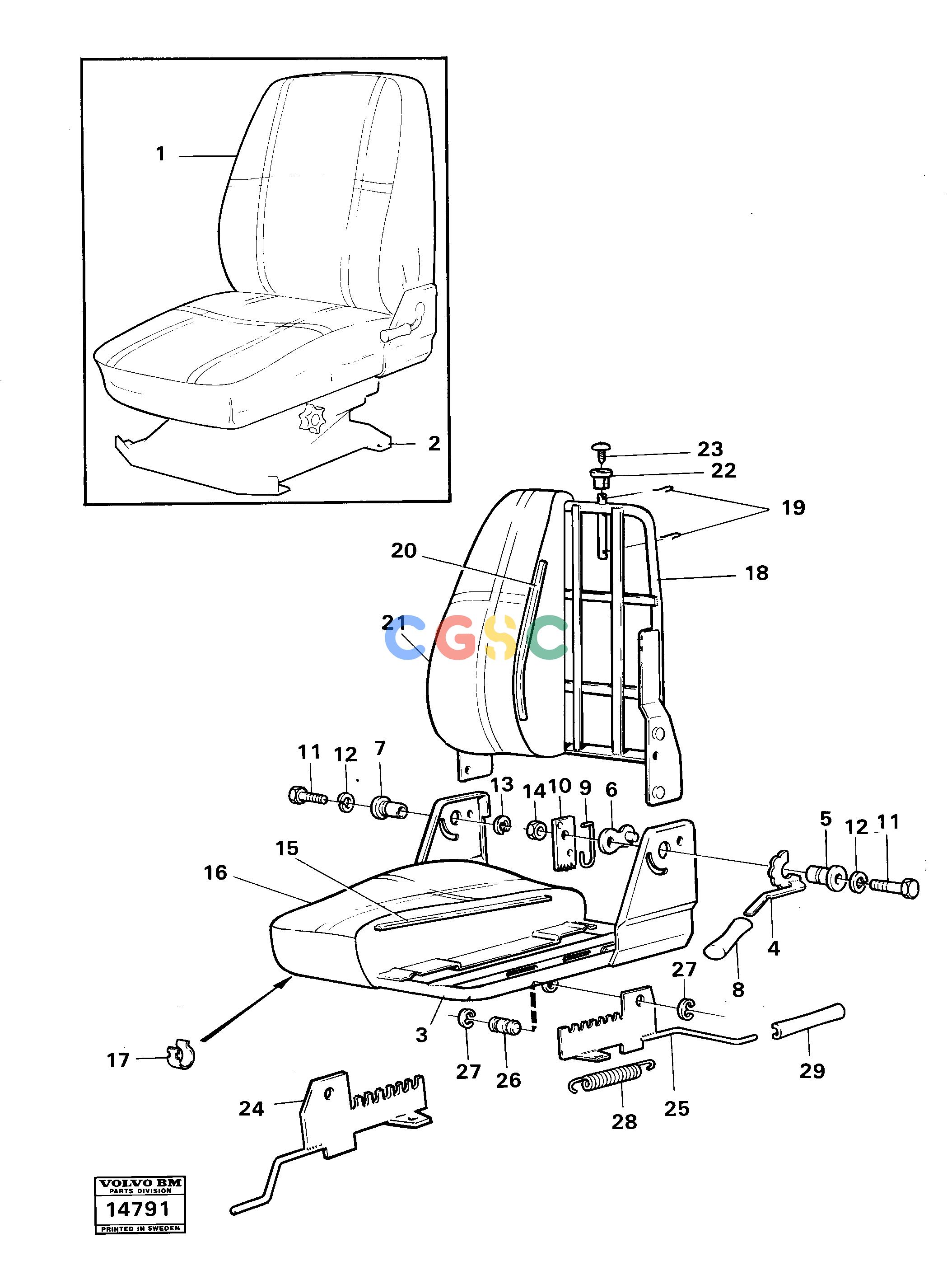

沃尔沃零件查询4300 Operator's seat43004787456-4787457NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
800 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE6210042
|
[0001] |
Cushion
|
|
| |
VOE6643761
|
|
Seat
|
|
| 3. |
|
[0001] |
Seat frame
|
|
| 4. |
VOE11000159
|
[0001] |
Lever
|
|
| 5. |
VOE1518762
|
[0001] |
Pivot pin
|
|
| 1. |
VOE4787456
|
[0001] |
Operator's Seat
|
ERS AV 4881055
|
| 6. |
VOE11000163
|
[0001] |
Link
|
|
| 7. |
VOE11000162
|
[0001] |
Pivot pin
|
|
| 8. |
VOE1518756
|
[0001] |
Knob
|
|
| 9. |
VOE1518760
|
[0001] |
Spring
|
|
| 10. |
VOE11000164
|
[0001] |
Guide plate
|
|
| 11. |
VOE940132
|
[0002] |
Hexagon screw
|
|
| 12. |
VOE940280
|
[0002] |
Spring washer
|
|
| 13. |
VOE6643763
|
[0001] |
Retaining ring
|
|
| 14. |
VOE971081
|
[0001] |
Hexagon nut
|
|
| 15. |
VOE1585368
|
[0001] |
Heater
|
|
| |
VOE4787457
|
|
Drivers seat
|
ERS AV 4787456
|
| 16. |
VOE6643764
|
[0001] |
Seat cover
|
|
| 17. |
VOE11000167
|
[0023] |
Clamp
|
|
| |
VOE6210044
|
[0001] |
Backrest cushion
|
|
| |
VOE6643765
|
|
Backrest cushion
|
|
| 18. |
|
[0001] |
Backrest frame
|
|
| 19. |
VOE11000165
|
[0002] |
Clamp
|
|
| 20. |
VOE1576709
|
[0001] |
Cooling element
|
|
| 21. |
VOE6643766
|
[0001] |
Upholstery
|
|
| 22. |
VOE11000166
|
[0002] |
Guide
|
|
| 23. |
VOE6643754
|
[0002] |
Knob
|
|
| |
VOE4881055
|
|
Seat
|
ERS AV 4881349
|
| 24. |
VOE6643755
|
[0001] |
Guide plate
|
|
| 25. |
VOE6643756
|
[0001] |
Guide plate
|
|
| 26. |
VOE11000160
|
[0002] |
Pivot pin
|
|
| 27. |
VOE13966237
|
[0004] |
Retaining ring
|
|
| 28. |
VOE1518748
|
[0001] |
Spring
|
|
| 29. |
VOE1518747
|
[0002] |
Knob
|
|
| 2. |
|
[0001] |
Seat suspension
|
|
