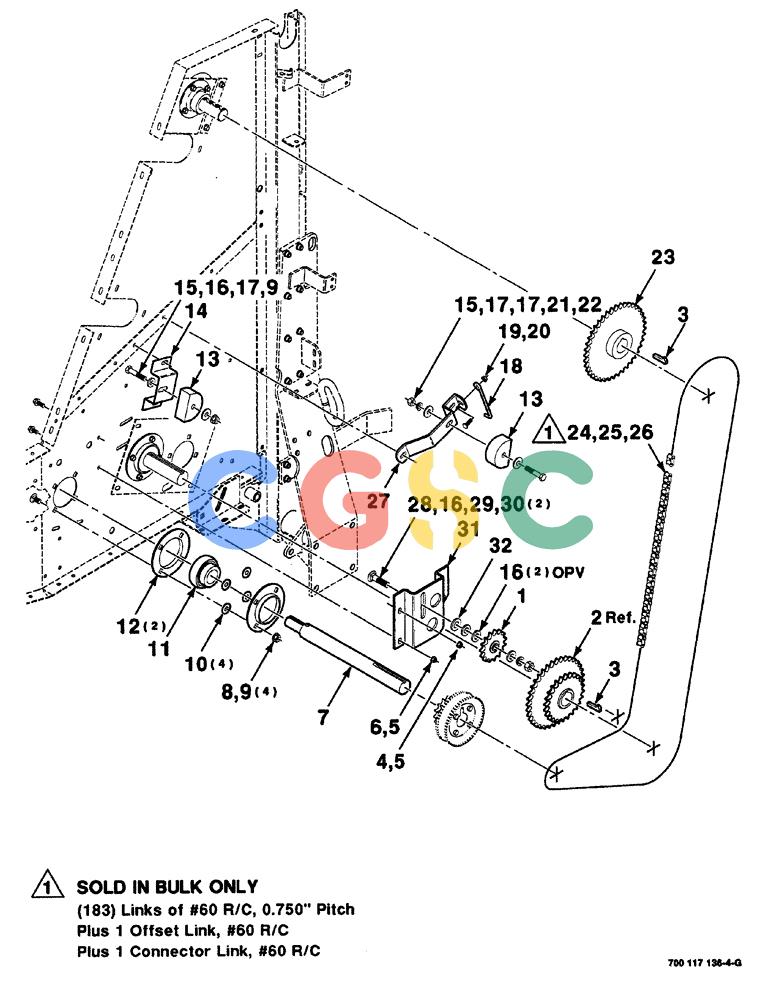

| 1. |
541857R92
|
[1] |
SPROCKET,15T
|
IH
idler, 15 tooth
|
| 2. |
700101757
|
[1] |
SPROCKET
|
L
SPROCKET, WA, double, 24 and 36 tooth
|
| 3. |
Q3947
|
[2] |
KEY,Gib, 3/8" Sq x 1 1/2"
|
IH
|
| 4. |
409-7616
|
[1] |
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
|
CAS
Superseded by part number: 9706726
|
| 5. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 6. |
409-7612
|
[1] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
Superseded by part number: 72187187, 255918
|
| 7. |
700101760
|
[1] |
SHAFT
|
HFI
|
| 8. |
433-816
|
[4] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5
|
CAS
BOLT round head square neck, 1/2"-13 x 1" Superseded by part number: 280486
|
| 9. |
231-5148
|
[5] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 10. |
7852213
|
[4] |
SHIM
|
HFI
|
| . . |
582815R91
|
[1] |
BEARING
|
IH
Bearing Assy. Superseded by part number: 594396R91
|
| 11. |
582816R11
|
[1] |
COLLAR
|
IH
BEARING spherical Superseded by part number: 47577169
|
| 12. |
50583
|
[2] |
FLANGED BEARING
|
IH
bearing Superseded by part number: 86979948
|
| 13. |
760728
|
[2] |
BLOCK ASSY.
|
L
tightener
|
| 14. |
700136454
|
[1] |
STRAP
|
HFI
|
| 15. |
413-840
|
[2] |
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
|
CAS
SCREW hex cap, 1/2"-13 x 2-1/2" Superseded by part number: 87972
|
| 16. |
705541
|
[5] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
hardened plain, 1/2"
|
| 17. |
495-21056
|
[3] |
WASHER,1/2"
|
CAS
wide plain, 1/2" Superseded by part number: 72187265, 80700
|
| 18. |
700132337
|
[1] |
RETAINER
|
HFI
|
| 19. |
434-616
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
|
CAS
Superseded by part number: 80280503
|
| 20. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
lock, hex flange top, 3/8"-16, GR/G Superseded by part number: 86521609
|
| 21. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 22. |
425-108
|
[1] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 23. |
700101759
|
[1] |
SPROCKET
|
L
SPROCKET, 39 tooth
|
| 24. |
241-1316
|
[1] |
LINK,19.05mm Pitch
|
CAS
CHAIN roller, #60, 10 foot bulk
|
| 25. |
241-1716
|
[1] |
LINK,19.05mm Pitch
|
CAS
HALF LINK offset, #60 R/C
|
| 27. |
700117171
|
[1] |
MOUNTING PARTS
|
HFI
idler
|
| 28. |
433-1032
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5
|
CAS
round head square neck, 5/8"-11 x 2-1/2" Superseded by part number: 280742
|
| 29. |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 30. |
425-1010
|
[2] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 31. |
700101764
|
[1] |
SUPPORT
|
CAS
MOUNT tightener
|
| 32. |
705566
|
[1] |
WASHER
|
IH
hardened plain, 3/4"
|
