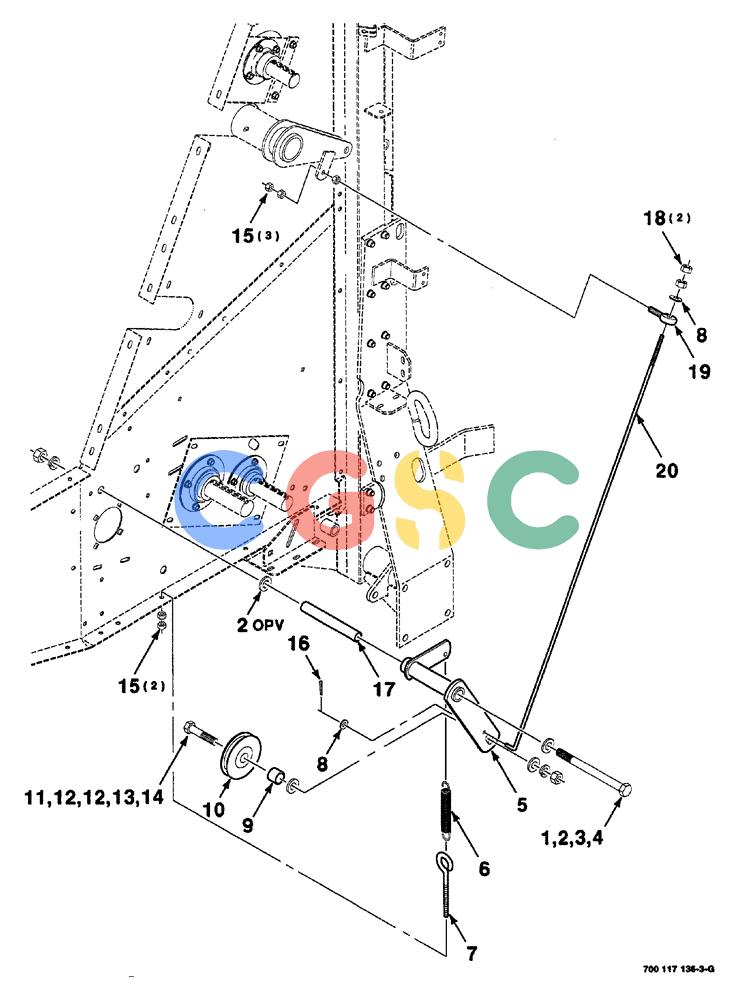

凯斯零件查询(8420) - CASE IH ROUND BALER (1/88-12/00) (02-12) - DRIVE ASSEMBLY (PICKUP BELT TIGHTENER) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
761 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-12120
|
[1] |
BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5
|
CAS
BOLT hex, 3/4"-10 x 7-1/2" Superseded by part number: 281036
|
| 2. |
705566
|
[2] |
WASHER
|
IH
hardened plain, 3/4"
|
| 3. |
492-11075
|
[1] |
LOCK WASHER,3/4"
|
CAS
3/4" Superseded by part number: 87340
|
| 4. |
425-1012
|
[1] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| 5. |
700101753
|
[1] |
ARM
|
CAS
ARM idler
|
| 6. |
758789
|
[1] |
COIL SPRING
|
L
tension
|
| 7. |
51200285
|
[1] |
SCREW
|
CAS
EYEBOLT
|
| 8. |
496-21034
|
[2] |
WASHER,11/32" x 11/16" x 0.89", HDN
|
CAS
Superseded by part number: 86637953
|
| 9. |
6484257
|
[1] |
SPACER
|
CAS
|
| 10. |
662958R91
|
[1] |
PULLEY
|
IH
IDLER flat
|
| 11. |
413-1048
|
[1] |
BOLT,Hex, 5/8" - 11 x 3", Gr 5
|
CAS
Superseded by part number: 87338
|
| 12. |
396-21066
|
[2] |
WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk
|
CAS
5/8" bolt size Superseded by part number: 87613283
|
| 13. |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| 14. |
425-1010
|
[1] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 15. |
425-106
|
[5] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 16. |
432-812
|
[1] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 17. |
700101763
|
[1] |
SPACER
|
HFI
SPACER
|
| 18. |
425-105
|
[2] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 19. |
296608
|
[1] |
BOLT,3/8" - 16 x 2"
|
CAS
eye
|
| 20. |
700101729
|
[1] |
ROD
|
L
declutcher
|
