| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

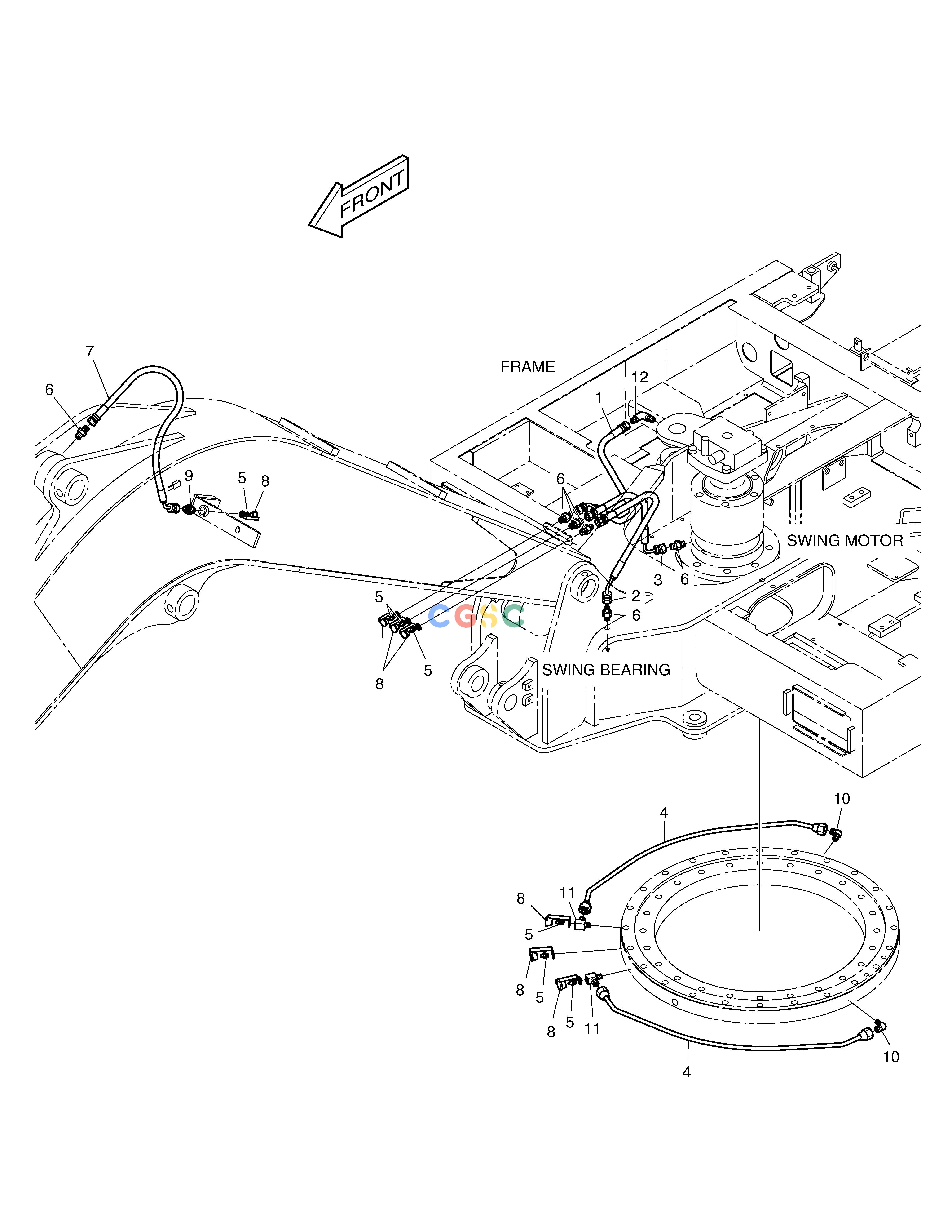

| -. | 400-01087 | [-] | GREASE PIPING | |
| 1. | 2184-1060D15 | [1] | HOSE PF1/4-800L | |
| 10. | 2181-1925 | [2] | ELBOW | |
| 11. | 2181-2527 | [2] | TEE | |
| 12. | 2181-1186D12 | [1] | ELBOW | |
| 2. | 2184-1060D156 | [1] | HOSE PF1/4-600L | |
| 3. | 2184-1046D69 | [1] | HOSE | |
| 4. | 140-00642 | [2] | PIPE | |
| 5. | S6710042 | [7] | NIPPLE;GREASE | |
| 6. | 2181-1110D30 | [6] | ADAPTER | |
| 7. | 2184-1060D49 | [1] | HOSE PF1/4-530L | |
| 8. | 160-00020 | [7] | CAP | |
| 9. | 2181-1110D1 | [1] | ADAPTER |
