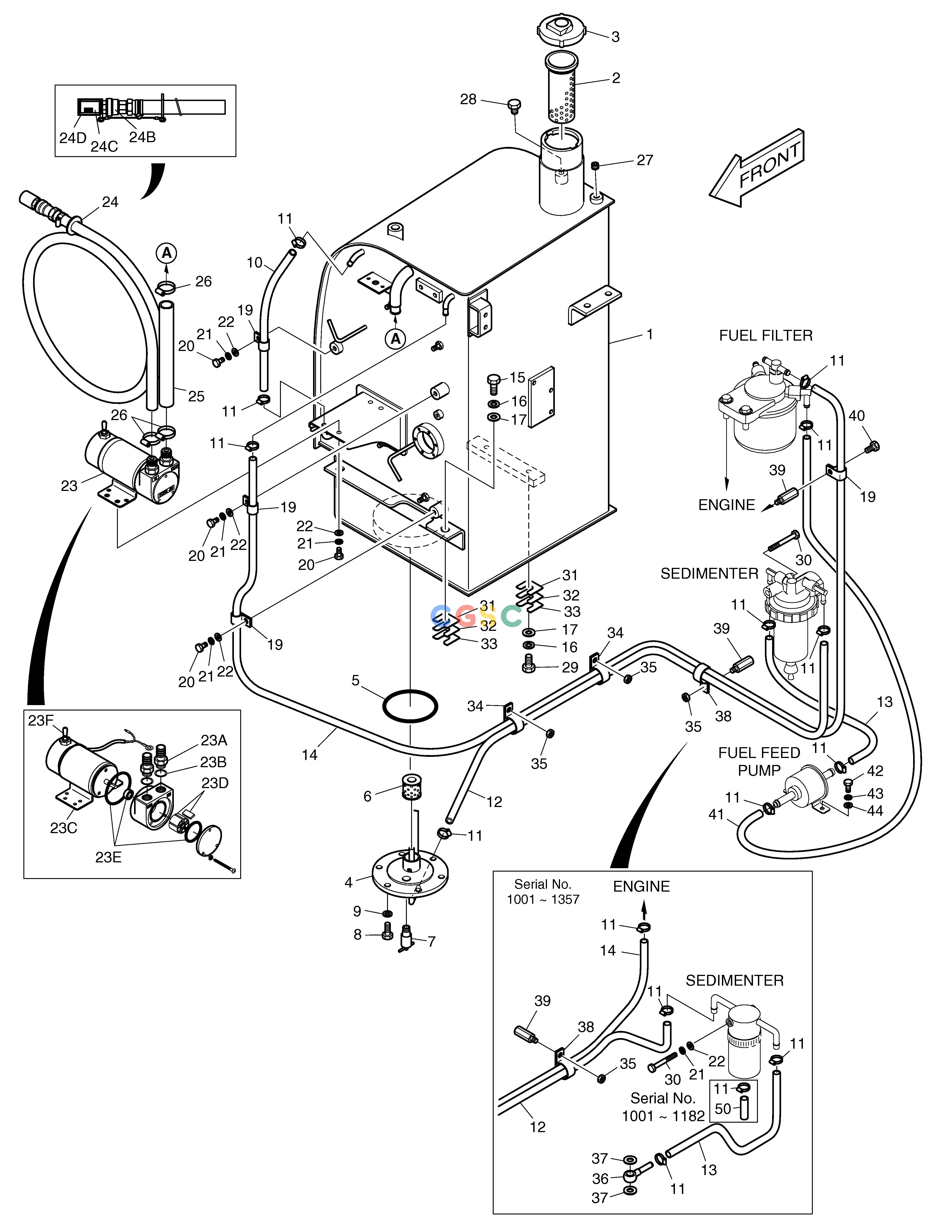

斗山零件查询FUEL TANK ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
968 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
470-00162
|
[-] |
FUEL TANK ASS'Y
|
|
| -. |
470-00528
|
[-] |
FUEL TANK ASS'Y
|
|
| -. |
470-00528A
|
[-] |
FUEL TANK ASS'Y
|
|
| 1. |
470-00119A
|
[1] |
TANK;FUEL
|
|
| 1. |
470-00119B
|
[1] |
TANK;FUEL
|
|
| 10. |
185-00376
|
[1] |
HOSE;FUEL LEVEL
|
|
| 11. |
2124-1024D1
|
[11] |
CLAMP;HOSE
|
|
| 11. |
2124-1024D1
|
[10] |
CLAMP;HOSE
|
|
| 12. |
2185-1247D132
|
[1] |
HOSE 2700L
|
|
| 12. |
2185-1247D137
|
[1] |
HOSE
|
DS2105022
|
| 12. |
DS2105022
|
[1] |
HOSE
|
|
| 13. |
2185-1247D19
|
[2] |
HOSE
|
|
| 13. |
2185-1247D119
|
[1] |
HOSE;FUEL
|
DS2105011
|
| 13. |
DS2105011
|
[1] |
HOSE;FUEL
|
|
| 14. |
2185-1247D150
|
[1] |
HOSE
|
|
| 14. |
DS2079154
|
[1] |
HOSE 4400L
|
DS2105028
|
| 14. |
DS2105028
|
[1] |
HOSE
|
|
| 15. |
S0515253
|
[2] |
. BOLT
|
|
| 16. |
S5102703
|
[4] |
WASHER
|
|
| 17. |
2114-1058D54
|
[4] |
WASHER
|
|
| 19. |
2124-1353D3
|
[3] |
CLIP
|
|
| 19. |
2124-1353D3
|
[4] |
CLIP
|
|
| 2. |
2471-9010A
|
[1] |
FILTER
|
|
| 20. |
S0508653
|
[7] |
BOLT
|
|
| 21. |
S5102503
|
[8] |
. WASHER
|
|
| 22. |
S5010513
|
[8] |
WASHER
|
|
| 23. |
2401-1276A
|
[1] |
PUMP;FUEL
|
|
| 23A. |
2181-2755B
|
[2] |
. ADAPTER
|
|
| 23B. |
S8180321
|
[2] |
. RING,SEAL
|
|
| 23C. |
523-00001
|
[1] |
MOTOR;FUEL TRANSFER
|
|
| 23D. |
407-00001
|
[1] |
. VANE KIT
|
|
| 23E. |
2401-1276KT
|
[1] |
. SEAL KIT
|
|
| 23F. |
2549-9096
|
[1] |
SWITCH;TOGGLE
|
|
| 24. |
185-00167D4
|
[1] |
HOSE ASS'Y 2000L
|
|
| 24B. |
2420-1258
|
[1] |
. VALVE,CHECK
|
|
| 24C. |
2471-1152
|
[1] |
. STRAINER
|
|
| 24D. |
2160-1336
|
[1] |
. CAP,STRAINER
|
|
| 25. |
2185-1247D143
|
[1] |
HOSE
|
|
| 26. |
2124-1024D6
|
[3] |
BAND 3
|
|
| 27. |
2181-1116D2
|
[1] |
PLUG
|
|
| 28. |
S0514653
|
[1] |
BOLT M12X1.75X16
|
|
| 29. |
S0560453
|
[2] |
BOLT M12X1.75X35
|
|
| 3. |
2188-9006A
|
[1] |
CAP;FUEL
|
|
| 30. |
S0556853
|
[1] |
BOLT M8X1.25X75
|
|
| 31. |
2114-1802
|
[4] |
SHIM
|
|
| 32. |
2114-1803
|
[4] |
SHIM PL0.6
|
|
| 33. |
2114-1804
|
[4] |
SHIM
|
|
| 34. |
2124-1353D7
|
[3] |
CLIP
|
|
| 34. |
2124-1353D7
|
[2] |
CLIP
|
|
| 35. |
2121-1305
|
[5] |
NUT
|
|
| 35. |
2121-1305
|
[4] |
NUT
|
|
| 35. |
2121-1305
|
[3] |
NUT
|
|
| 36. |
2181-9015
|
[1] |
PIPE;FUEL
|
|
| 37. |
S8180221
|
[2] |
RING;SEAL
|
|
| 38. |
124-00209D1
|
[2] |
CLIP
|
|
| 39. |
2120-2187
|
[2] |
BOLT
|
|
| 4. |
2473Y1050B
|
[1] |
COVER
|
|
| 40. |
120-00276
|
[1] |
BOLT M8X1.25X12
|
|
| 41. |
2185-1247D142
|
[1] |
HOSE
|
DS2105014
|
| 41. |
DS2105014
|
[1] |
HOSE;FUEL
|
|
| 42. |
S0504553
|
[2] |
BOLT
|
|
| 43. |
S5102303
|
[2] |
. WASHER
|
|
| 44. |
S5010313
|
[2] |
WASHER
|
|
| 5. |
S8011050
|
[1] |
O-RING
|
|
| 50. |
2185-1247D151
|
[1] |
HOSE
|
|
| 6. |
2471-1004B
|
[1] |
FILTER
|
|
| 7. |
2186-9001
|
[1] |
COCK
|
|
| 8. |
S0512053
|
[6] |
BOLT
|
|
| 9. |
S5102603
|
[6] |
. WASHER
|
|
