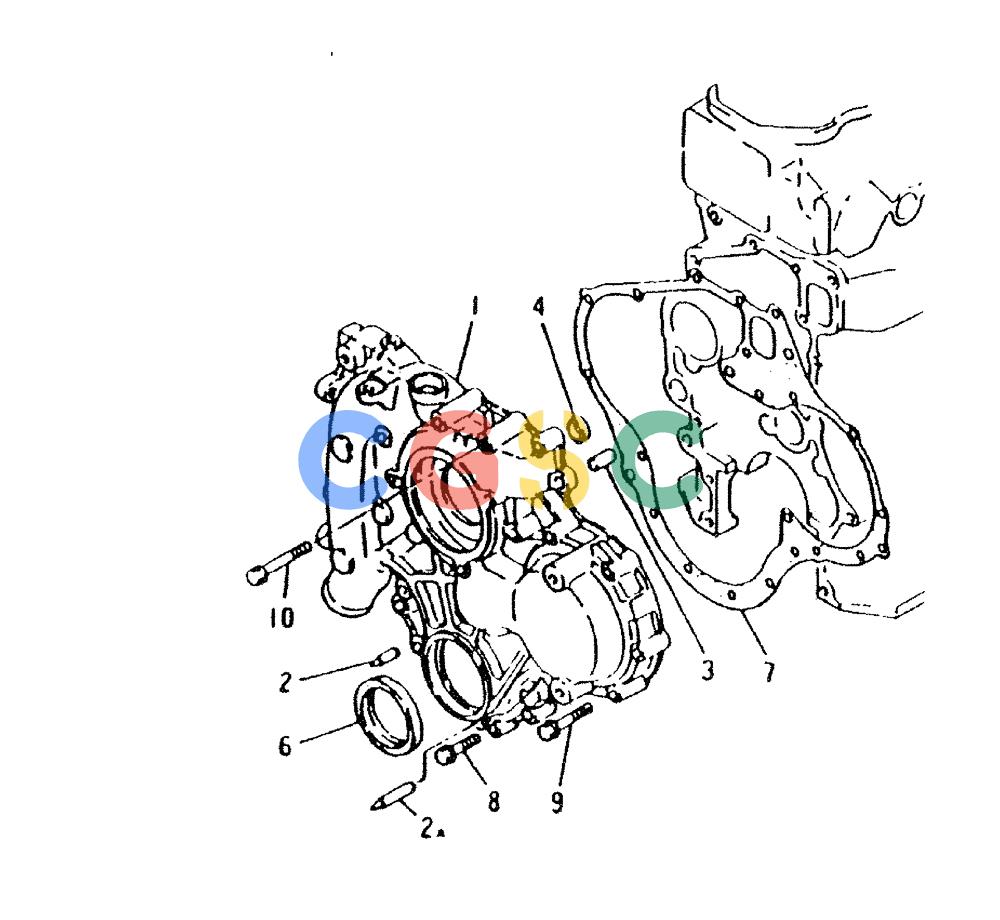

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-005) - TIMING GEAR CASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
519 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME011653 | [1] | TIMING GEAR CASE ASSY | |
| 1. | VAME011655 | [1] | CASE | KOBCASE, TIMING GEAR Superseded by part number: VAME013244 |
| 2. | VAME011768 | [1] | POINTER | |
| 2A. | VAME011767 | [1] | POINTER | |
| 3. | VAMF472406 | [1] | PIN | KOBPIN, DOWEL 12 |
| 4. | VAMS666136 | [1] | PLUG | KOBCAP, SEARING 22 |
| 6. | VAME024156 | [1] | OIL SEAL | KOBOILSEAL, FR |
| 7. | VAME011770 | [1] | GASKET | KOBGASKET, GEAR CASE Superseded by part number: VAME220852 |
| 8. | VAMF140233 | [9] | BOLT | KOBBOLT, FLANGE 8 X 40 |
| 9. | VAMF140236 | [6] | BOLT | KOBBOLT, FLANGE 8 X 55 Superseded by part number: VAMF140235 |
| 10. | VAMF140239 | [2] | BOLT,FLANGE BOL, FLANGE 8 X 70 | BOLT,FLANGE BOL, FLANGE 8 X 70 |
