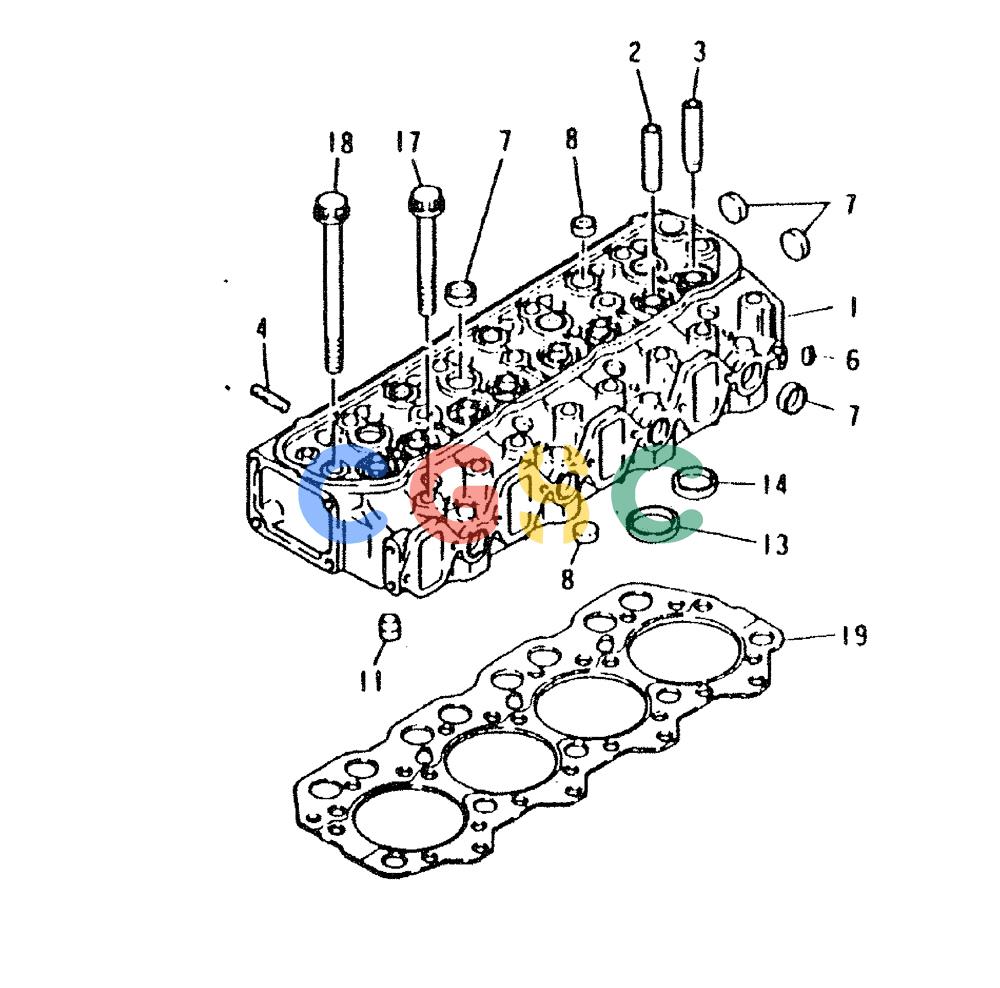

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-006) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
296 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD, CYL |
| 2. | VAME031886 | [4] | GUIDE | KOBGUIDE, VALVE INLET |
| 3. | VAME031888 | [4] | GUIDE | KOBGUIDE, VALVE EXH |
| 4. | VAMH002171 | [8] | STUD | KOBSTUD, EXH MANIF 10 X 25 |
| 6. | VAMS666132 | [4] | CAP | KOBCAP, SEALING 14 |
| 7. | VAMS666138 | [10] | CAP | KOBCAP, SEALING 28 |
| 8. | VAMS666136 | [7] | PLUG | KOBCAP, SEALING 22 |
| 11. | VAME011012 | [1] | GUIDE | KOBDIRECTOR |
| 13. | VAME011058 | [4] | SEAT, VALVE | KOBINSERT, VALVE SEAT INLET Superseded by part number: VAME013297 |
| . . | VAME011057 | [1] | INSERT | KOBSEMI-SIZE |
| 14. | VAME029004 | [4] | SEAT | KOBINSERT, VALVE SEAT EXH Superseded by part number: VAME013188 |
| . . | VAME029005 | [1] | INSERT SEMI-SIZE | INSERT SEMI-SIZE |
| 17. | VAME011015 | [12] | SCREW | KOBBOLT, CYL HEAD 14 X 122 |
| 18. | VAME011016 | [5] | BOLT | KOBBOLT, CYL HEAD 14 X 180 |
| 19. | VAME011045 | [1] | GASKET | KOBGASKET, CYL HEAD Superseded by part number: VAME013326 |
