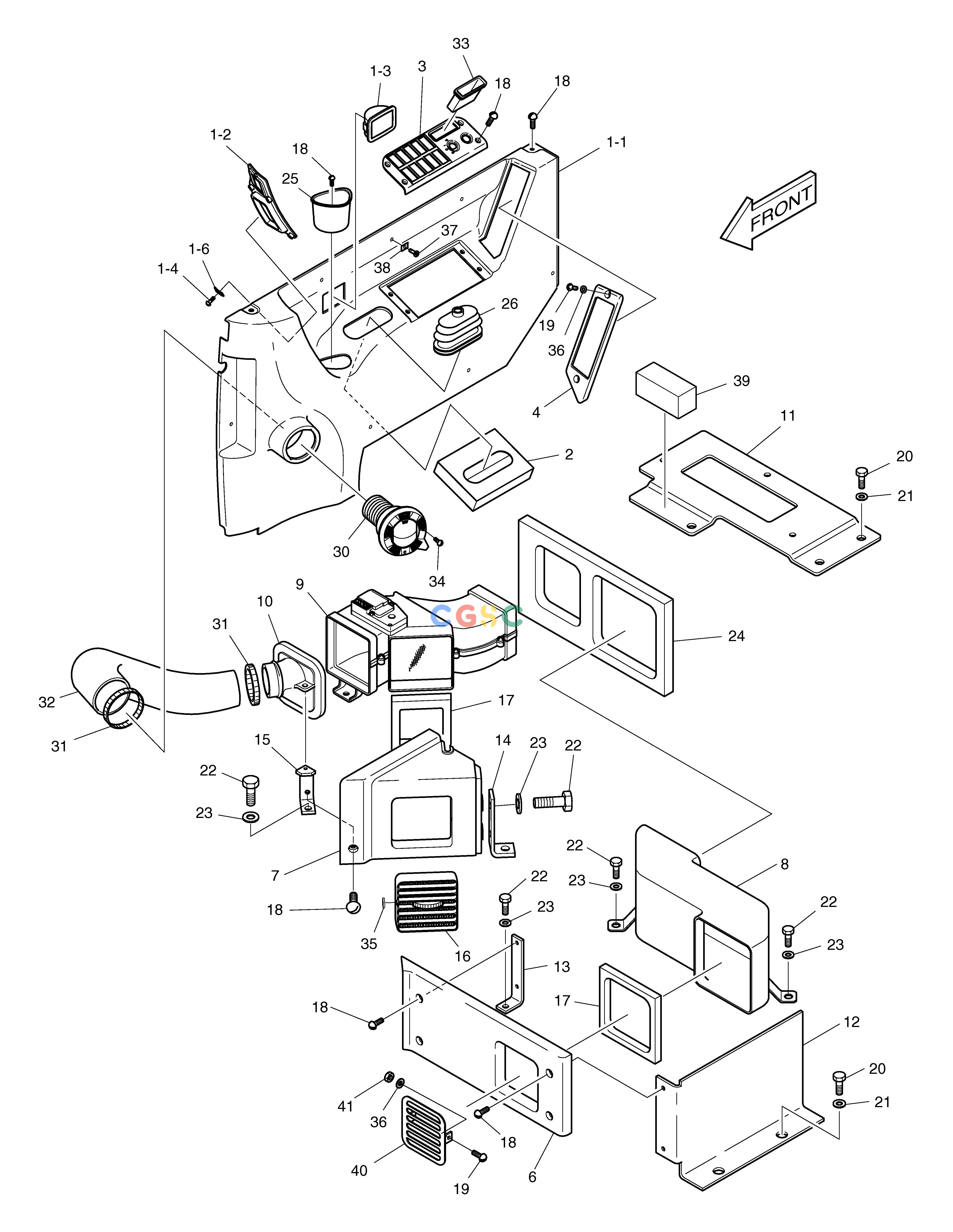

斗山零件查询INTERIOR PANEL ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
947 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00274B
|
[-] |
INTERIOR PANEL ASS'Y
|
|
| -. |
622-00274C
|
[-] |
INTERIOR PANEL ASS'Y
|
|
| 1. |
621-02285B
|
[1] |
PANEL;INTERIOR ASS'Y(R.H.)
|
|
| 1. |
621-02285C
|
[1] |
PANEL;INTERIOR ASS'Y(R.H.)
|
|
| 1-1. |
621-02286B
|
[1] |
PANEL;INTERIOR(R.H.)
|
|
| 1-1. |
621-02286C
|
[1] |
PANEL;INTERIOR(R.H.)
|
|
| 1-2. |
621-01289
|
[1] |
COVER;IP
|
|
| 1-3. |
2906-9005
|
[1] |
ASHTRAY
|
|
| 1-4. |
S3450553
|
[4] |
SCREW M4X0.7X6
|
|
| 1-5. |
S3661233
|
[1] |
SCREW;TAPPING
|
|
| 1-6. |
114-00418
|
[5] |
WASHER;PLATE
|
|
| 10. |
213-00016A
|
[1] |
DUCT;DEFROST
|
|
| 11. |
621-01211A
|
[1] |
PLATE;HEATER
|
|
| 12. |
621-01237B
|
[1] |
PLATE
|
|
| 13. |
159-00120A
|
[1] |
PLATE
|
|
| 14. |
159-00121A
|
[1] |
PLATE
|
|
| 15. |
159-00148A
|
[1] |
PLATE
|
|
| 16. |
2415-1014
|
[1] |
LOUVER;DEF& FOOT
|
|
| 17. |
2161-2398
|
[2] |
RUBBER;CUSHION
|
|
| 18. |
2120-2166D24
|
[18] |
SCREW M6X1.0X20
|
|
| 19. |
2120-2166D8
|
[4] |
BOLT
|
|
| 2. |
161-00520
|
[1] |
PAD;SPONGE
|
|
| 20. |
2120-2166D5
|
[5] |
BOLT
|
|
| 21. |
2114-1898D2
|
[5] |
WASHER
|
|
| 22. |
2120-2166D6
|
[7] |
BOLT
|
|
| 23. |
2114-1898D5
|
[15] |
WASHER
|
|
| 24. |
161-00221
|
[1] |
RUBBER;CUSHION
|
|
| 25. |
621-01259
|
[1] |
HOLDER;CUP
|
|
| 26. |
2160-1332
|
[1] |
BOOT
|
|
| 3. |
621-01250
|
[1] |
COVER;SWITCH
|
|
| 30. |
4415-9006A
|
[1] |
NOZZLE;ROUND
|
|
| 31. |
S3600
|
[2] |
CLAMP;HOSE
|
|
| 32. |
2158-1017D2
|
[1] |
PROTECTOR
|
|
| 33. |
2160-1228
|
[1] |
BUSHING;RUBBER
|
|
| 34. |
S3640343
|
[2] |
SCREW;TAPPING
|
|
| 35. |
2160-1329
|
[1] |
BUSHING
|
|
| 36. |
2114-1898D4
|
[4] |
WASHER
|
|
| 37. |
2120-2174
|
[3] |
SCRIVET
|
|
| 38. |
4627-1633
|
[3] |
CUSHION;RUBBER 2T
|
|
| 39. |
161-00398
|
[1] |
FOAM;CUSHION
|
|
| 4. |
621-01288
|
[1] |
COVER;CASSETTE
|
|
| 40. |
159-00224
|
[1] |
PLATE;NOZZLE
|
|
| 41. |
S4012233
|
[2] |
NUT
|
|
| 6. |
621-01246
|
[1] |
COVER;FRONT
|
|
| 7. |
621-01260
|
[1] |
COVER;DEF
|
|
| 8. |
213-00015
|
[1] |
DUCT;FOOT
|
|
| 9. |
2213-9002
|
[1] |
DUCT;FOOT
|
|
