斗山零件查询LEVER ASS'Y B55W-1 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
454 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

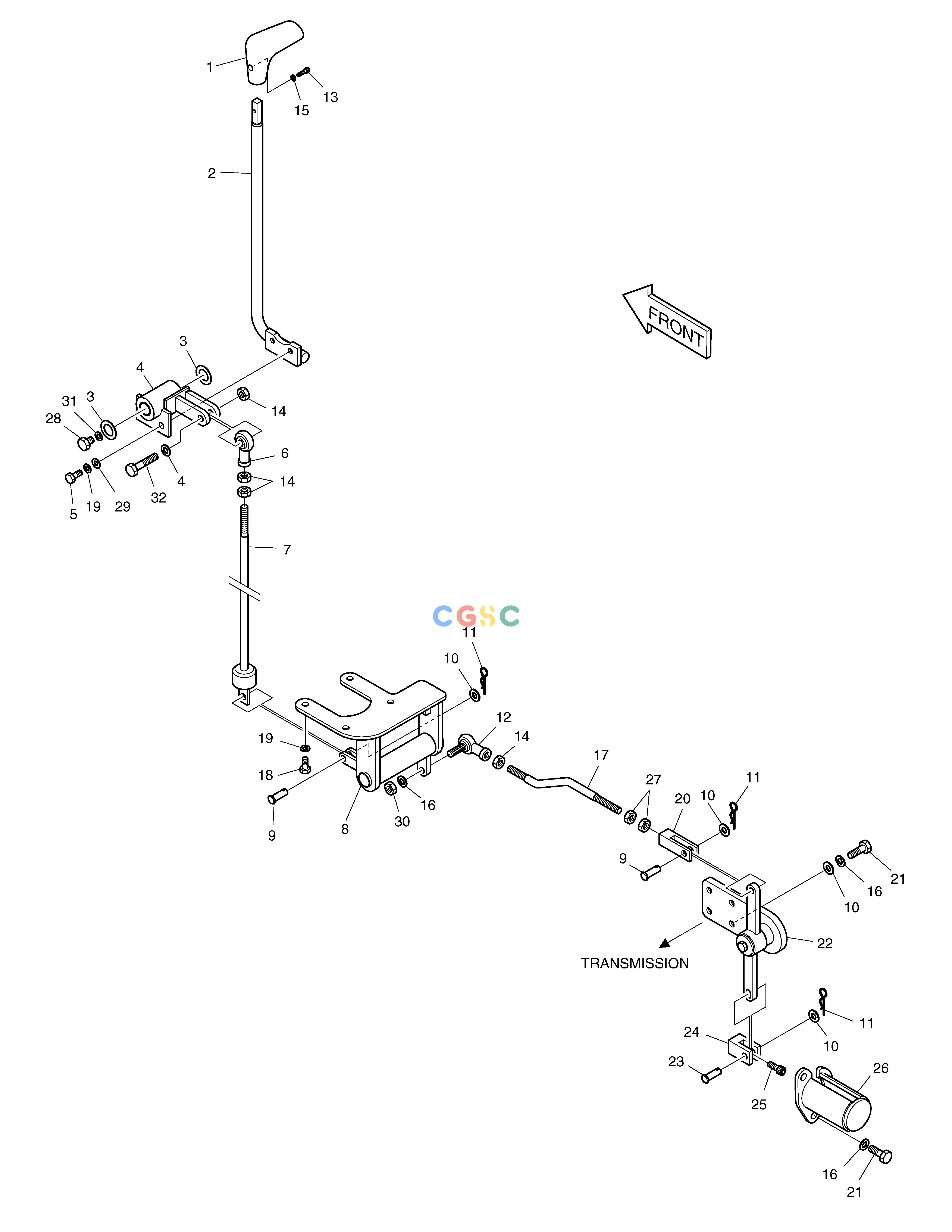

133-00181A
|
[-] |
LEVER ASS'Y
|
|
| 1. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 10. |
S5010613
|
[7] |
WASHER
|
|
| 11. |
2123-1441D4
|
[3] |
PIN
|
|
| 12. |
2138-9017
|
[1] |
BALL;LINK
|
|
| 13. |
S2201766
|
[1] |
BOLT
|
|
| 14. |
S4012633
|
[4] |
NUT
|
|
| 15. |
S5000113
|
[1] |
WASHER
|
|
| 16. |
S5102603
|
[8] |
. WASHER
|
|
| 17. |
136-00015A
|
[1] |
ROD
|
|
| 18. |
S0508753
|
[4] |
BOLT M8X1.25X18
|
|
| 19. |
S5102503
|
[6] |
. WASHER
|
|
| 2. |
133-00173A
|
[1] |
LEVER;MISSION
|
133-00173B
|
| 2. |
133-00173B
|
[1] |
LEVER;MISSION
|
|
| 20. |
2135-1008D8
|
[1] |
END;FORK
|
|
| 21. |
S0558153
|
[6] |
BOLT
|
|
| 22. |
133-00069A
|
[1] |
LEVER ASS'Y
|
|
| 23. |
2123-1057D12
|
[1] |
PIN;JOINT
|
|
| 24. |
123-00126A
|
[1] |
PIN
|
|
| 25. |
S2208861
|
[1] |
BOLT
|
|
| 26. |
621-00741A
|
[1] |
COVER
|
|
| 26. |
621-00741B
|
[1] |
COVER
|
|
| 27. |
S4032633
|
[2] |
NUT
|
|
| 28. |
S0511553
|
[1] |
BOLT M10X1.5X14
|
|
| 29. |
S5010513
|
[2] |
WASHER
|
|
| 3. |
2114-1059D31
|
[2] |
SHIM
|
|
| 30. |
S4500633
|
[1] |
. NUT
|
|
| 31. |
2114-1058D1
|
[1] |
WASHER
|
|
| 32. |
S0558553
|
[1] |
BOLT;HEX.
|
|
| 4. |
133-00178A
|
[1] |
LEVER
|
|
| 5. |
S0508853
|
[2] |
. BOLT
|
|
| 6. |
138-00003
|
[1] |
END;ROD
|
|
| 7. |
136-00051A
|
[1] |
ROD;ASS'Y
|
|
| 8. |
133-00068B
|
[1] |
LEVER ASS'Y
|
|
| 9. |
2123-1057D11
|
[2] |
PIN;JOINT
|
|
