神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-008) - PISTON Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
459 次

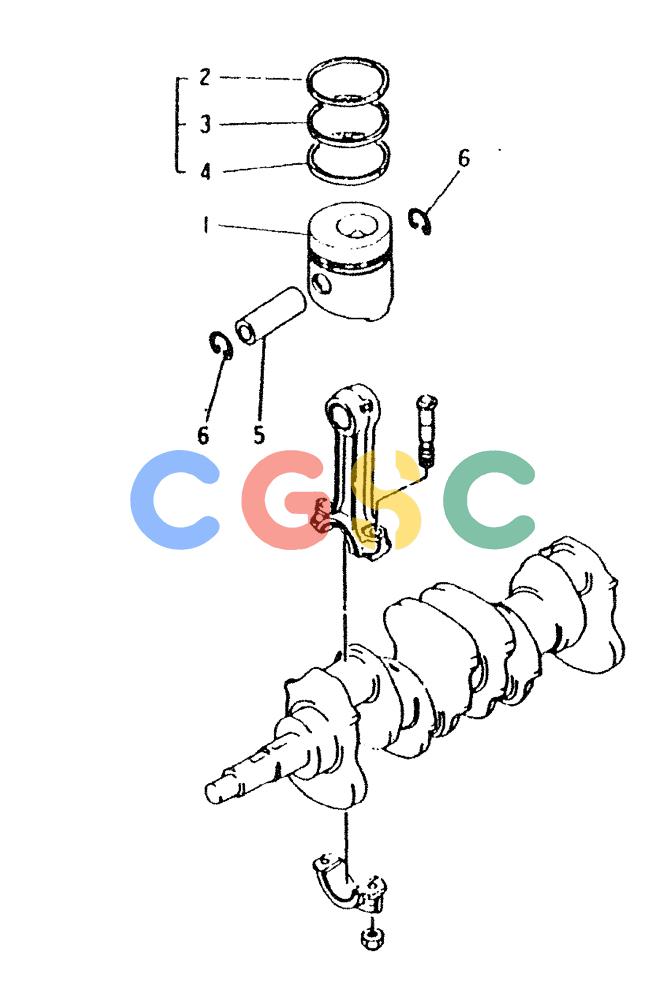

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012858 | [4] | PISTON | KOBPISTON STD |
| . . | VAME012859 | [1] | PISTON | KOBOS 0.25 |
| . . | VAME012860 | [1] | PISTON | KOBOS 0.50 |
| . . | VAME012861 | [1] | PISTON | KOBOS 0.75 |
| . . | VAME012862 | [1] | MANIFOLD OS 1.00 | MANIFOLD OS 1.00 |
| 2-4. | VAME999783 | [1] | PISTON RINGS KIT | KOBONE MODEL STD Superseded by part number: VAME997398 |
| . . | VAME999784 | [1] | OS 0.25 | |
| . . | VAME999785 | [1] | OS 0.50 | |
| . . | VAME999786 | [1] | OS 0.75 | |
| . . | VAME999787 | [1] | OS 1.00 | |
| 2. | NSS | [4] | NOT SOLD SEPARAT | CONRING, COMPRESSION NO. 1 STD, (ME012011) |
| 3. | NSS | [4] | NOT SOLD SEPARAT | CONRING, COMPRESSION NO. 2 STD, (ME0120211) |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONRING, OIL STD, (ME012048) |
| 5. | VAME012009 | [4] | PISTON PIN | KOB |
| 6. | VAME012061 | [6] | SNAP RING | KOB Superseded by part number: VAME015917 |
