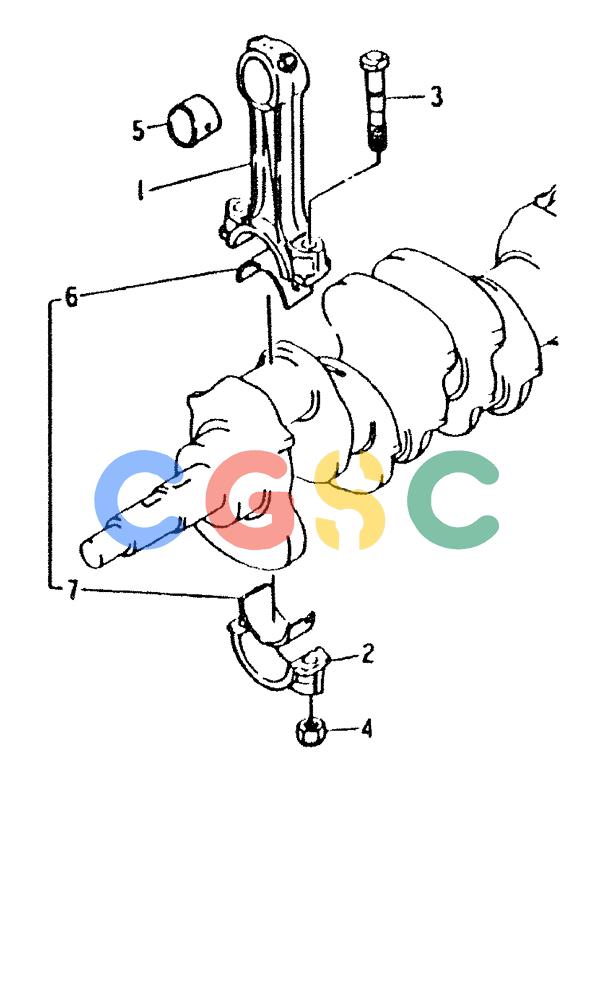

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-009) - CONNECTING ROD AND BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
228 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-5. | VAME012265 | [4] | CONN. ROD SHELL | KOBCONNECTING ROD ASSY |
| 1. | NSS | [4] | NOT SOLD SEPARAT | CONROD, CONNECTING |
| 2. | NSS | [4] | NOT SOLD SEPARAT | CONCAP, CONN-ROD |
| 3. | VAME012232 | [8] | SPECIAL BOLT | KOBBOLT |
| 4. | VAME023570 | [8] | NUT | KOBNUT |
| 5. | VAME012234 | [4] | BUSHING | KOBBUSHING, CONN-ROD |
| 6-7. | VAME999654 | [1] | BEARING SET | KOBCONN-ROD BEARING SET STD |
| . . | VAME999655 | [1] | ROD, BRG-SET US 0.25 | ROD, BRG-SET US 0.25 |
| . . | VAME999656 | [1] | BEARING SET | KOBUS 0.50 Superseded by part number: VAME995150 |
| . . | VAME999657 | [1] | US 0.75 | |
| . . | VAME999658 | [1] | US 1.00 | |
| 6. | NSS | [4] | NOT SOLD SEPARAT | CONBEARING, CONN-ROD UPPER STD, (ME012259) |
| 7. | NSS | [4] | NOT SOLD SEPARAT | CONBEARING, CONN-ROD LOWER STD, (ME012210) |
