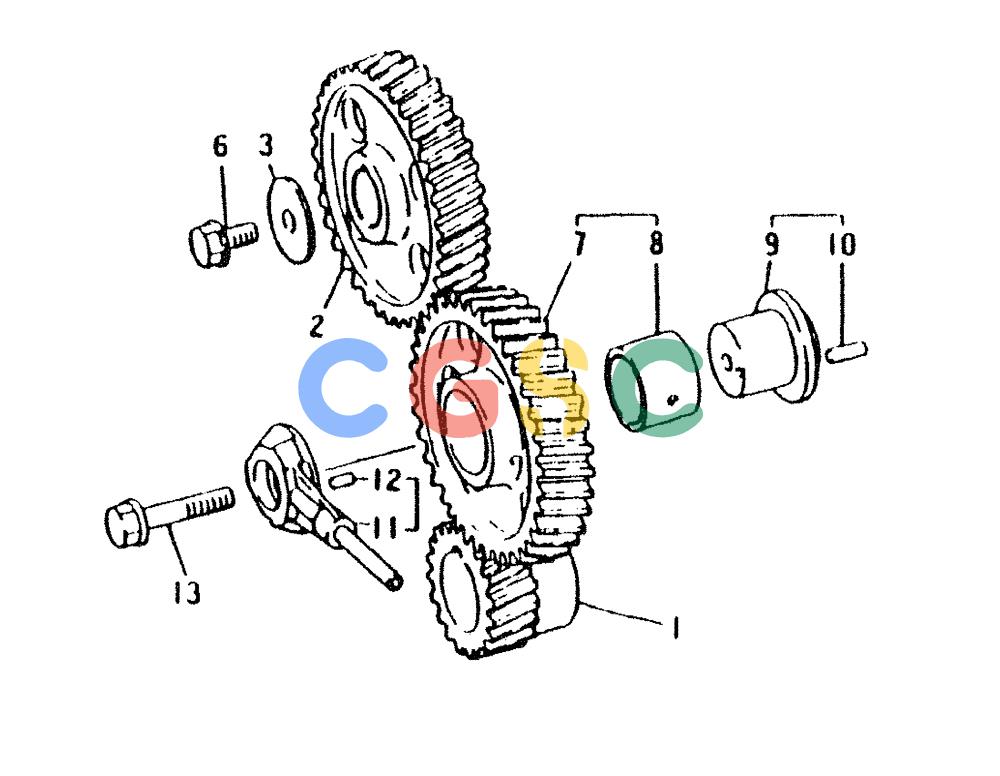

神钢零件查询(4D31-T) - MITSUBISHI DIESEL ENGINE (1/88-12/06) (01-013) - TIMING GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
747 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME012729 | [1] | GEAR | KOBZ=20 |
| 2. | VAME012732 | [1] | DRIVEN GEAR | KOBZ=40 |
| 3. | VAMH005020 | [1] | PLATE | KOBWASHER 44 |
| 6. | VAMF140458 | [1] | BOLT | KOB |
| 7-8. | VAME012750 | [1] | GEAR | KOB |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, IDLER Z=41 |
| 8. | VAME012752 | [1] | BUSHING IDLER | BUSHING IDLER |
| 9-10. | VAME082520 | [1] | IDLER | KOB |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONSHAFT, IDLER |
| 10. | VAMF472571 | [1] | PIN | KOBSPG 5 X 20 |
| 11-12. | VAME012747 | [1] | JET | KOB |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONJET, OIL |
| 12. | VAMH012041 | [1] | PIN | KOBSPG 4 X 10 |
| 13. | VAMH001411 | [1] | SCREW | KOB |
